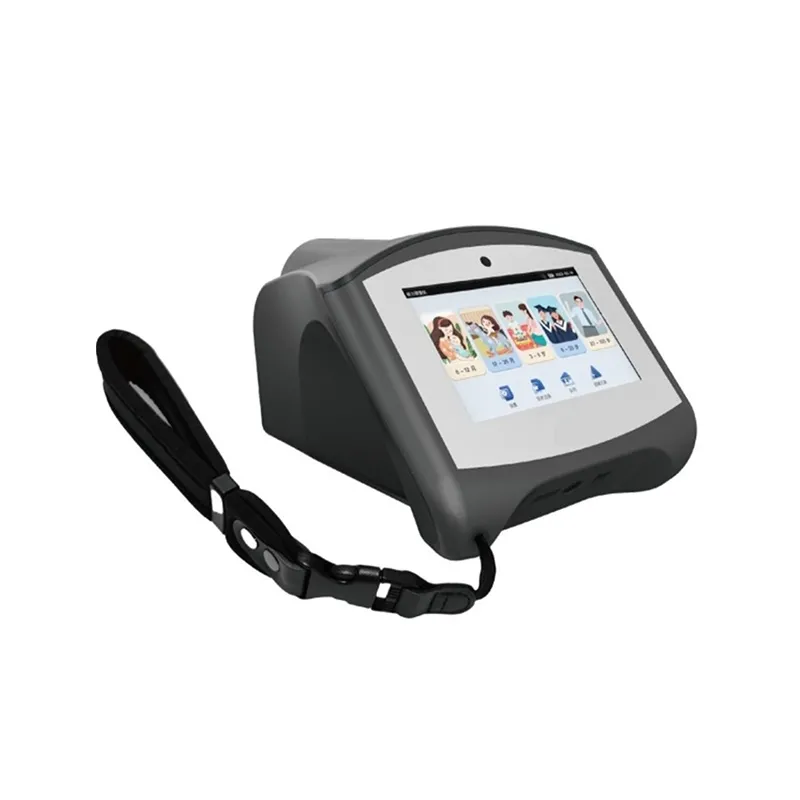

HSP-VS200H Vision Screener
HSP-VS200H Vision Screener

HSP-VS200H Vision Screener

Model: HSP-VS200H

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support



Share:

Main Features

-Non-contact measurementsafe and harmless

-Without pupil dilationchildren are easy to accept

-No strong lightfriendly for the eyes

-Attractive lighting and soundto draw attention

-Support for binocular measurementfast for scanning

-Fixed distance measurementkeep a comfortable distance of 85cm

-Fast capture the pupilshave the results on average for 3s

-Easy to move and carryonly 1.15kg

-Fully automatic inspectionwith 9 kinds of ametropia indications

-Simple and easy to operateand will be learned in 5 minutes

Specification

PARAMETERSPECIFICATION
DSRange:-7.50D~+7.50D
Accuracy:-3.50D~+3.50D,士0.50D
-7.50D~<-3.50D,士1.00D
>+3.50D~+7.50D,士1.00D
Pupil Sizerange:4.0 mm~9.0 mm
accuracy:± 0.4 mm
Measuring modeBinocular mode, monocular mode
Inspection time≤3.0s
DCrange:0.00D~-3.00Daccuracy:士0.50D
Axisrange:0°~180%accuracy: ±5°
Pupil Distancerange:35mm~80 mmAccuracy:士2.0mm
Measuring distance85cm
Scanning characteristicsThe highest scanning speed:>80000 times/second
Scan depth: 2.3mm
Maximum scan range:12mm*9mm
Light source characteristicsCentre wavelength:840nm
Optical power: <750μW
Refractive compensation range:-20D~+25D
