Model: HSP-IR
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-IR
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
1. Portable
Light weight, Easy to operate, Saving time for EMS,
Convenient for transportation and storage
2. Multifunction
Available for the intubation of difhcult airway, inspection ofairway and double chamber,Alveolarlavage, Biopsy, Treatmentof pneumothorax, Stent lmplantation, Removal of trachealforeign bodies, Other treatments for the bronchi, Such asLocal radiotherapy and chemotherapy, Medication Injection
Economic One screen for four scopes, Four working channel sizes for option
3. Durable
Electronic camera system with LED, New technology for thephoto processing: CMOS,Higher quality pictures, Last longer than traditional scope
4. Application
Applied to the departments such as: lCU, NICU,Respiration, Anesthesia, Emergency etc.
Specification
Blade Parameter Table
| Blade | SS | S | M | L |
| Patient Type | Newborn | Child | Adult | Obese |
| Intubation Tube Diameter | 2.5-4.0mm | 4.0-6.0mm | 6.0-9.0mm | 6.0-9.0mm |
| SterilizationMethod | Apply low temperature plasma sterilization method. Soak in 2% Glutaral for 10 minutes. | |||
| Validity | 2 Years | |||

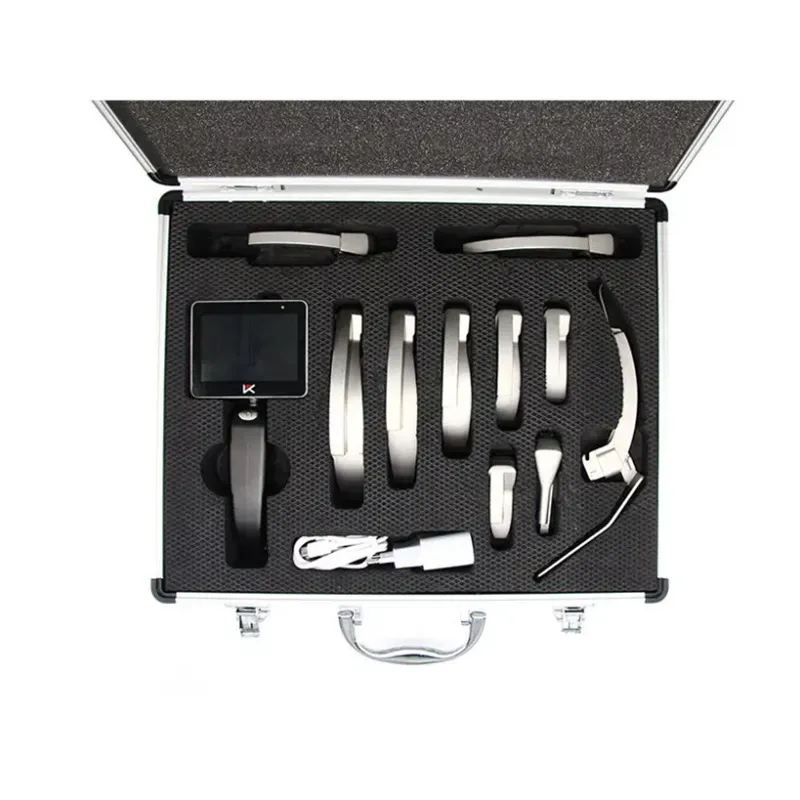

Video Laryngoscope
| Model | YS-IR | |
| Range of application: | Aneasthesiology department, ICU, Emergency department, Ambulance, ENT | |
| Classification | Class I | |
| Certificate approval | CE, FDA, NMPA, ISO13485 | |
| Items | Technical Name | Mole Medical |
| Display/Handle | Display | 3" OLED Display |
| Camera Resolution | 960*480(RGB), 2Mpixels | |
| Illuminace(LUX) | ≥800 | |
| light source | Natural white(LED) | |
| Weight of monitor and handle | 150g | |
| Rotating angles of the monitor in front and rear | 30º~150º | |
| Rotating angles of the monitor in right and left | 0 º~270 º | |
| Blade | Angle of vision | ≥73º |
| Field of depth | 20~100mm | |
| IP rating | IPX7 | |
| Blade size | 8 models including tilting tip blades especially for difficult airway | |
| Battery | Continous working time | >270minutes |
| Power supply | Rechargeable 18650 3.7V lithium battery | |
| Battery life cycle | ≥500 times | |
| Charging time | <4(hrs) | |
| Charger input | 110~220V AC 50Hz | |
| Charger output | DC 5V 1A, 2600mAh | |
| Data | Media | Class 6 Micro SD flash card |
| Strorage card | 8GB, compatible with 64GB | |
| File format | JPEG, AVI | |
| Interface | 1 mini USB, 1 SD card slot | |
| Working environments | Humidity | 30%-75% |
| Atmospheric pressure | 700hpa~1060hpa | |
| Temperature | 10℃~40℃ | |
| Transportation storage environments | Humidity | ≤93% |
| Temperature | -40℃~55℃ | |
| Atmospheric pressure | 700hpa~1060hpa | |
| Shelf life | 5years | |
| Warranty Period | 1year | |
| After-sale service | Return and replacement | |
| Size of Blades | ||||||
| Model | 尺寸L(mm) | L(mm) | W(mm) | Clinical Ages | Applical VLS | |
| Reusable blades | 00# | 52 | 59 | 9 | 1.5-3kg Premature infant | YS-IR |
| 00#-Z | 59 | 71 | 5.5 | 3-5kg Newborn infant | ||
| 0# | 67 | 70 | 12.5 | 5-20kg Neonatal | ||
| 1# | 83 | 86 | 9 | 10-30kg Child | ||
| 2# | 100 | 104 | 12 | Adult Female or Adolescent | ||
| 3# | 120 | 125 | 12 | Adult Male | ||
| 4# | 133 | 137 | 13.5 | Large adult male | ||
| D# | 125 | 133 | 13 | Adult difficult airway | ||
