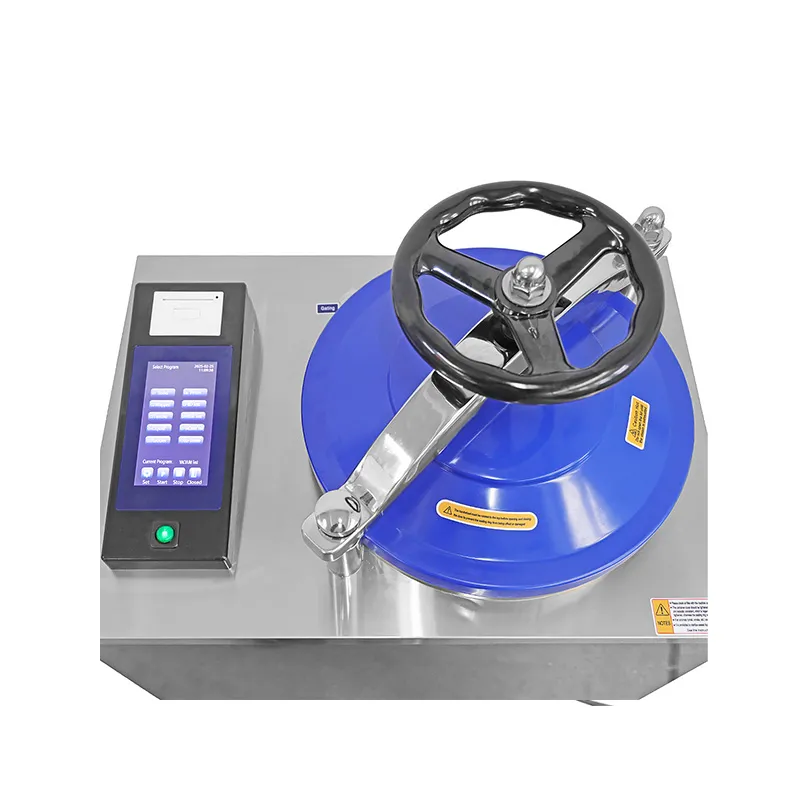

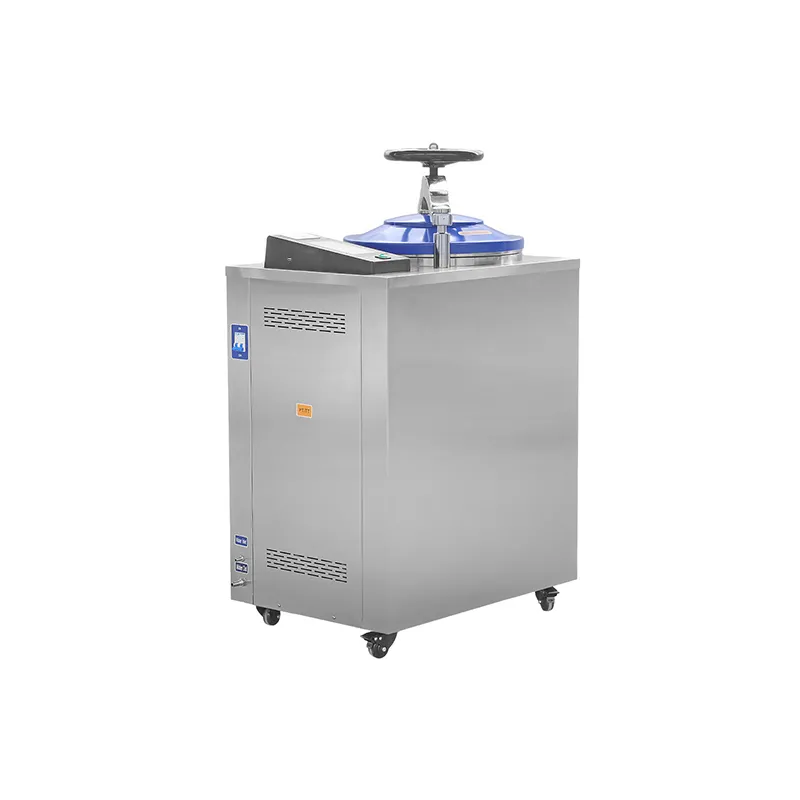

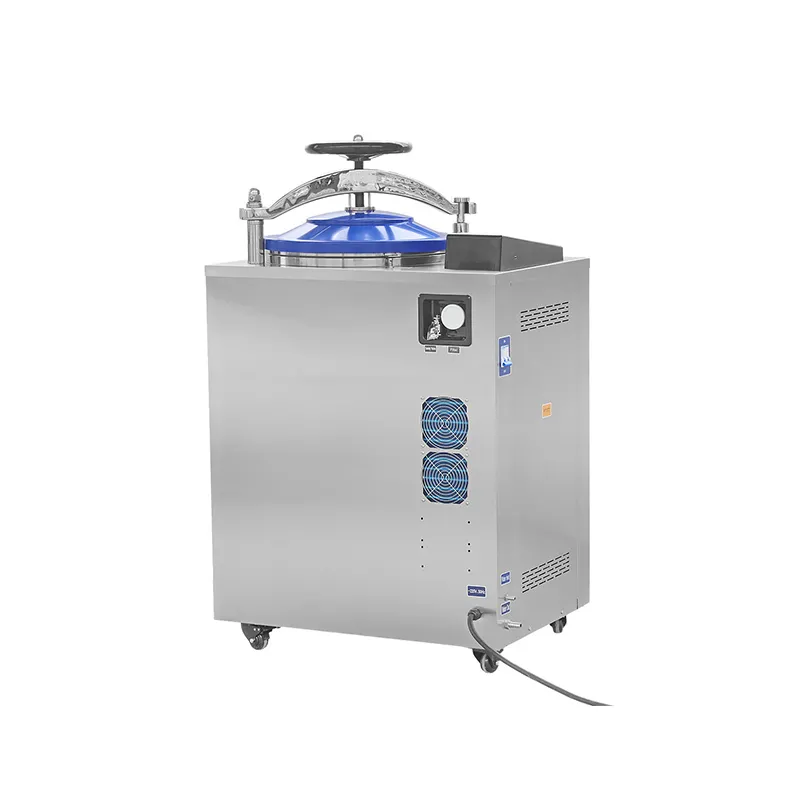

HSP-LM Series Vertical Steam Sterilizer with Drying Function

Model: HSP-LM Series

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

The Automatic Steam Sterilizer with Drying Function is a versatile pressure vessel designed for steam sterilization and controlled drying of medical instruments, laboratory glassware, textiles and other reusable supplies. Combining an efficient steam cycle with an integrated drying system, this autoclave not only sterilizes but also reduces residual moisture, making it ideal for workflows that require ready-to-use sterile items. It is widely used in hospitals, dental clinics, laboratories and sterilization centers where hygiene and turnaround efficiency are essential.

Key Features

• Dual-Function Sterilization & Drying

Integrated steam sterilization and built-in drying ensures instruments are ready for immediate use after the cycle completes.

• Digital Microprocessor Control

Easy-to-use interface with clear digital display lets users set time, temperature and drying parameters with accuracy.

• Adjustable Sterilization Programs

Adjustable temperature and duration settings make it adaptable for different loads and material types.

• Safety Interlock Mechanism

Prevents door opening when chamber pressure and temperature are unsafe, protecting operators from accidents.

• Robust Safety Protections

Includes over-temperature protection, over-pressure relief, low-water alarm and anti–dry-heat prevention for reliable operation.

• Durable Stainless Steel Chamber

Corrosion-resistant chamber and removable trays support long-term use and easy cleaning.

• Automatic Cycle Alerts

Audible and visual signals indicate cycle completion, allowing efficient workflow management.

Technical Parameter

Technical Parameters/Model	HSP-LM35	HSP-LM50	HSP-LM75	HSP-LM100
Volume	35L	50L	75L	100L
Power	3.5KW	3.5KW	4.5KW	4.5KW
Voltage	AC 110V 60HZ or AC 220V 50HZ
Design pressure	-0.1~0.25MPa
Design temperature	139℃
Rated working pressure	0.22MPa
Rated working temperature	134℃
Sterilization temperature range	116~134℃
Sterilization time range	4~ 120 min
Drying time range	0~240min
Chamber Size(mm)	Φ300x545	Φ400x515	Φ400x665	Φ450x725
Bucket dimension(mm)	Φ275x395	ф375x235x2	Φ375x265x2	Φ425x275x2
(Optional)basket dimension(mm)	Φ270x380	ф370x220x2	Φ370x250x2	Φ420x265x2
Outer dimension(mm)	430x610x1050	540x761x1180	540x761x1180	790x570x1265
Packing size(LxWxH)(mm)	670x520x1180	840x610x1310	840x610x1310	870x650x1380
Gross/net weight(kg)	86/80kg	143/114kg	150/121kg	180/146kg
