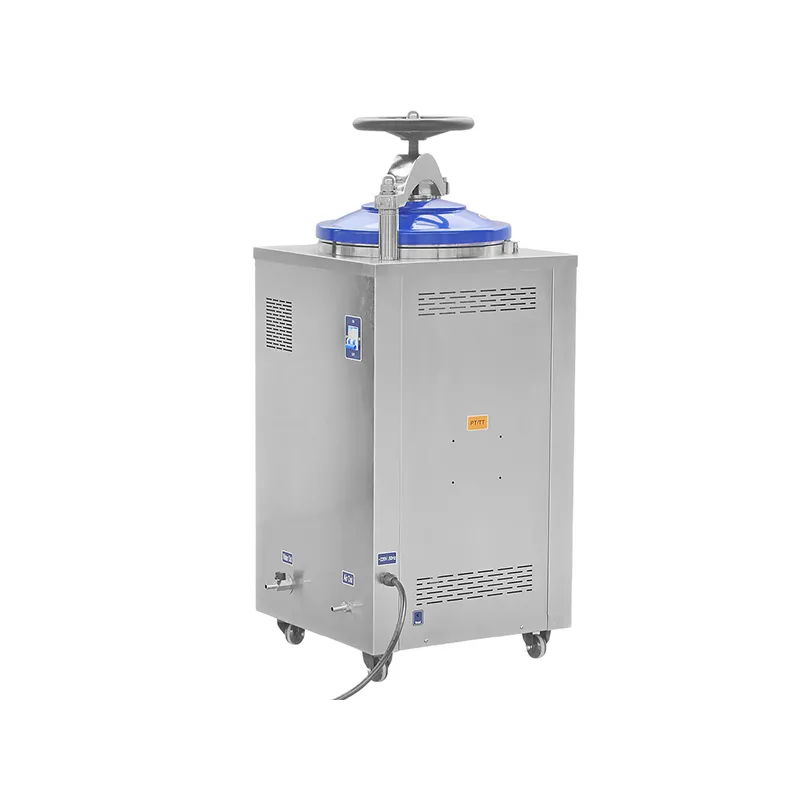

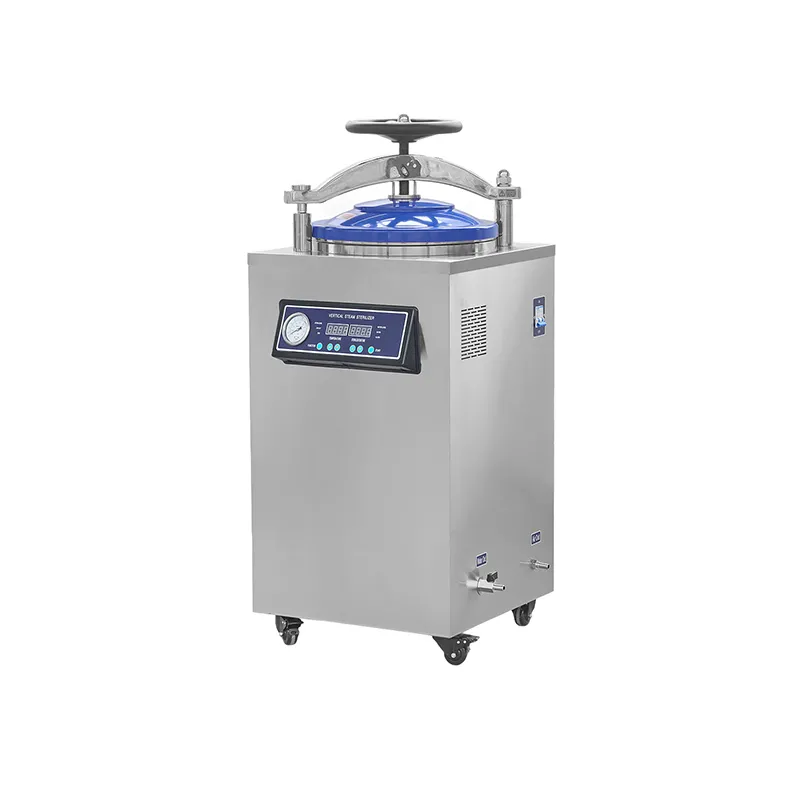

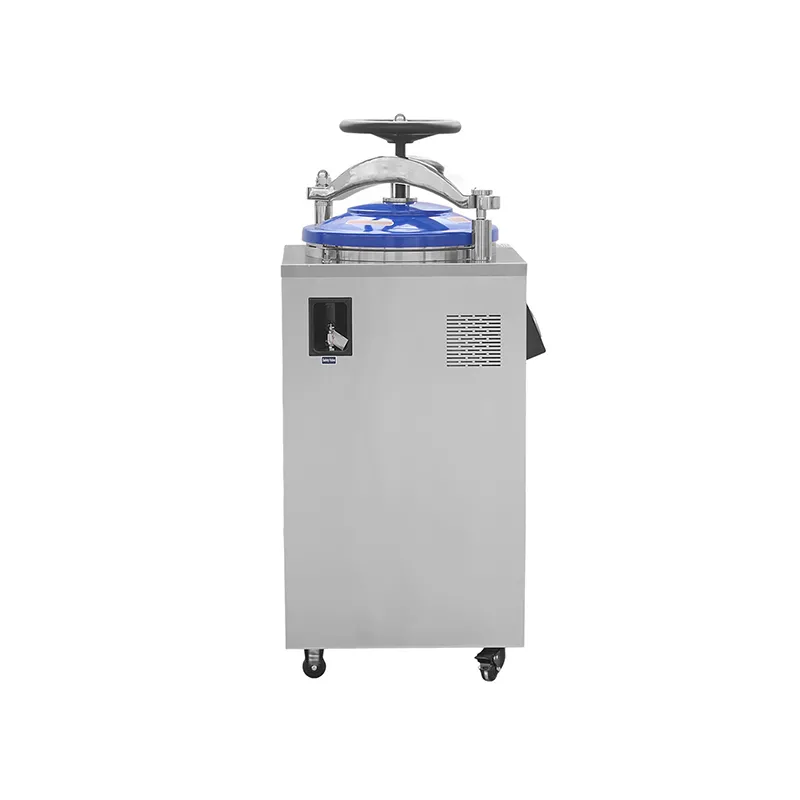

HSP-LG Series Digital Vertical Autoclave For Laboratory

Model: HSP-LG Series

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

The Vertical Autoclave is a fully automatic steam sterilizer engineered for efficient, high-temperature steam sterilization of medical instruments, glassware, dressings, textiles and lab supplies. Featuring a digital microprocessor controller, adjustable sterilization settings and multiple built-in safety protections, it delivers consistent performance for healthcare and laboratory environments where reliable sterilization is essential.

Key Features

• Digital Control System

Microprocessor-based interface with clear digital display lets you set and monitor sterilization time and temperature with precision.

• Adjustable Sterilization Programs

Flexible control over sterilization parameters allows adaptation to different materials and load sizes.

• Comprehensive Safety Protection

Built-in safeguards include over-temperature protection, over-pressure venting, low-water alarm and anti-dry burn prevention.

• Door Interlock Mechanism

Prevents the door from opening while the chamber is pressurized or still hot, keeping operators safe.

• Stainless Steel Sterilization Chamber

Long-lasting, corrosion-resistant interior provides durable performance and easy cleaning.

• Automatic Cycle Completion

At the end of each cycle, steam is vented and the system sounds an alert, reducing manual oversight.

• Compact Vertical Design

Top-loading configuration saves space while accommodating a practical sterilization volume.

Technical Parameter

Technical Parameters/Model	HSP-LG35	HSP-LG50	HSP-LG75	HSP-LG100
Volume	35L	50L	75L	100L
Power	2.5KW	3.5KW	4.5KW	4.5KW
Voltage	AC 110V 60HZ or AC 220V 50HZ
Design pressure	-0.1-0.25MPa
Design temperature	139℃
Rated working pressure	0.22MPa
Rated working temperature	134℃
Sterilization temperature range	116~134℃
Sterilization time range	4~120 min
Drying time range	0~ 240 min
Chamber Size(mm)	Φ300x450	Φ350x515	Φ400x585	ф450x615
Bucket dimension(mm)	Φ275x395	Φ325x235x2	Φ375x265x2	Φ425x275x2
(Optional)basket dimension(mm)	Φ270x380	Φ320x220x2	Φ370x250x2	Φ420x265x2
Outer dimension(mm)	476x473x990	544x536x1100	586x576x1210	620x610x1275
Packing size(LxWxH)(mm)	520x560x1120	580x630x1230	670x620x1350	690x650x1410
Gross/net weight(kg)	77/65kg	105/82kg	117/92kg	144/113kg
