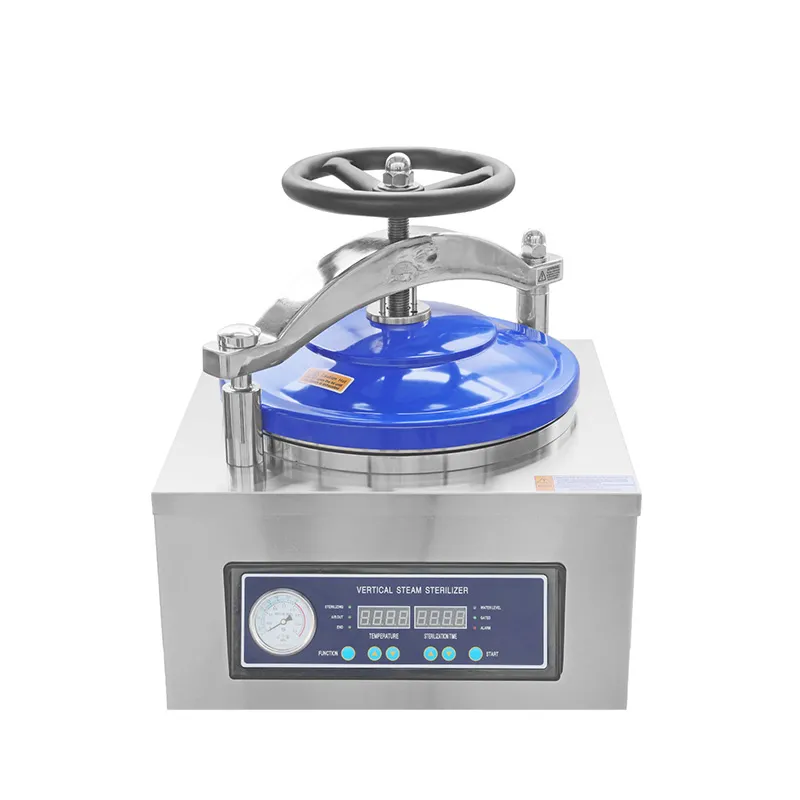

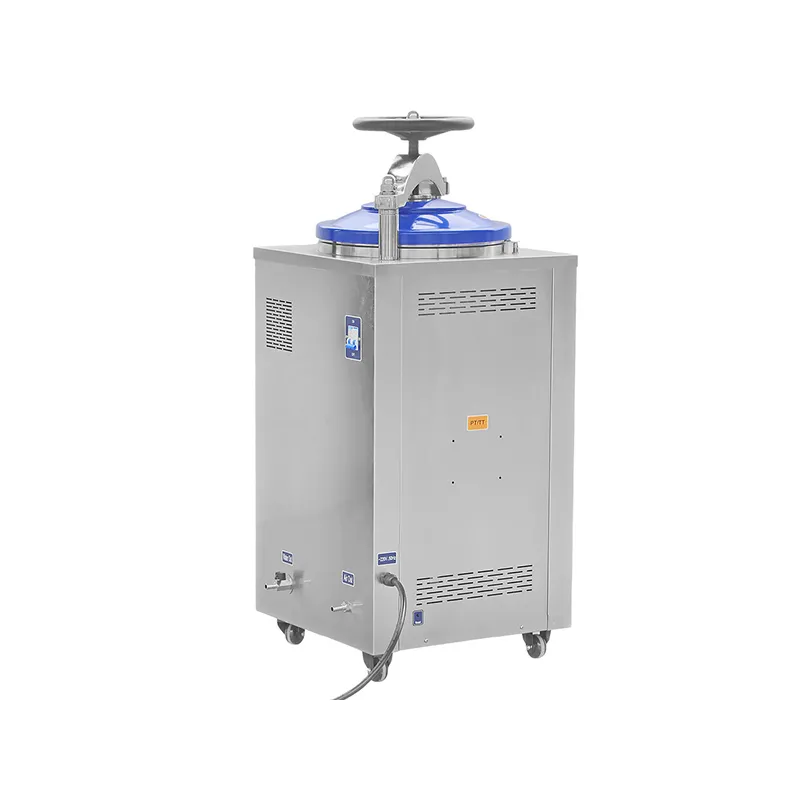

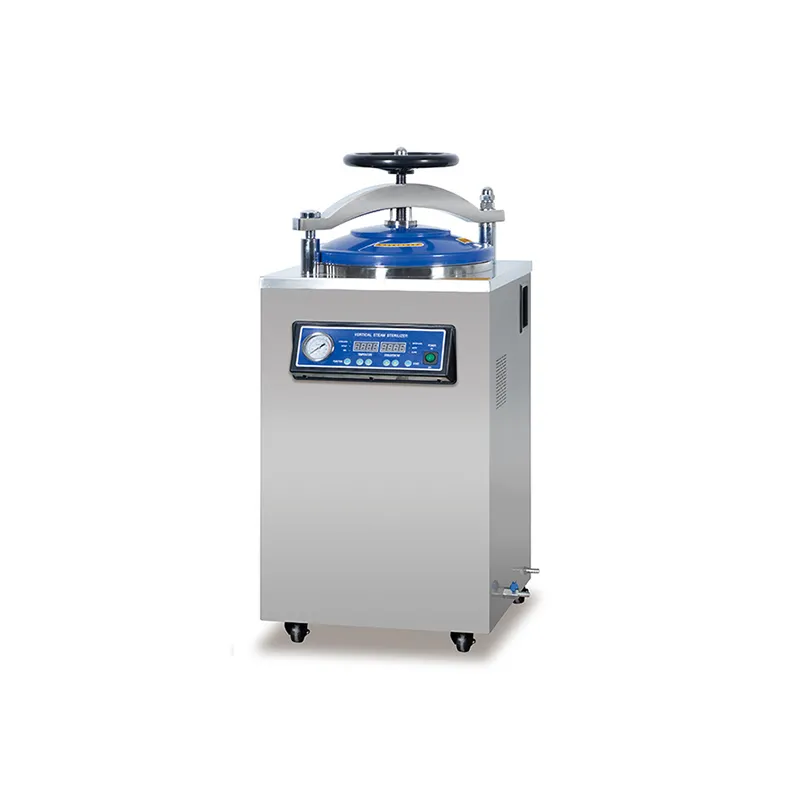

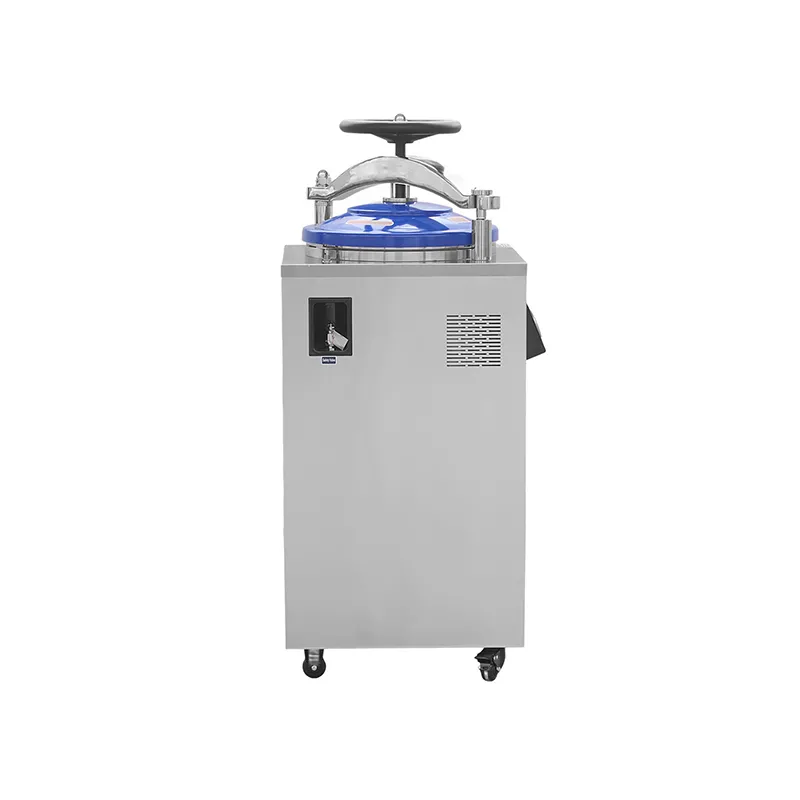

HSP-LB Series Automatic Digital Display Medical Vertical Autoclave

Model: HSP-LB Series

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

The HSP-LB Series Automatic Vertical Steam Sterilizer is a reliable medical autoclave designed for efficient steam sterilization of surgical instruments, glassware, dressings and other clinical supplies. Featuring a microcomputer-controlled digital interface and adjustable sterilization parameters, it delivers precise and repeatable sterilization performance with minimal manual intervention. Built with safety and ease-of-use in mind, this autoclave is suitable for hospitals, clinics, laboratories and healthcare facilities.

Main Features

• Digital Microprocessor Control

Clear digital display with intuitive buttons for easy parameter setting and monitoring.

• Adjustable Sterilization Programs

Temperature and time can be freely adjusted to match different sterilization loads.

• Reliable Safety Protection

Includes over-temperature protection, over-pressure auto-release, low-water alarm and anti-dry heating system.

• Safety Door Interlock

Prevents opening while the chamber is pressurized or at high temperature.

• Stainless Steel Chamber

Corrosion-resistant chamber and removable basket for easy loading and cleaning.

• Automatic Cycle Completion

Automatic exhaust of cold air and steam with audible alert at the end of each cycle.

• Multiple Capacity Options

Available in several sizes to meet different workload requirements.

Specification

Technical Parameters/Model	HSP-LB35	HSP-LB50	HSP-LB75	HSP-LB100
Volume	35L	50L	75L	100L
Power	2.5KW	3.5KW	4.5KW	4.5KW
Volta ge	AC 110V 60HZ or AC 220V 50HZ
Design pressure	0.25MPa
Design temperature	139℃
Rated working pressure	0.22MPa
Rated working temperature	134℃
Sterilization temperature range	116~134℃
Sterilization time range	4~ 120 min
Drying time range
Chamber Size(mm)	Φ300x450	ф350x515	Φ400x585	Φ450x615
Bucket dimension(mm)	Φ275x395	Φ325x235x2	Φ375x265x2	Φ425x275x2
(Optional)basket dimension(mm)	Φ270x380	Φ320x220x2	Φ370x250x2	Φ420x265x2
Outer dimension(mm)	476x473x990	544x536x1100	586x576x1210	620x610x1275
Packing size(LxWxH)(mm)	520x560x1120	580x630x1230	670x620x1350	690x650x1410
Gross/net weight(kg)	74/62kg	103/80kg	115/90kg	134/106kg

Applications

• Hospital Central Sterile Supply Department (CSSD)

• Outpatient clinics and dental centers

• Laboratory instrument sterilization

• Sterilization of surgical tools, textile packs, and medical waste

Frequently Asked Questions

Q: Is this autoclave suitable for small clinics?
A: Yes, its compact design is ideal for hospitals and clinics with limited space.

Q: Can the sterilization programs be customized?

A: Yes, the HSP-LB Series supports programmable sterilization cycles for different instruments.

Q: Does it comply with international safety standards?
A: Yes, it is manufactured according to ISO and CE standards for hospital sterilizers.

Q: What maintenance is required?
A: Routine cleaning of the chamber and periodic inspection of safety valves are recommended to ensure long-term performance.
