Shangrila 510 Hospital Portable Emergency Transport Ventilator​

Model: Shangrila 510

Certificate: CE / ISO

After-sales Service: Online technical support

Warranty:  1-Year



Share:
Inquire Now Add to Basket Next Product

Product Description

The Shangrila 510S Transport Ventilator is a rugged, reliable emergency respiratory support system designed for critical care during transport and on-site emergency use. Pneumatically driven and electronically controlled, the device delivers multiple ventilation modes suitable for adult, pediatric, and infant patients. Its compact and lightweight design makes it ideal for ambulances, emergency departments, field hospitals, clinics, and intra-hospital transfers. With a user-friendly interface and comprehensive monitoring, Shangrila 510S helps optimize patient outcomes and quality of care across diverse clinical scenarios.



Features

 • Pneumatically driven and electronically controlled ventilation system for consistent and stable support.

 • Multiple ventilation modes including Assist/Control (A/C), SIMV, SPONT/PSV, CPAP, and Manual.

 • Compact and portable design for efficient use in ambulances and emergency transport.

 • Built-in waveform display and multi-parameter monitoring for real-time respiratory feedback.

 • Flexible power options: A/C mains, D/C vehicle power, and long-lasting internal battery.

 • Adjustable FiO₂ from 40–100% to meet varying oxygenation requirements.

 • Audio and visual alarm systems for critical alerts and safety enhancement.

 • Supports adult, pediatric, and infant patients (>3.5 kg).

 • Simple operation with direct access to key settings and patient data.



Specification

ItemDetails
Ventilation ModesA/C, SIMV, SPONT, MANUAL, SIGH
AlarmPaw High,Paw Low,Apnea,AC Power Failure,Battery Low,     O₂ Deficiency,No Vt
Tidal Volume0 ~ 1500 ml
Respiration Rate (A/C)4 ~ 99 bpm
Respiration Rate (SIMV)1 ~ 40 bpm
I : E Ratio1:4 ~ 2:1
FiO₂48% ~ 100%
Pressure Trigger Sensitivity-20 ~ 0 cmH₂O
PEEP5 ~ 20 cmH₂O
Monitoring ItemDetails
Pressure ValuePpeak
Volume / Flow ValueVt, MV
Time Valueftotal
Real-Time CurvesPressure – Time
Technical ItemSpecification
Supply GasO₂, 0.28 ~ 0.6 MPa
Power SupplyAC 100 ~ 240 V, 50 / 60 Hz, ≤65 VA
Maximum Security Pressure≤6 kPa
Compliance≤4 ml / 100 Pa
Noise Level≤65 dB(A)
Dimension (W × D × H)175 × 170 × 300 mm
Weight3.5 kg





Inquiry Basket
(0)
Empty

Related Products

More Products

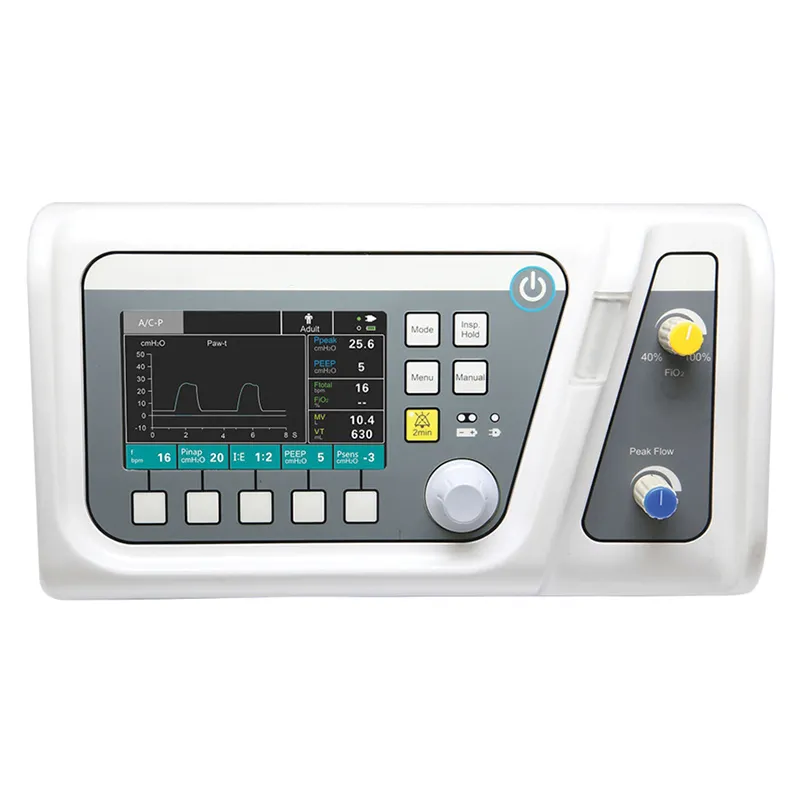

HSP- 510S Portable Emergency Transport Ventilator

HSP- 510S Portable Emergency Transport Ventilator

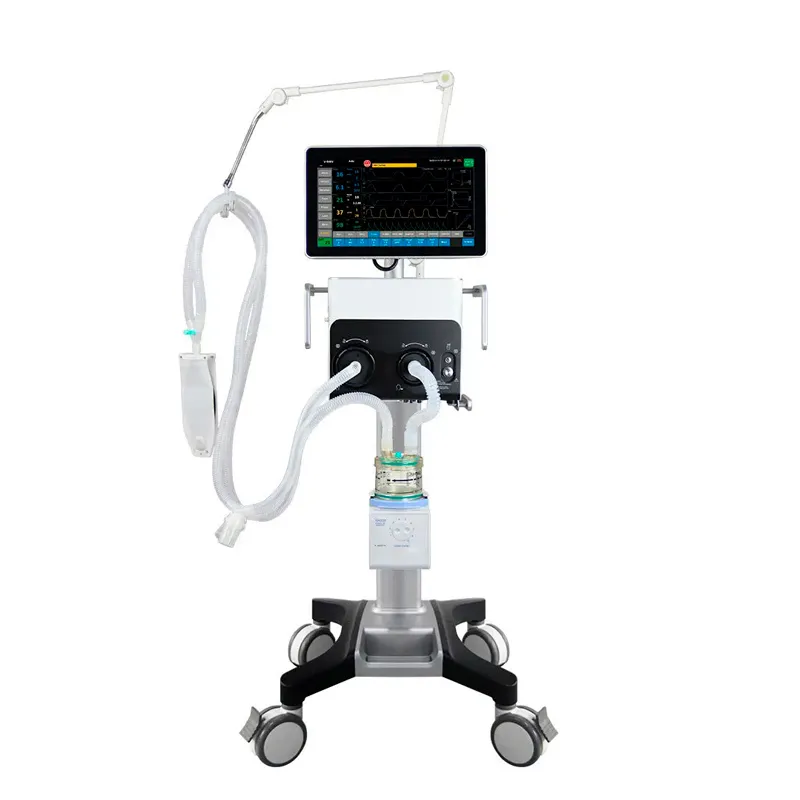

HSP-V6 ICU Patient Ventilator for Critical Care

HSP-V6 ICU Patient Ventilator for Critical Care

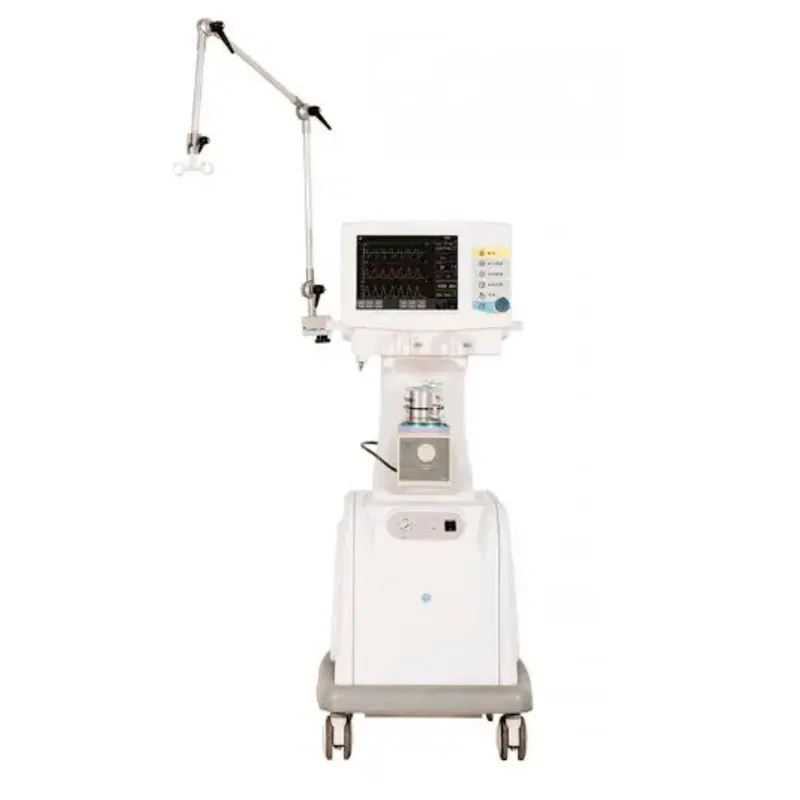

HSP-3010 ICU Ventilator Machine for Hospital Use

HSP-3010 ICU Ventilator Machine for Hospital Use

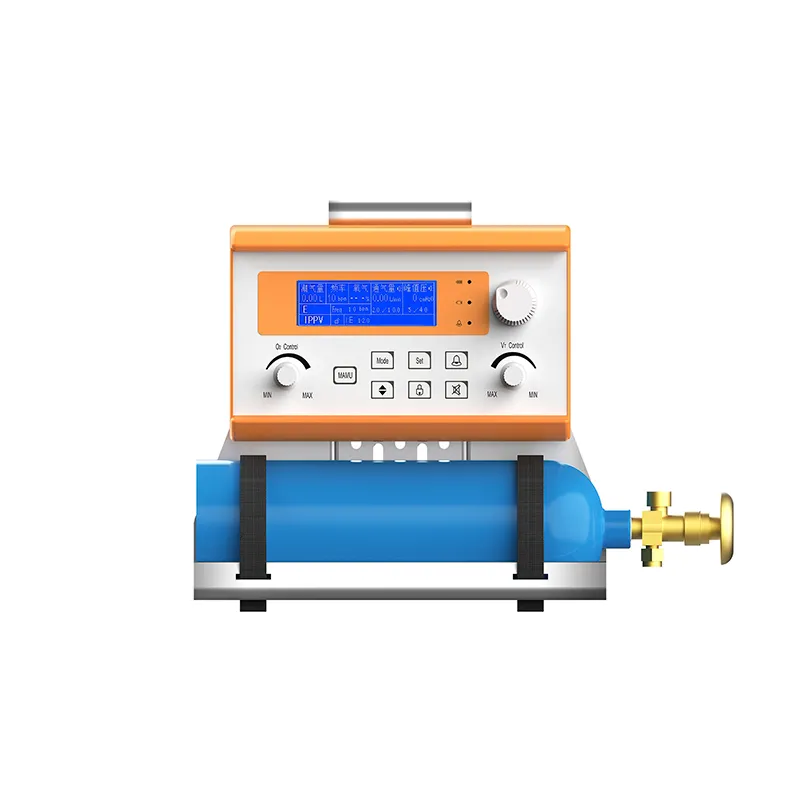

HSP-2010 Portable Emergency Ventilator

HSP-2010 Portable Emergency Ventilator

Related Solutions

Our turnkey NICU solutions integrate cutting-edge medical technology, intelligent environmental control, and evidence-based design to create a safe, hygienic, and nurturing environment for the most vulnerable patients.

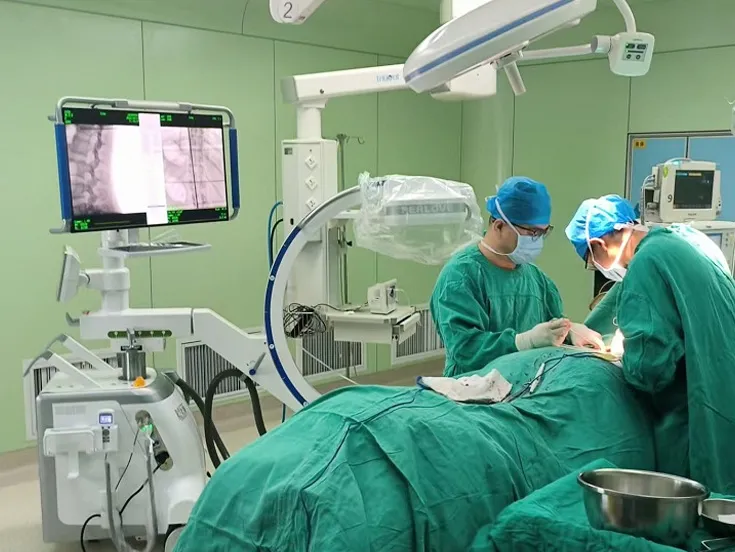

Orthopedic Operating Room Solution with Mobile C-arm Imaging System

Orthopedic Operating Room Solution with Mobile C-arm Imaging System

View More

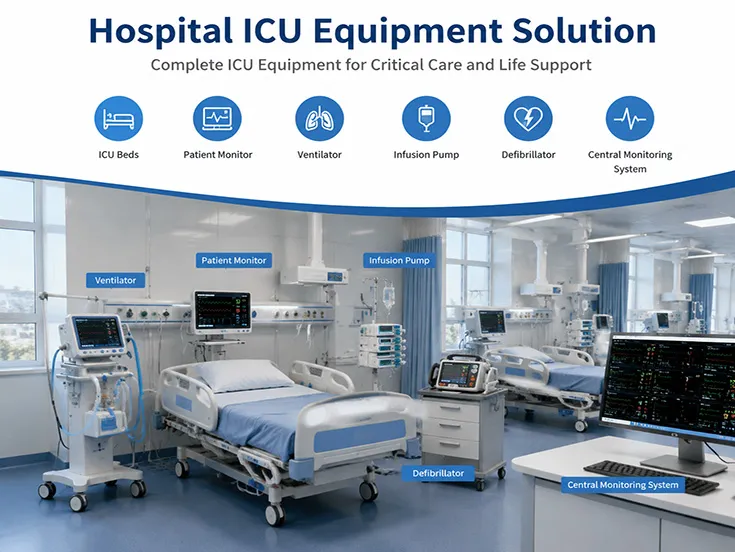

Hospital ICU Equipment Solution
