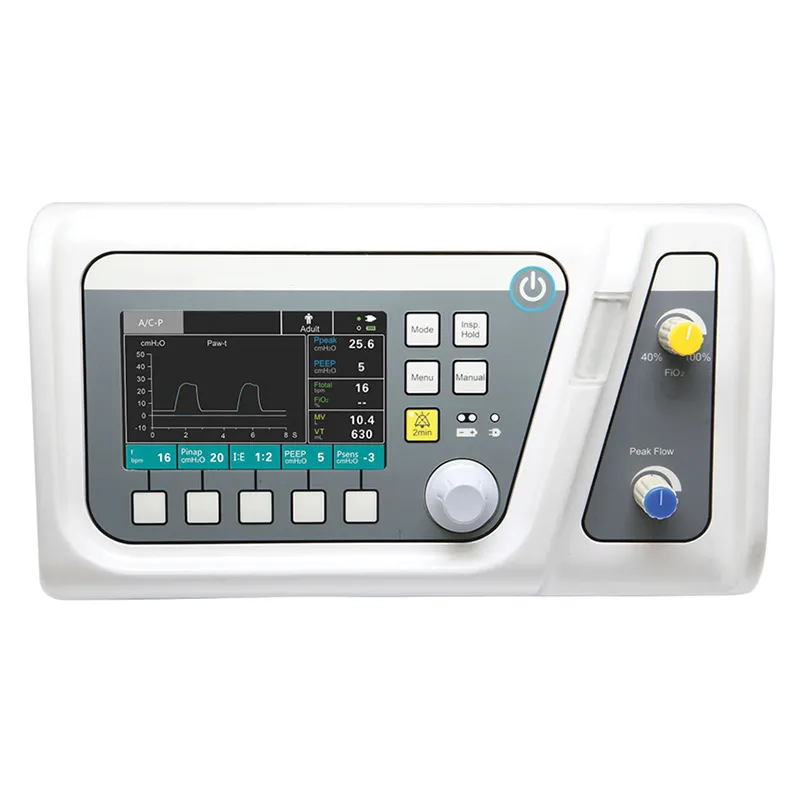

Medical Ventilator
Model: HSP- 510S
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Main features
The Aeonmed HSP-510s transport ventilator is the ultimate solution for advanced respiratory care on the go. Engineered with cutting-edge technology and unmatched precision, this state-of-the-art ventilator is designed to deliver exceptional performance in critical situations. The aeonmed transport ventilator intuitive interface and user-friendly controls allow for effortless operation, ensuring healthcare professionals can focus on providing the best care possible. The Aeonmed shangrila 510s ventilator boasts a compact and lightweight design, making it the ideal choice for seamless transportation and easy handling.
Main Features
Simple operation, compact design, reliable performance
-Waveform display and multi-parameter monitoring.
-Electronically controlled PEEP
-Acoustic and visual alarms
-Anti-crash design
-Direct access to critical settings and patient data.
-Operate with low flow oxygen supply.
Specification
| Ventilation Modes | |
| A/C-V with sigh A/C-P SIMV-V SIMV-P | |
| Parameters | |
| Tidal Volume | 0~2000 ml Technical Specification |
| Respiration Rate | 1~120 bpm(A/C mode)1~40 bpm(SIMV mode) |
| I:E Ratio | 1:10~4:1 |
| FiO2 | 40%~100% |
| Trigger Sensitivity | Pressure trigger:-20~0 cmH2O |
| Flow Trigger | 2~30 L/min |
| PEEP | 0~30 cmH2O |
| Monitoring | |
| Pressure Value | Ppeak,PEEP |
| Volume/Flow Value | Vt,MV |
| Time Value | ftotal |
| Real Time Curves | Pressure-Time,Flow-time |
