Medical Ventilator
Model: HSP- 2010
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

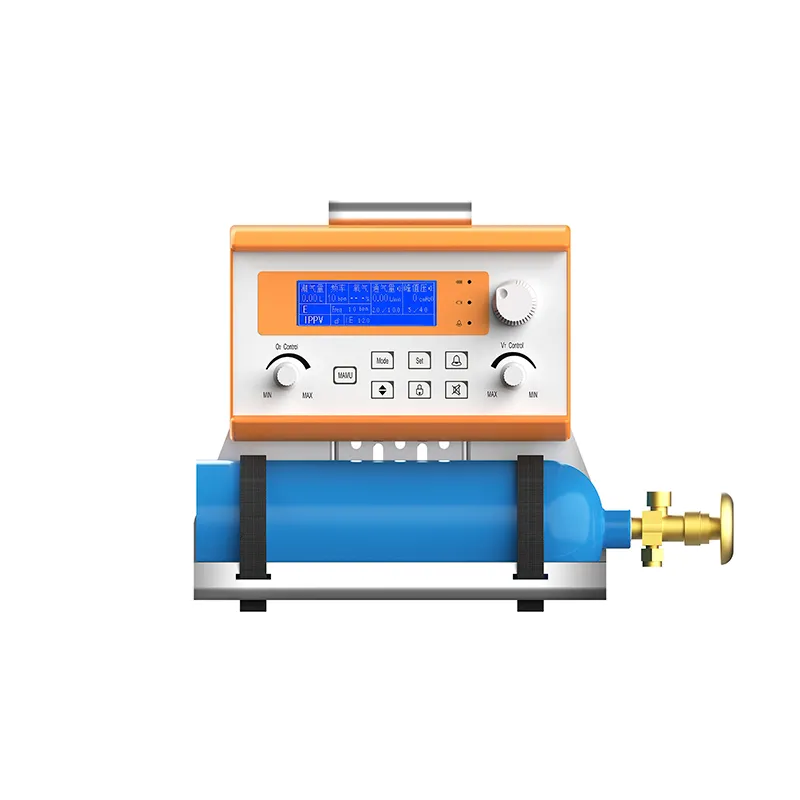

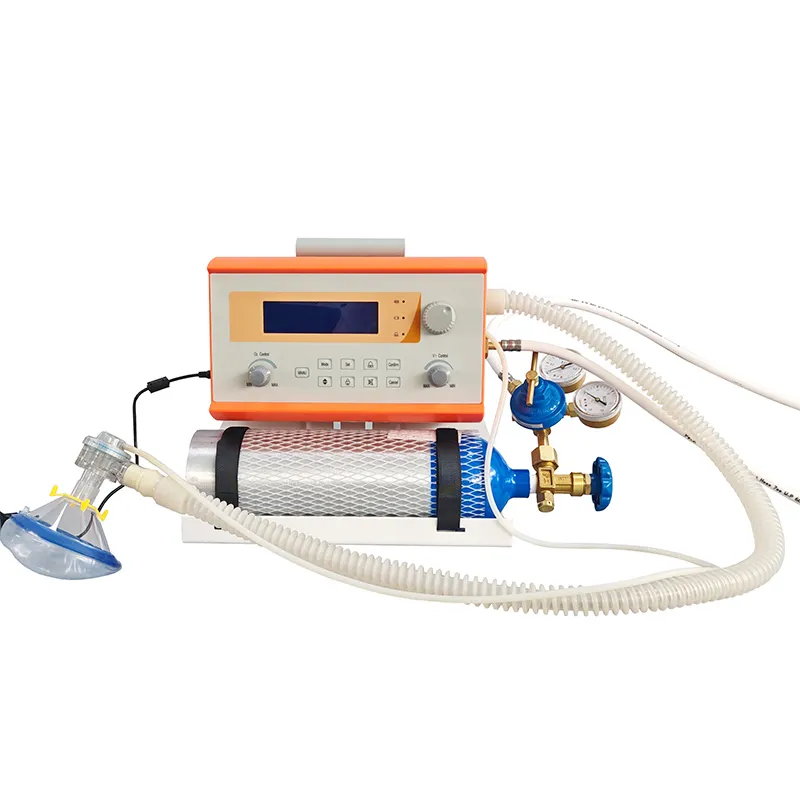

HSP-2010 ventilator is a type of portable electrically and pneumatically controlled synchronous respirator with time switch. It is mainly used for the saving of patients with respiratory failure field surgical operation and resuscitation after surgical operation. It can be used in the ambulance transportation and surgical operation outside, respiration medicine and operation rooms of various types hospitals.
Main Features
-Applied for adult and pediatric.
-Pneumatic driven, Electronic control.
-Advanced monitoring and alarm systems for patient-related parameters.
-Intelligence operating system.
-Easy to carry.
-Anti-shock, anti-interference and waterproof.
-Can be used in emergency department, transport, outdoor aid, per-hospital aid and beside the bed
Specification
| Technical specifications | |
| Power Input | 220V(+/-10%),50Hz(+/-2%) or 110V/60Hz |
| Battery Back-up | Internal Rechargeable |
| Sealed Lead Acid | 12V:＞4 Hours |
| Car Charger | DC 12V |
| Screen Size | 5.7 inch |
| Gas | O2, Air: O2 or air |
| Pipeline input Range | 280kpa-600kpa |
| Ventilation Specification | |
| Breathing Rate | 4-100/min |
| Inspiratory Duration | 0.2-6s |
| Tidal Volume | 50-2000ml |
| Oxygen concentration | 45%-100% |
| I:E Ratio | 4:1-1:8 |
| Sigh times | 1-5(Every 100 times) |
| Ventilation Mode | IPPV, SPONT/CPAP, A/C, SIGH, SIMV, MANUALPEEP(Optional) |
| Inspiratory trigger sensitivity | |
| Pressure Trigger | -2kpa-0kpa |
| Monitoring | Tidal volume, Ventilation volume, Breathing rate, Ppeak, Oxygen concentration(Optional) |
| Waveform Display | Pressure-Time |
| Alarms | Apnea Vt too high(low) Airway Pressure too highO2 or Air supply failedAC power failureBattery under voltageNo tidal Volume |
