VS500 Medical Vein Finder Device

Model: VS500

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Product Description

The VS500 Vein Finder is an advanced near-infrared vein visualization device designed to assist healthcare professionals in locating veins quickly and accurately. Using near-infrared light and digital image processing technology, the system projects real-time vein patterns directly onto the patient’s skin, improving the success rate of venipuncture procedures.

The device integrates intelligent features such as vein centerline guidance, depth detection, and image storage, providing clinicians with enhanced visualization and improved workflow efficiency. Its lightweight and portable design makes it suitable for hospitals, clinics, emergency care, and pediatric applications.

Key Features

• Advanced near-infrared imaging

Projects real-time vein images using near-infrared light, allowing clear visualization of subcutaneous veins for accurate puncture.

• Vein centerline guidance

Displays a vein centerline to guide needle insertion and improve first-attempt success rates.

• Depth detection technology

Provides information about vein depth, helping clinicians assess suitable puncture sites more effectively.

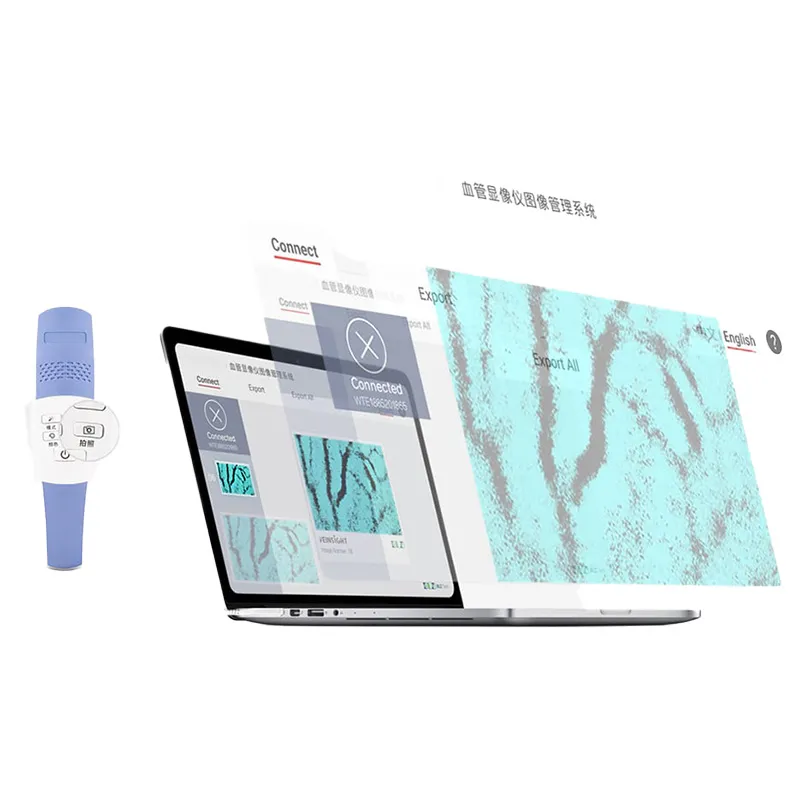

• Image storage and transfer

Supports saving real-time vein images and exporting them to a computer for comparison, documentation, or research purposes.

• Intelligent distance sensor

Built-in distance detection ensures optimal projection distance for clearer imaging and easier operation.

• Multiple imaging modes

Includes enhance mode, depth mode, and inverse mode, enabling visualization of difficult veins under different clinical conditions.

• Lightweight and portable design

Compact structure (approx. 420 g) allows easy handling and flexible use across various clinical environments.

Clinical Applications

• Venipuncture and IV access

• Pediatric and neonatal care

• Oncology patients

• Geriatric care

• Emergency and critical care

• Difficult vein access cases

Technical parameter

Model	VS500
Imaging Technology	Near-Infrared Vein Visualization
Infrared Wavelength	approx. 850 nm
Visible Light Wavelength	approx. 530 nm
Imaging Modes	Normal, Enhance, Depth, Inverse
Image Storage	Yes
Data Transfer	USB export to PC
Distance Sensor	Yes
Power Supply	100–240 V AC, 50–60 Hz
Battery	Lithium-ion 3.6V, 4300 mAh
Continuous Run Time	approx. 5 hours
Charging Time	approx. 3 hours
Weight	approx. 420 g
Dimensions	210 × 60 × 60 mm
Focusing Distance	approx. 20 cm
