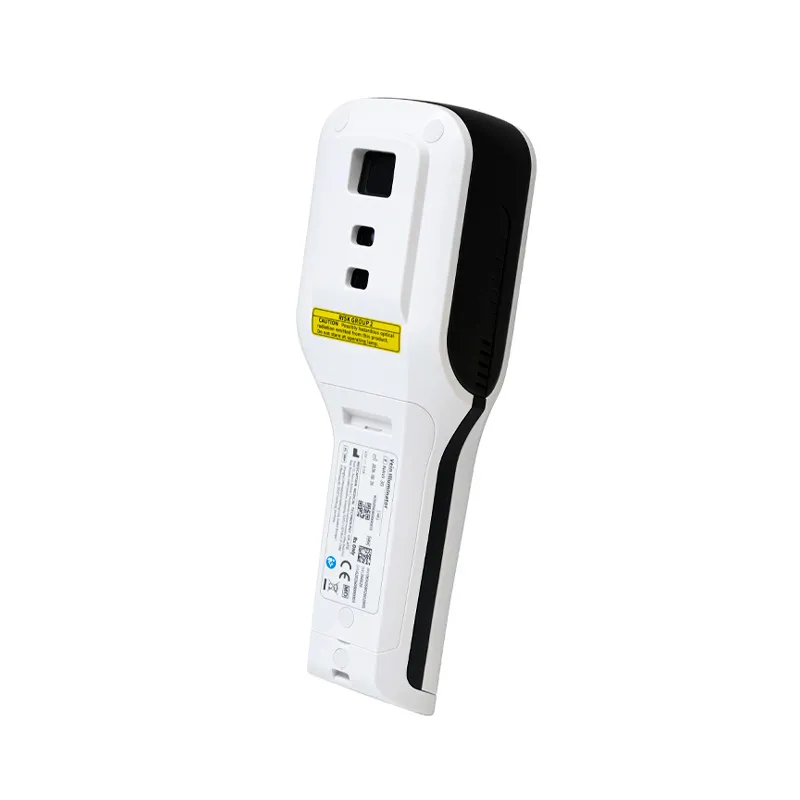

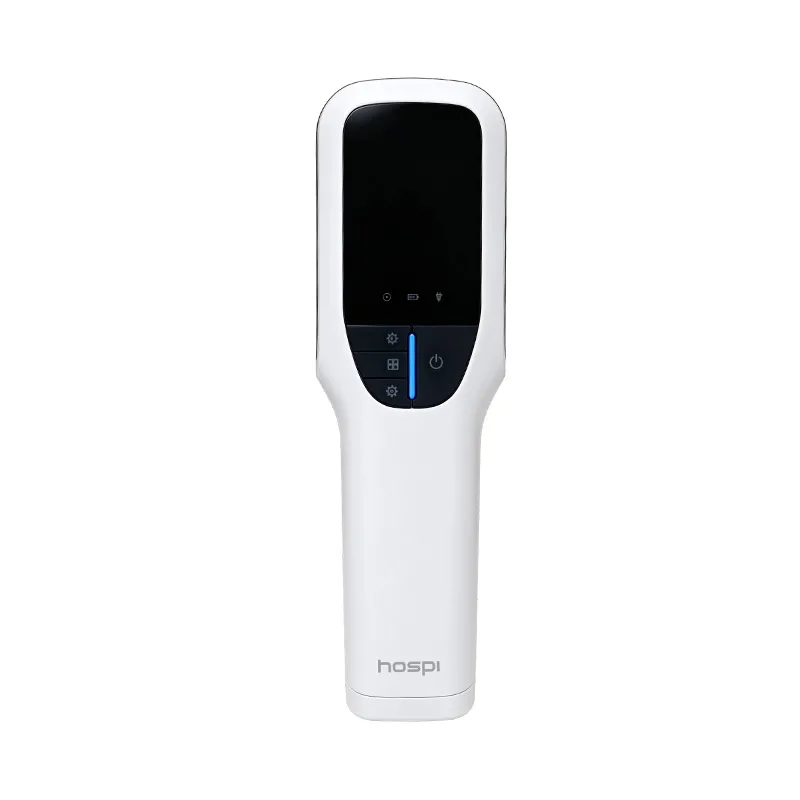

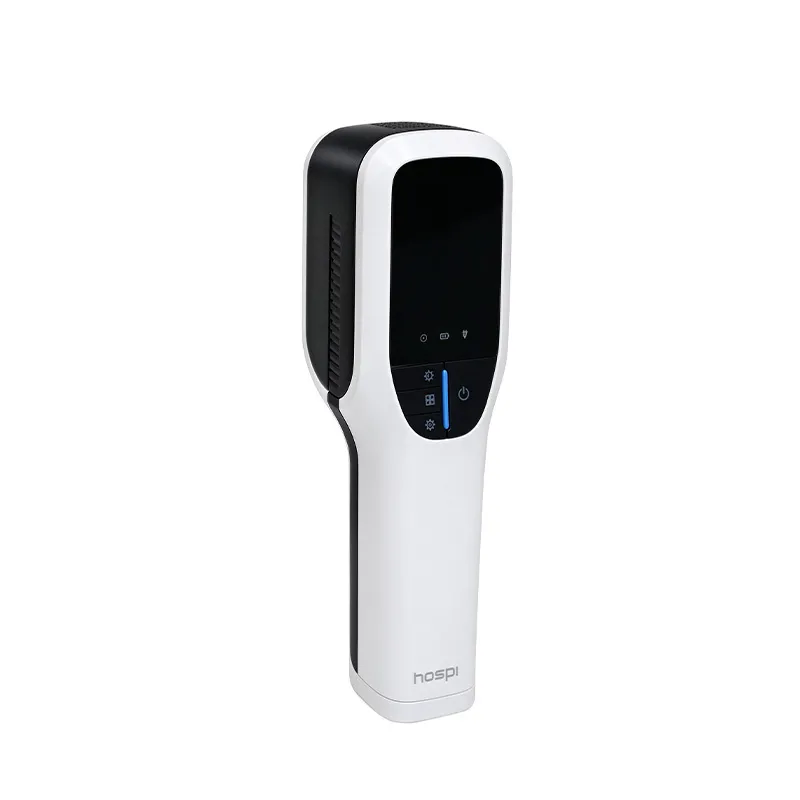

HP-NAVI30 Vein Illuminator

Model: HP-NAVI30

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Product Overview

The HP-NAVI30 Vein Illuminator is a portable vein finder designed to help healthcare professionals locate superficial veins before venipuncture. Using near-infrared imaging technology, it detects the vein pattern beneath the skin and projects the image directly onto the skin surface.Its compact handheld design makes the HP-NAVI30 convenient for use in hospitals, clinics, infusion centers, emergency departments, and other healthcare settings where venous access may be challenging.

Key Features

• Near-infrared vein imaging helps visualize superficial veins beneath the skin.

• Five projection colors provide different viewing options for different skin and lighting conditions.

• Adjustable brightness allows the projection intensity to be adapted to the working environment.

• Adjustable projection size helps accommodate different patients and detection areas.

• Vein depth indication provides an indication of the approximate vein depth to assist healthcare professionals during venipuncture.

• Portable handheld design makes the device easy to carry and position during clinical procedures.

• Built-in rechargeable lithium battery supports portable operation for at least 2.5 hours under specified conditions.

• Can be used while charging, allowing continued operation when connected to an external power supply.

• Compatible with optional supports or trolley systems for different clinical applications.

Applications

The HP-NAVI30 Vein Illuminator can be used to assist with superficial vein localization in a variety of clinical settings, including:

• Intravenous (IV) access

• Blood collection

• Infusion procedures

• Emergency care

• Pediatric care

• Geriatric care

• Patients with difficult venous access

It may be particularly useful when superficial veins are difficult to locate visually or by palpation.

How It Works

The HP-NAVI30 uses near-infrared light to detect differences in light absorption between veins and surrounding tissue. The captured information is processed and converted into a vein image, which is then projected onto the surface of the skin.This allows qualified medical professionals to observe the vein distribution and use the projected image as an aid during venipuncture. The device should be used as an assisting tool and not as the sole method for locating veins.

Product Specifications

Product Name	Vein Illuminator
Model	HP-NAVI30
Dimensions	224 × 68 × 64 mm
Weight	Approx. 0.5 kg
Image Light	10–25 lumens
Brightness	4 levels
Projection Colors	5 colors
Projection Image Size	3 sizes
Imaging Depth	>30 mm
Battery	Built-in rechargeable lithium battery
Continuous Operation	≥2.5 hours
Charging Time	≤4 hours
Power Supply	AC 100–240 V, 50/60 Hz
Operation	Handheld
Service Life	5 years
