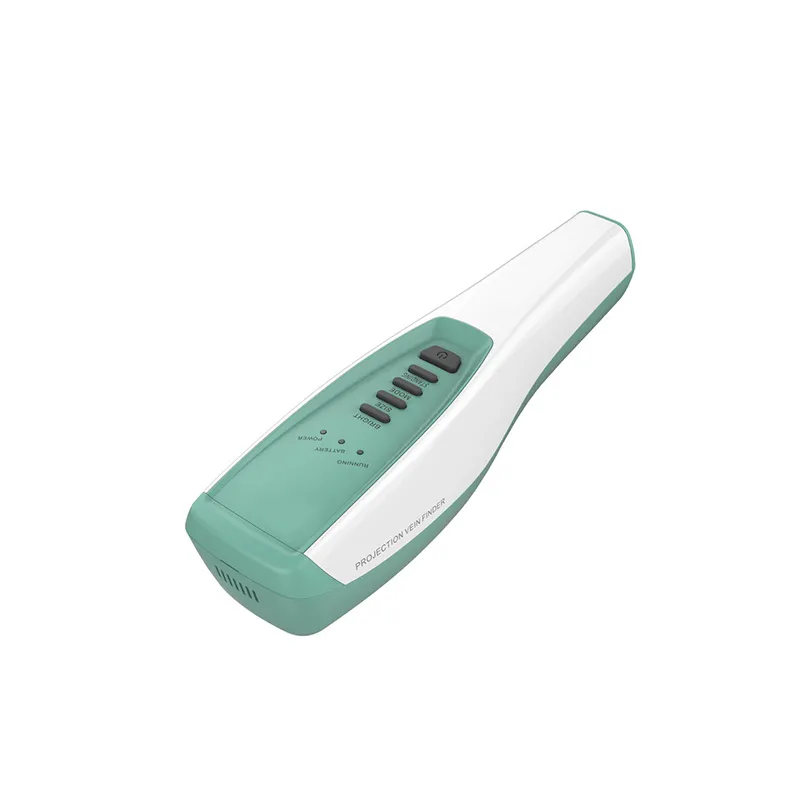

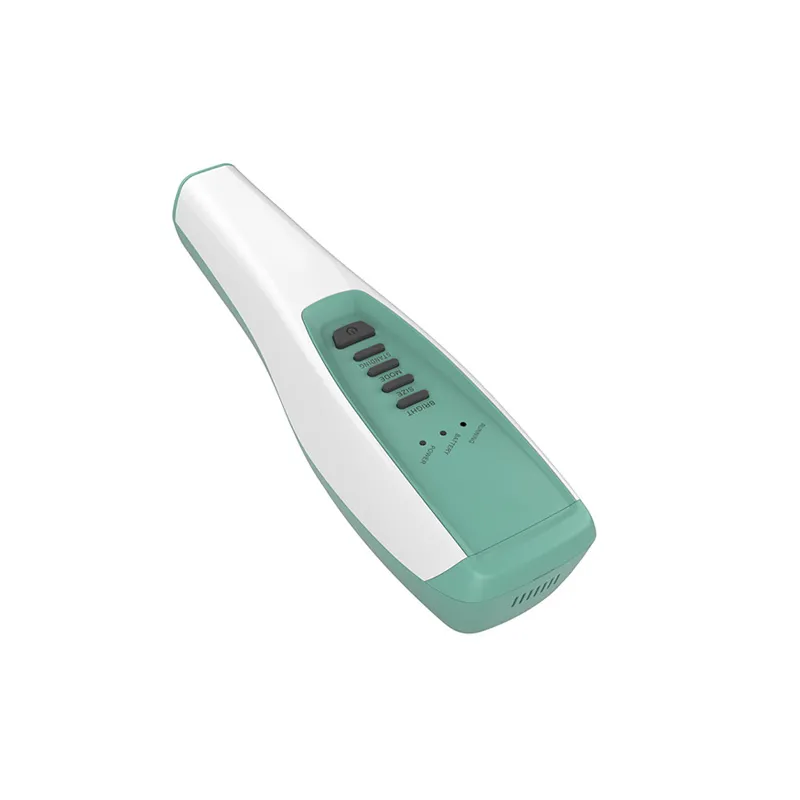

V800F Portable Projection Vein Finder

Model: V800F

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Product Description

The Projection Vein Finder V800F is a high-precision vein visualization device designed to assist healthcare professionals in locating veins quickly and accurately. Utilizing advanced near-infrared (NIR) imaging technology, the system projects a real-time map of subcutaneous veins directly onto the patient’s skin, improving venipuncture success rates and reducing patient discomfort.

With its portable design, intuitive interface, and intelligent imaging capabilities, the V800F enhances clinical efficiency and workflow across a wide range of medical environments, including hospitals, infusion centers, and emergency care settings.

Key Features

• Near-infrared projection technology

Uses 850 nm near-infrared light to detect and visualize subcutaneous veins with high accuracy.

• Real-time vein projection

Projects vein patterns directly onto the skin, allowing clinicians to identify optimal puncture sites instantly.

• Multiple brightness and imaging options

Supports adjustable brightness levels and projection sizes to adapt to different patients and clinical conditions.

• Suitable for all skin tones

Optimized imaging algorithms ensure reliable vein detection across various skin colors and lighting environments.

• Pediatric-friendly design

Provides smaller projection sizes for infants and children, improving accuracy in pediatric applications.

• Portable and lightweight

Compact design (approx. 350 g) enables easy handling and flexible use in different clinical settings.

• Enhanced clinical efficiency

Reduces failed puncture attempts, shortens procedure time, and improves patient comfort.

Clinical Applications

• Venipuncture and IV access

• Pediatric and neonatal care

• Oncology patients

• Emergency and ICU settings

• Infusion therapy

• Difficult vein access cases

Technical Specifications

Model	V800F
Imaging Technology	Near-Infrared (NIR) Projection
Wavelength	850 nm
Image Resolution	854 × 480 pixels
Detection Depth	≤ 10 mm
Brightness Levels	4 levels
Display Colors	Green / White
Imaging Modes	Basic mode
Optimal Distance	210 ± 30 mm
Radiation Level	≤ 0.6 mW/cm²
Battery	Rechargeable lithium battery
Continuous Working Time	≤ 4.5 hours
Charging Time	≤ 3.5 hours
Weight	approx. 350 g
Dimensions	228 × 63 × 62 mm
Stand	Optional (table or floor stand)
