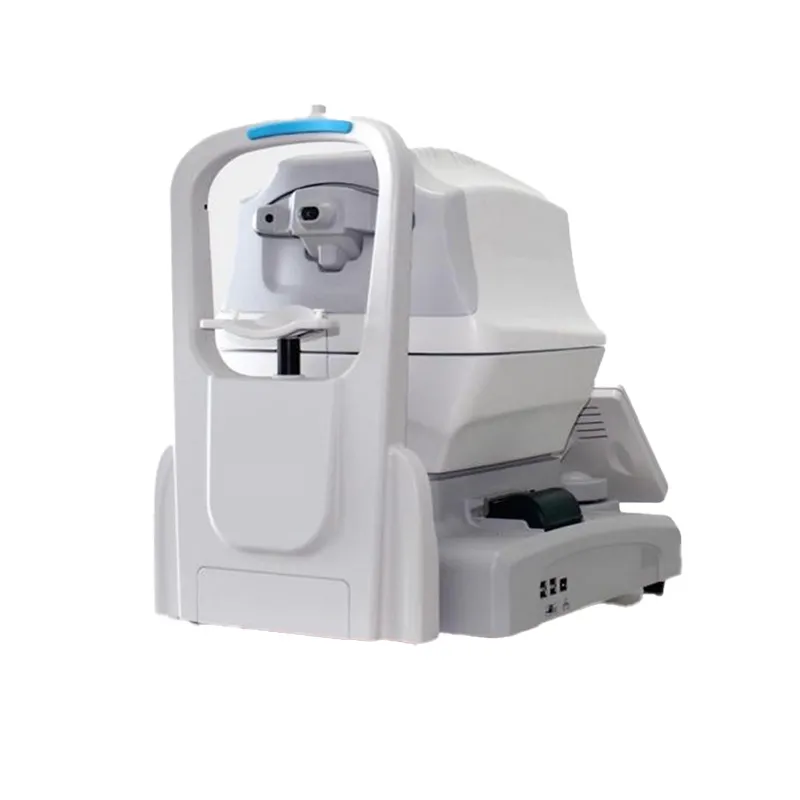

Tonometer
Model: HSP-RT1000
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness.
Main Features
-Auto 3-D positioning of xyz results in precise and reliable measurement
-Full-auto measurement for both right and left eye data without manual switch
-Easy to operate the tonometer with color touch monitor
-Stable data of IOP through soft air measurement
-To compensate corneal thickness measurement of IOP
Specification
| Basic Specifications | |
| Intraocular pressure (IOP) measuring range | 1mmHg~30mmHg/1mmHg ~60mmHg (precision of 1mmHg) |
| Measuring system | Dual sensor system of light and pressure |
| Working distance | ≥11mm |
| R/L | Automatic detection and display |
| Measuring result | 10 times per eye; 3 times result printing per eye |
| Recording | Build-in printer |
| Measuring mode | Auto/manual |
| Focus | When luminous spot is in the focus frame, 2 modes can be chosen.Auto mode: auto intraocular pressure measurement.Manual mode: when it’s good focus, the frame will turn yellow into green, and click to start the measurement |
| Error indication | If the measurement signal is weak, the IOP will be enclosed by(), or display “ERR” |
| Safety limit button | Install measurement for minimum distance between head and patient |
| Safety functions | The distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head. |
| Movement range | ≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Jaw layer vertical movement | 0~65mm with under jaw layer |
| Display mode | 10.1-inch HDMI color LED touch monitor |
| Output port | USB2.0 |
| Working platform | Electric elevating platform |
| Others | |
| Size | 380 mm(L) × 460mm(W) × 505mm(H) |
| Weight | 19.7kg |
| Power supply | 220V/50Hz |
