Syringe Pump

Syringe Pump
Syringe Pump

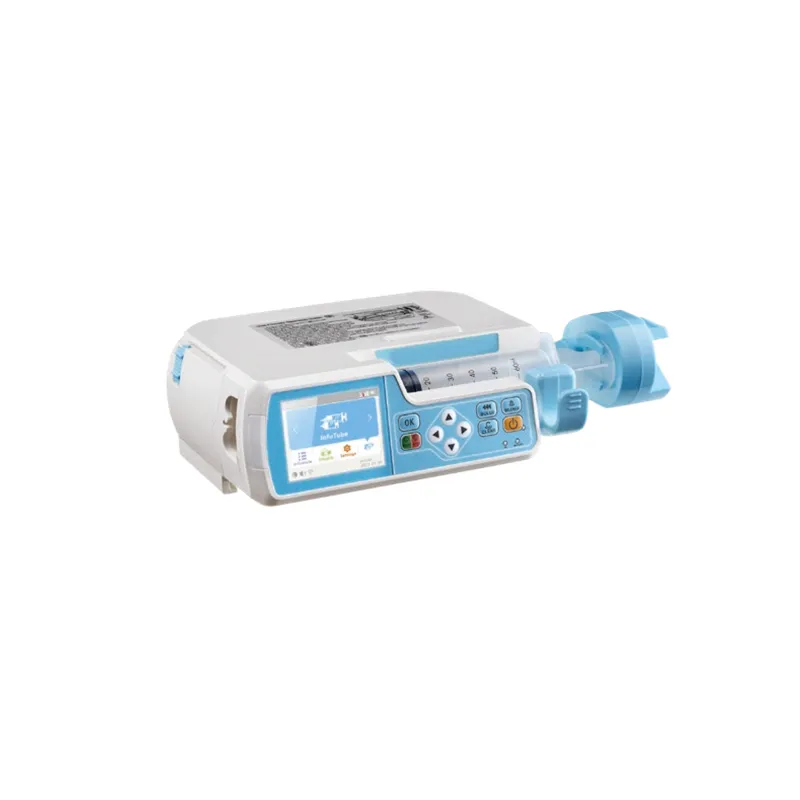

HSP-S1 Portable LCD Screen Single Channel Syringe Pump

Model: HSP-S1

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

Main Features

-Intuitive interface with colorful screen, all-in-one information at a glance helps medical professionals to receive information in a vivid and comprehensive way.

-Compact and lightweight design allows easy moving and transferring.

-Caregivers can easily install or remove pumps thanks to the rotatable pole clamp.

-Automatically identifies various syringe types and sizes from 5ml to 60ml.

-Pumps stack and lock together and can be expanded from 2 to 12.

-Illumination mode facilitates medical care at night.

-Deliver the precise medication dosage to even your tiniest patients.

-Flow rates deliver with +/- 2% accuracy as low as 0.1 mL/h.

Specification

Infusion ModeMulti-Mode, Rate Mode, Time Mode, Weight Mode, Intermittent Infusion Mode, Programmable Mode, TPN Mode, TIVA Mode, Sequential Mode, Micro Mode, Loading Dose Mode, Drug Library Mode. Link mode for 2 units of hawk-i1/s1 connected with a USB cable
Applicable infusion setVarious brands of sterile syringes:5ml, 10ml, 20ml, 30ml, 50ml/60ml
Accuracy±2%
Infusion rate5ml syringe: 0.1-150ml/h,10ml syringe: 0.1-300 ml/h,20ml syringe: 0.1-600 ml/h30 ml syringe: 0.1-900ml/h,50 ml syringe: 0.1-1800ml/h, increment at 0.01ml/h
VTBI(0-9999.99) ml
Volume infused0-36000 ml
KVO rate(0.0.10~20.0)ml/h
BOLUS rate5ml syringe: 0.1-150ml/h,10ml syringe:0.1-300ml/h20ml syringe: 0.1-600ml/h30 ml syringe: 0.1-900 ml/h,50 ml syringe: 0.1-1800 ml/h, increment at 0.01ml/h
Occlusion pressure13 levels
History record30000
AlarmSyringe disengaged, Occlusion, Infusion near empty, Infusion completion, No operation, AC fail, Low battery, Battery exhausted, Malfunction etc
FeaturesAnti-Bolus,WIFI, Anti-reverse detection,Double CPU, Key lock
WaterproofIPX3
Power consumption35VA
Size258*160*79mm
Net weight1.8KG
Power supplyAC:100-240V50/60Hz; DC:DC12V+1.2V
BatteryLi-Polymer 7.4V 1900mAh, more than 8 hours at 5ml/h
Operating conditionsTemperature: 5°C-40℃ Relative humidity:10~85% Atmospheric pressure:86.0kPa -106.0kPa
Storage conditionsTemperature:-20°C~+45C Relative humidity: 10~85% Atmosphere pressure: 50.0kPa-106.0kPa
Transport conditionsTemperature:-20°C~60C;Relative humidity: 10~95% Atmosphere pressure:50.0kPa-106.0kPa



HSP-S1 Syringe Pump

HSP-S1 Portable LCD Screen Single Channel Syringe Pump
