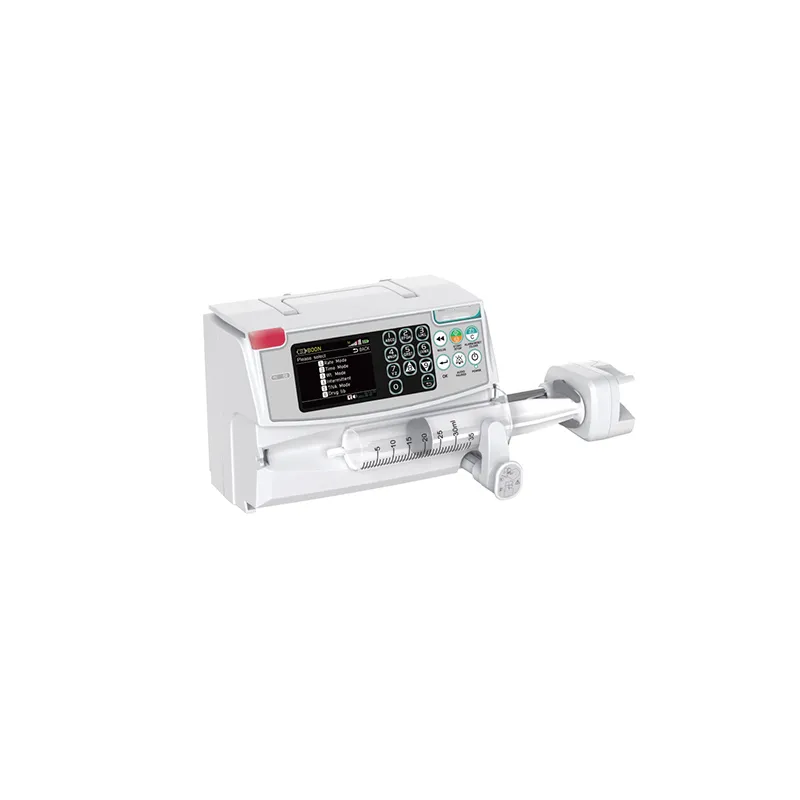

HSP-400III High Pressure Automated Syringe Pump

Model: HSP-400III

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description
Download

HSP-400III is a reliable syringe pump that automatically identifies various syringe types and sizes from 5ml to 60ml. Compact and light weight design allows easy moving and transferring.

Main Features

-Compact and light weight design allow easy moving and transferring.

-Automatically identifies various syringe types and sizes from 5ml to 60ml.

-Numeric and graphic pressure indicator helps caregivers identify occlusion in advance to prevent potential risks.

-Deliver the precise medication dosage to even your tiniest patients.

-Flow rates deliver with +/- 2% accuracy as low as 0.1 mL/h.

-Long-lasting battery: the battery life is long-lasting enough to last up to 6 hours at 5ml/h.

Specification

Infusion Mode	l Rate mode，Time mode，Weight mode，Intermittent mode，TPN mode，Drug library，Program mode，TIVA mode，Shift mode ，Dose mode，Loading Dose Mode，Micro Mode
Applicable infusion set	l Various brands of sterile syringes: 2ml, 5ml, 10ml, 20ml, 30ml, 50ml/60ml
Accuracy	l ±2%
Infusion rate	l 2 ml syringe: 0.1 - 150 ml/hl 5 ml syringe: 0.1 - 150 ml/hl 10 ml syringe: 0.1 - 300 ml/hl 20 ml syringe: 0.1 - 600 ml/hl 30 ml syringe: 0.1 - 900 ml/hl 50 ml (60ml) syringe: 0.1 - 1800 ml/h
VTBI	l (0-9999.99)ml
Volume infused	l 0-36000 ml
KVO rate	l 0.1-10 ml/h , increment：0.1ml/h
BOLUS rate	l 2 ml syringe: 0.1 - 150 ml/hl 5 ml syringe: 0.1 - 150 ml/hl 10 ml syringe: 0.1 - 300 ml/hl 20 ml syringe: 0.1 - 600 ml/hl 30 ml syringe: 0.1 - 900 ml/hl 50 ml (60ml)syringe: 0.1 - 1800 ml/h
Occlusion pressure	l 13 levels
History record	l 50000
Alarm	l Handle off，Syringe off，Empty，Occlusion，Battery exhaust，Low Battery，Near empty， Almost Done (infusion near over)，Finished，Use Battery，AC fail，No Operate
Features	l With KVO，bolus,Anti-reverse detection,Double CPU,Key lock
Optional function	l Nurse call，Wifi function，Dedicated syringe
Waterproof	l IP44
Power consumption	l 35VA
Power supply	l AC：100-240V 50/60Hz ；DC：DC12V±1.2V
Battery	l DC7.2V (Rechargeable lithium polymer battery, 2550mAh or 2550mAh×2) 8h at 5ml/h(1 battery) 16h at 5ml/h(2 batteries)
Operating conditions	l Temperature: 5℃-40℃l Relative humidity: 10-95% (no frosting) l Atmospheric pressure: 86.0kPa -106.0kPa
Storage conditions	l Temperature:-20℃～+45℃l Relative humidity: 10～95%(no frosting) l Atmosphere pressure: 50.0kPa～106.0kPa
Transport conditions	l Temperature: -20℃～60℃;l Relative humidity: 10～95% (no frosting)l Atmosphere pressure: 50.0kPa～106.0kPa
Size	l 230137139mm
Net weight	l 1.7KG

HSP-400III Syringe Pump

HSP-400III High Pressure Automated Syringe Pump
