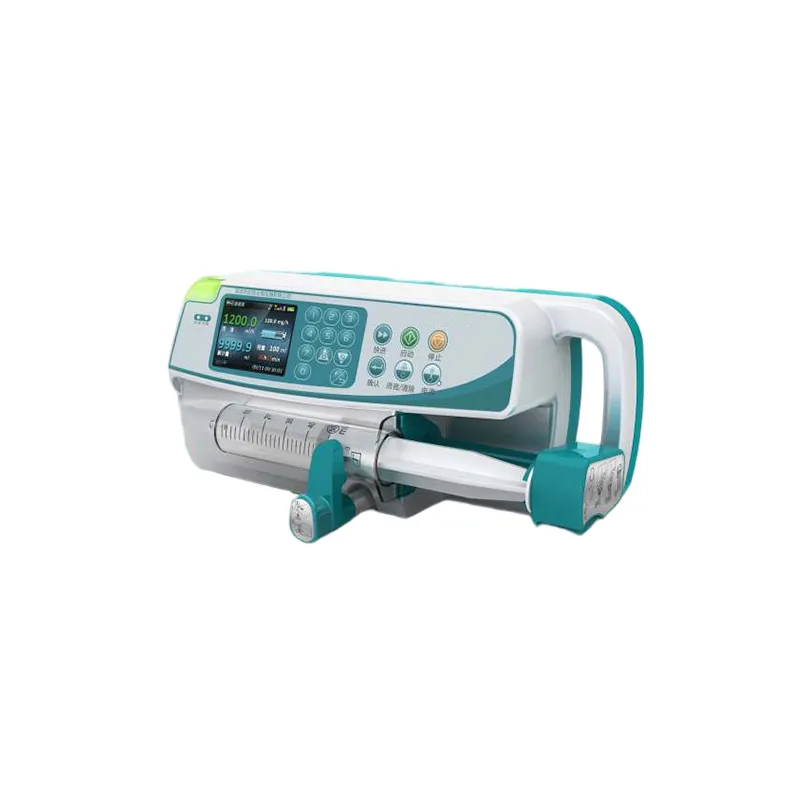

Syringe Pump
Model: HSP-400
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Large & colorful LCD display
-History records
-RS232 interface
-Adjustable buzzer volume
-Anti-bolus function
-90°rotatable pole clamp convenient for horizontal bar & vertical lV pole
-Unique syringe intelligent recognition technology
-Dynamically display the pressure
-Double CPU ensuring safe infusion
-Various Visual and audible alarms
Specification
| Infusion Mode | l Rate Mode, Time Mode, Dose Mode Optional:intermittent infusion mode,Drug library mode |
| Applicable infusion set | l Various brands of sterile syringes: 5ml, 10ml, 20ml, 30ml, 50ml/60ml |
| Accuracy | l ±2%(after syringe correct calibration) |
| Infusion rate | l 5ml syringe:0.1-150ml/hl 10ml syringe:0.1-300ml/hl 20ml syringe:0.1 -600ml/hl 30ml syringe:0.1 -900ml/hl 50ml syringe:0.1 -1500ml/h |
| VTBI | l (0-1000)ml |
| Volume infused | l 0-9999.9 ml |
| KVO rate | l 0.1~2mlh adjustable; default value:0.1ml/h |
| BOLUS rate | l 5ml syringe: 100-150ml/hl 10mlsyringe:100-300ml/hl 20mlsyringe:100-600ml/hl 30ml syringe:100-900ml/hl 50ml syringe:100-1500ml/h |
| Alarms | l Infusion completion, Empty, Occlusion, Near completion, Low battery ,Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc |
| Waterproof | l IPX3 |
| Power consumption | l 25VA |
| Power supply | l AC：100-240V 50/60Hz ；DC：DC12V±1.2V |
| Battery | l Li Polymer 7.4V 1900mAh,Recharge time:10h with power on, 3h with power off |
| Nurse call alarm | l Optional |
| Operating conditions | l Temperature:5℃-40℃.l Relative humidity:10-95%.l Atmosphere pressure:86-106kPa |
| Storage conditions | l Temperature:-20℃～45℃l Relative humidity: 10～95% l Atmosphere pressure: 50kPa～106kPa |
| Transport conditions | l Temperature:-20~60℃l Relative humidity:10~95%℃l Atmosphere pressure:50~106kPa |
| Size | l 300X130X125mm(length x width x height) |
| Net weight | l 1.8KG |
| Classification | l Class l,type CF |
| Occlusion pressure | l (40~160)kPa |
