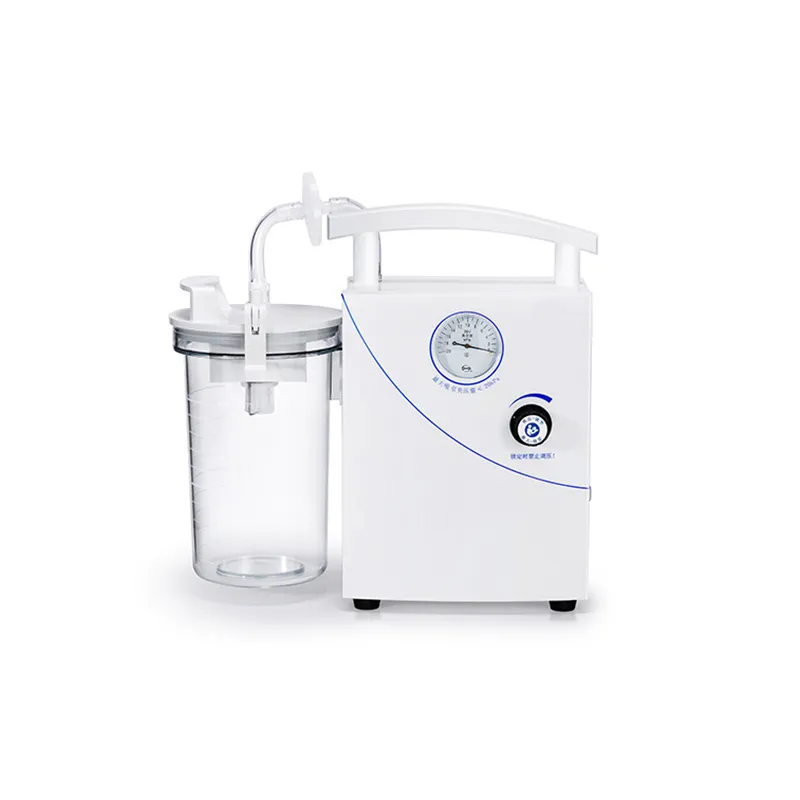

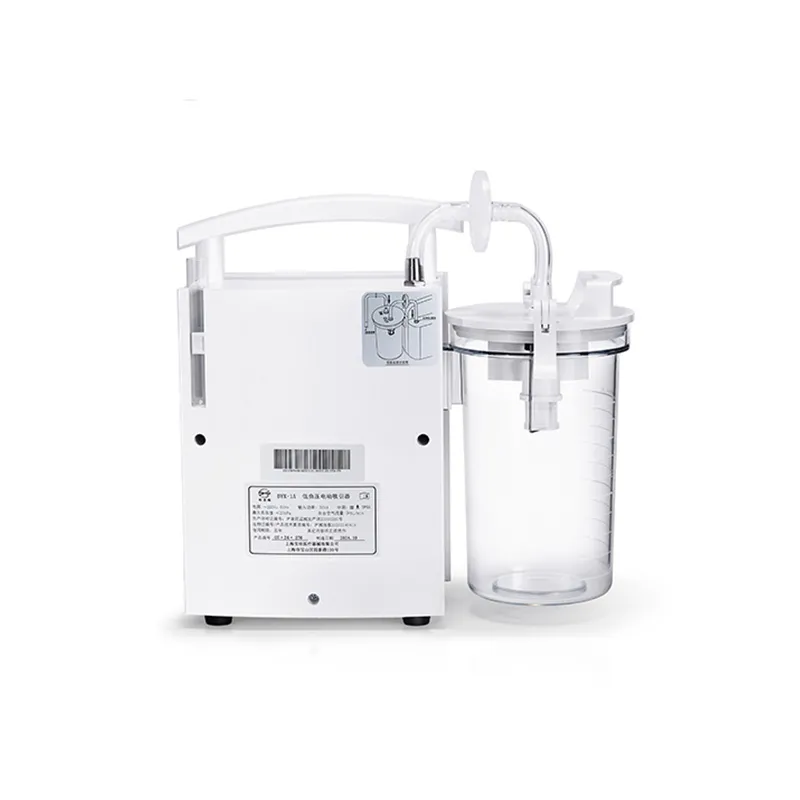

HSP-DYX1A Portable Medical Low Vacuum Electric Suction Unit

Model: HSP-DYX1A

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

Main features

Low-Vacuum Electric Suction Unit Model HSP-DYX1A is a special apparatus that is used for sucking amniotic fluid and phlegm from neonates and infants born by cesarean section. It can also be used for postoperatively suctioning in the gastroenteric or in the department. Of surgery and internal medicine.



Main Features

1. Safely powered by electromagnetic pump, no positive pressure producing.

2. The air emitted by the pump is prefiltered by a bacterial filter which provides an effective barrier against contamination and protection to the environment.

3. Vacuum regulator with a locked set can be optionally regulated according the requirements.

4. Transparent plastic bottle with overflow preventive valve can be sterilized. The unit comes complete with a choice of 1000ml or 2000ml capacity jar.

5. Body made of plastic material is light, compact, and convenient for carrying and operating.



Specification

ModelHSP-DYX1A
Max Vacuum18±1.5KPa(135±11mmHg)
Flow rate≥6L/min
Noise≤55dB(A)
Jar capacity1000ml(PC)
Input30VA

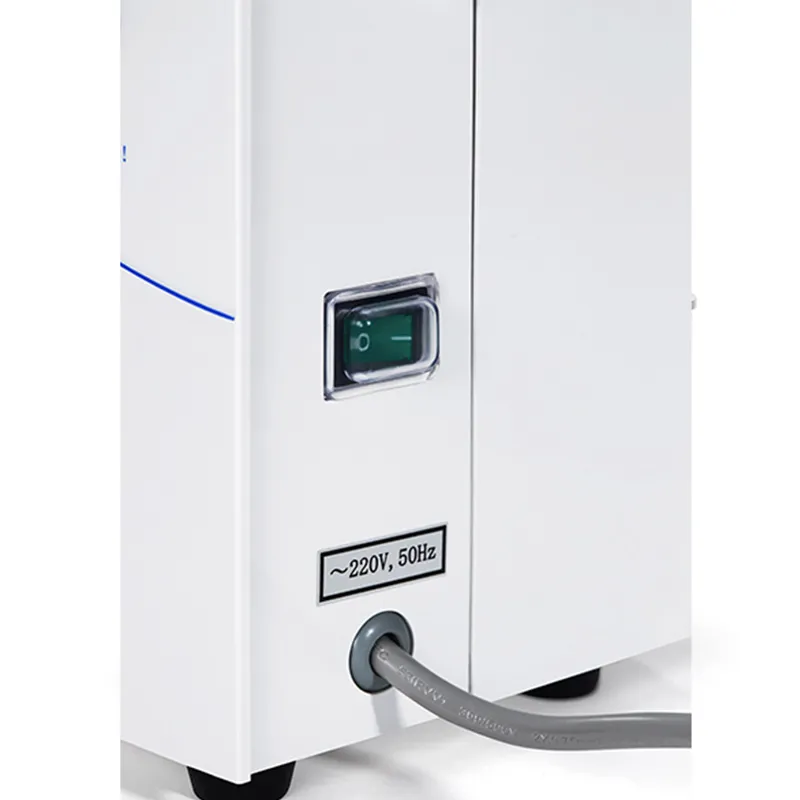

Power supplyAC220V  50Hz
Dimemsion385mm×185mm×350mm
G.W./N.W.3kg/2.5kg
