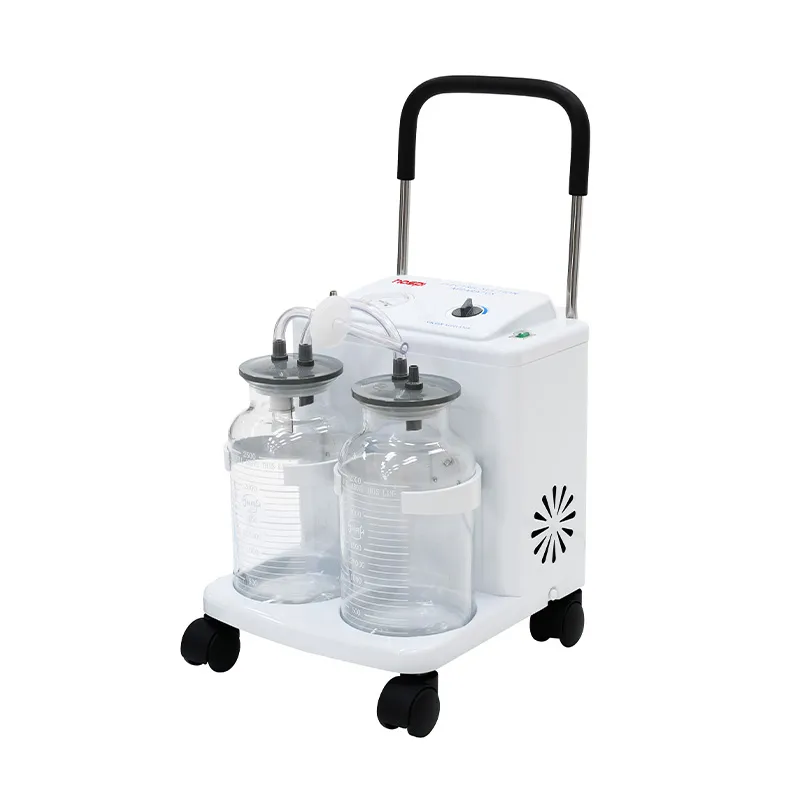

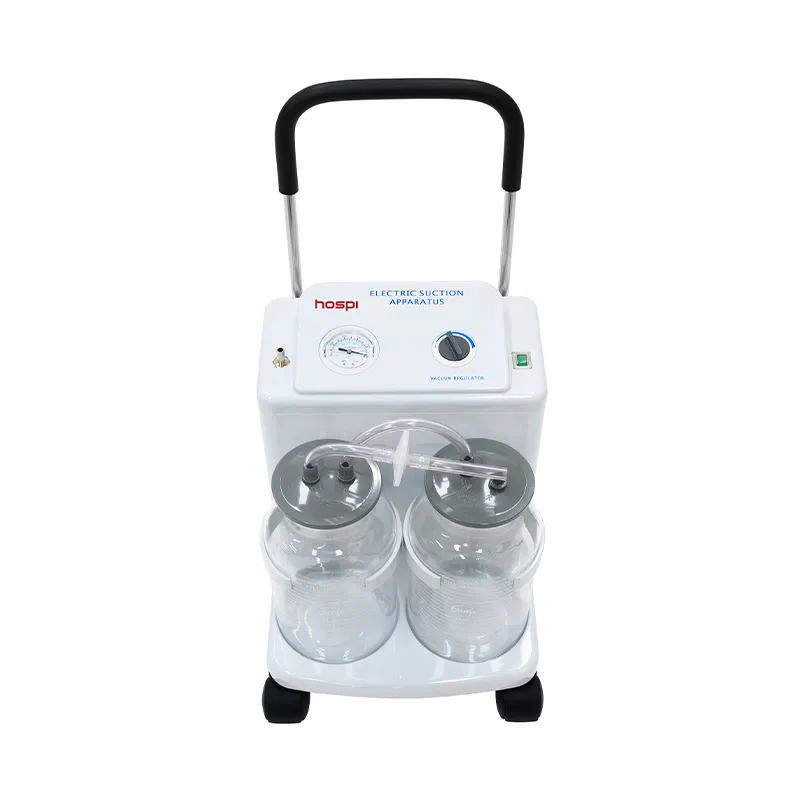

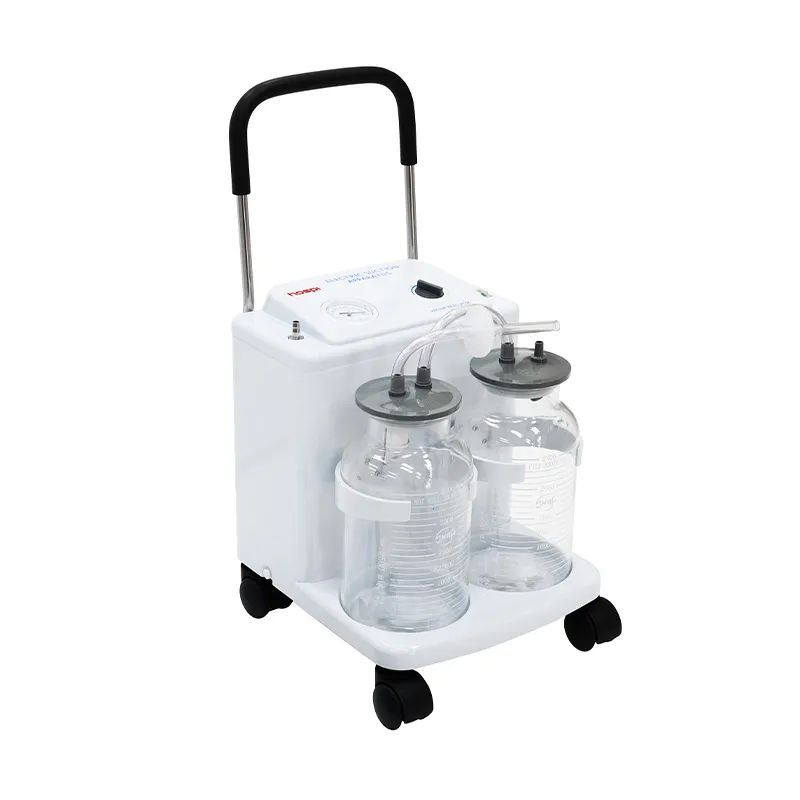

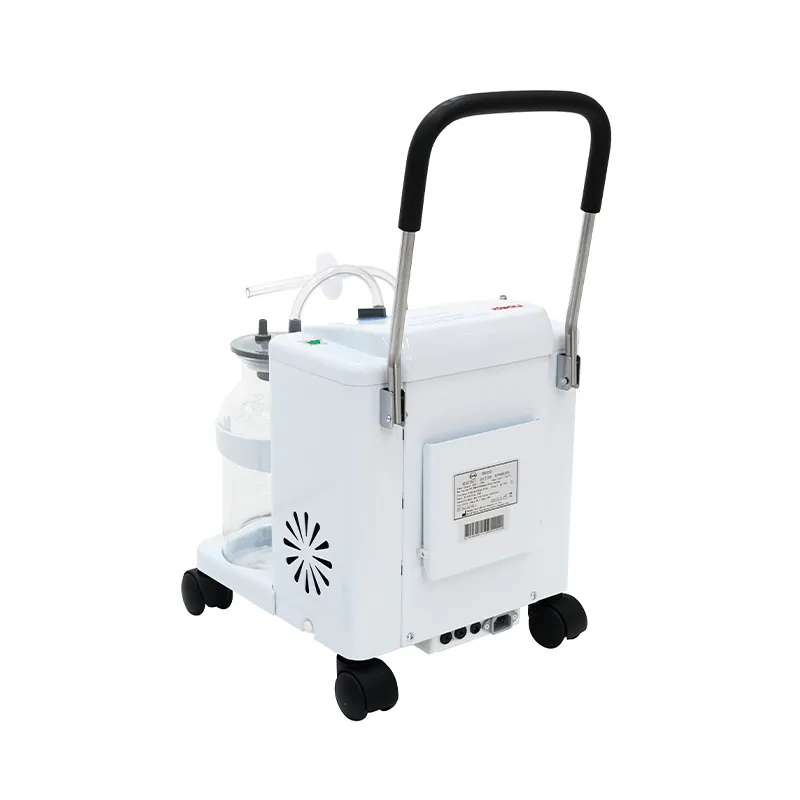

HSP-YX932D High-vacuum Suction Unit for Surgical Procedures

Model: HSP-YX932D

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

HSP-YX932D Electric High-vacuum Suction Unit , intended for extracting various mucus such as purulence, blood and phlegm from body cavity or wound in hospitals or center of social medical service, is a mobile suction unit with a high flow, high vacuum and a novel style. It can satisfy most demands in operating rooms.

Main Features

1. An oil-less vacuum pump, double piston cylinder with a high flow, high vacuum, the pump needs maintenance free.

2. Move smoothly and freely with a swing-type pull handle; the accessory-case for placing foot-switch and power supply wire makes it convenient for movement or storage.

3. Large-bore and large capacity bottles with stopper having sealing ring, easy to clean and to open or close.

4. The overflow protection device is intended to prevent liquid or solid particles form entering the intermediate tubing and pump.

5. Transparent non-toxic PVC hoses and unique connections are easy to observe and link.

6. The level of vacuum required in clinic can be controlled by adjusting the regulator knob, and a synchronized indication on the vacuum meter.

7. Stability and durability, low noise, safe and reliable to operate.


Specification

Max vacuum≥0.09MPa (680mmHg)
Adjustable vacuum range0.02MPa~0.09MPa(150~680mmHg)
Flow rate≥32L/Min
Noise≤60dB(A)
Storage bottles2500mL×2(glass)
Power supplyAC220V  50Hz
Input150VA
Dimension370mm×310mm×390mm
Package Dimension400mm×380mm×470mm
G.W./N.W.14kg/12kg
