Spectrophotometer

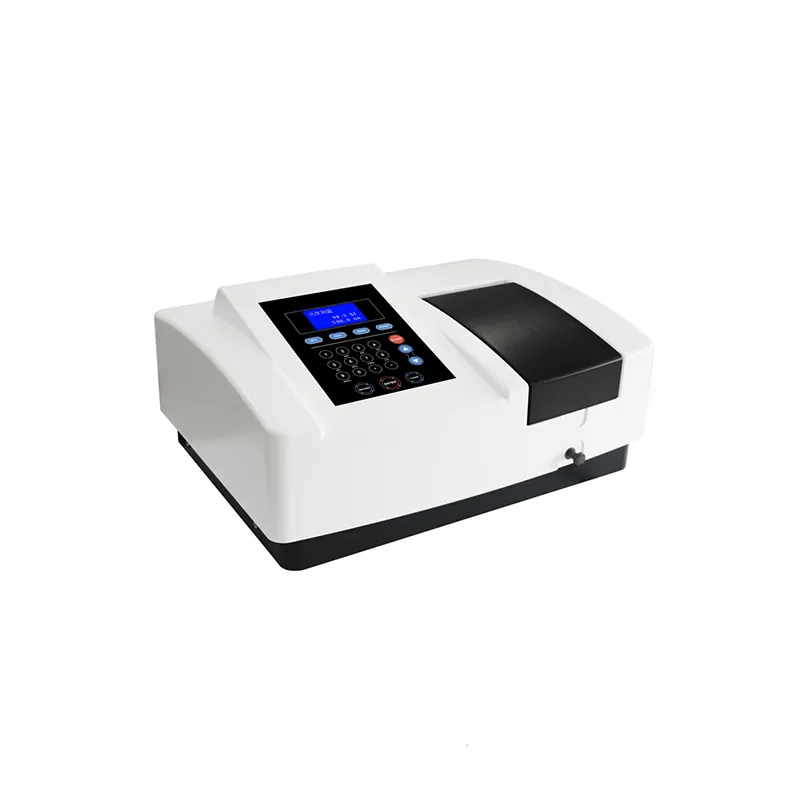

HSP-723 Spectrophotometer
HSP-723 Spectrophotometer

HSP-723 Spectrophotometer

Model: HSP-723

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

Main Features

-The instrument adopts 128*64 position array LCD, which can display standard curve and test data directly. The host can store test data and choose printer to print.

-USB data output interface

-It can build standard curve in a straight line and carry out relevant tests with standard curve. It can continuously test and store 200 sets of data, and can store 100 standard curves. Users can name them directly and call them conveniently according to their names.

-Unique optical system, 1200 high performance gratings and imported receivers are designed to ensure the excellent performance of the instrument.

-Automatic wavelength calibration and automatic wavelength setting

-Wide sample room, can accommodate 5-100mm colorimetric dishes of various specifications

-Ultra-thin keys, simple and convenient operation

-With the most advanced 32-bit microcontroller ARM11, its main frequency can reach 533MHZ, and its performance is stable.

-Fully enclosed monochromator structure, fully enclosed structure and all optical mirror surfaces are coated with SiO 2 protective film to ensure that optical components are not affected by environment and gas.


Specification

Wavelength Range320-1100nm
Wavelength Accuracy±1nm
Spectral Bandwidth4nm
Wavelength0.5nm
Stray Light≤0.1%T @360nm
Photometric Accuracy0.5%T
Photometric0.2%T
Luminosity Range0-200%T,-0.301-3.000A
Baseline Linearity±0.004A
stability±0.002A/h @500nm
Display Range0-200%T, -0.3-3A, 0-9999C
display System128*64 LCD
Wavelength DrivingAutomatic wavelength
Energy (lamp source)Imported tungsten lamp
Net Weight12kg
Analysis SoftwareOptional
Print InterfaceOptional
