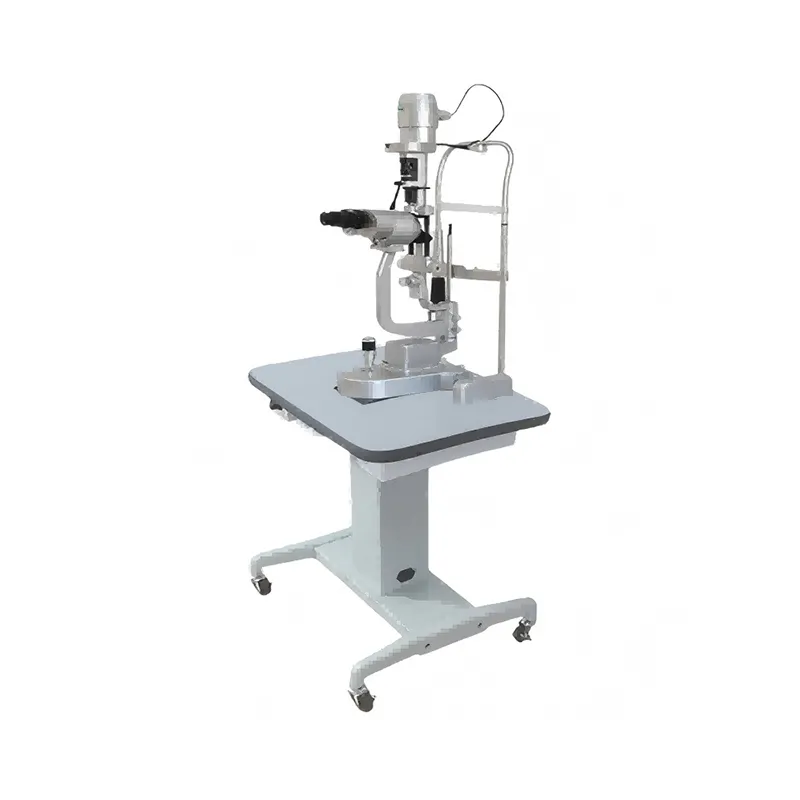

Slit Lamp
Model: HSP-AME5P
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Basic slit lamp with converging optical path
-2-steps magnifications: 10X, 16 X
-All of the lens are multi-coated, mildewproof and anti-reflection
Specification
| PARAMETER | SPECIFICATION |
| Microscope Type | Converging Stereoscope |
| Magnification | 2 steps magnifications |
| Magnification | 10x , 16x |
| Adjustable Range of PD (mm) | 55~85 |
| Adjustable Diopter | >±7D |
| Slit Width(mm) | 0-10mm adjustable |
| Slit Height(mm) | 1-10mm adjustable |
| Slit Angle | 0-180° |
| Light Spot Diameter (mm) | Φ10、Φ8、Φ5、Φ3、Φ2、Φ0.2 |
| Filters | Heat Absorption, Grey, Red Free, Cobalt Blue |
| Illumination Bulb | 12V / 30W or 12V/50W halogen bulb |
| Fixed view lamp | Red LED |
| Voltage/frequency | AC220V/50 Hz; AC110V/60Hz |
| Power | 80VA |
