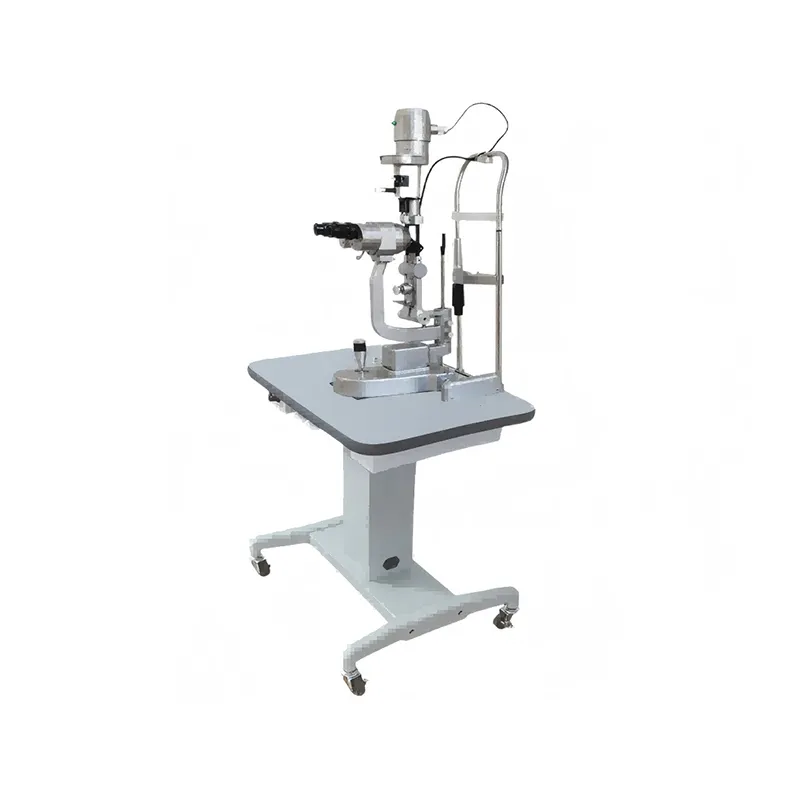

Slit Lamp
Model: HSP-AME5E
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Universal slit lamp with 3-steps magnifications:10X,16 X,25X
-The slit can be inclinated.
-Stable optical performance gives a super clear optical image, afford broader field of view
-14mm aperture
Specification
| PARAMETER | SPECIFICATION |
| Microscope Type | Converging Stereoscope |
| Magnification | Three-step magnifications |
| Eyepiece | 10X，16X |
| Magnification | 10x , 16x , 25x |
| Adjustable Range of PD (mm) | 55~85mm |
| Adjustable Diopter | >士7D |
| Slit Width(mm) | 0-14mm adjustable |
| Slit Height(mm) | 1-14mm adjustable |
| Slit Angle | 0-180° |
| Slit Inclination | 5°, 10°, 15°, 20°，4 steps for choose |
| Aperture Diameter (mm) | Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 |
| Filters | Heat Absorption, Grey, Red Free, Cobalt Blue |
| Illumination Bulb | 12V / 30W or 12V/50W halogen bulb |
| Fixed Lamp | Red LED |
| Voltage/frequency | AC220V, 50Hz or AC110V, 60Hz |
| Power | 80VA |
