Slit Lamp

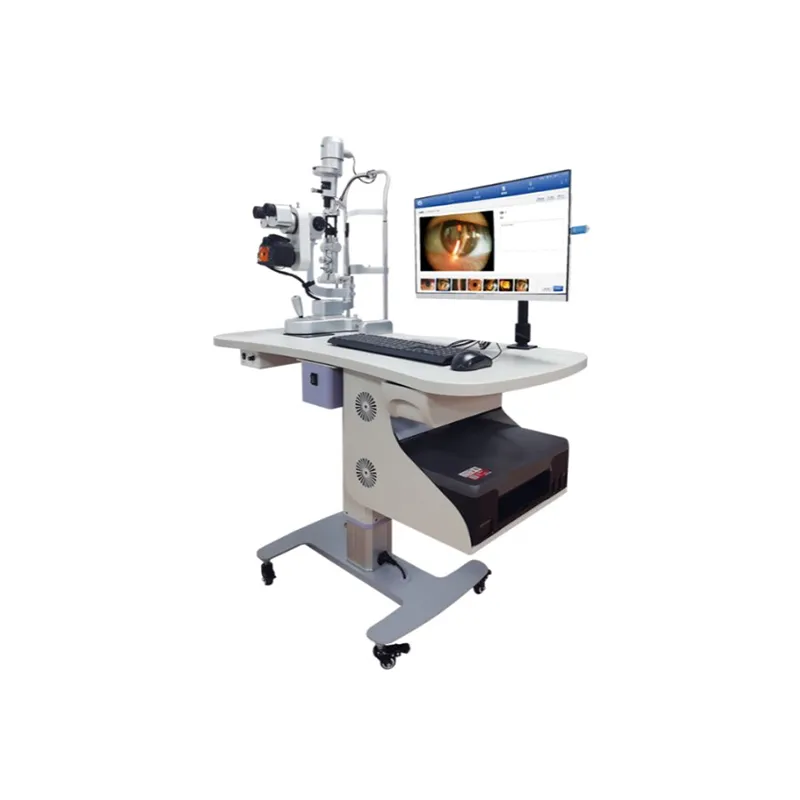

HSP-AME5DII Slit Lamp
HSP-AME5DII Slit Lamp

HSP-AME5DII Slit Lamp

Model: HSP-AME5DII

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Share:

Main Features

-lmage transferred from digital camera to software immediately and directly

-High resolution digital imaging.

-Digital capture from multiple sources

-Comprehensive patient data and imaging.

-Vast online storage hight level of data security.

-lmage processing, such as measurement, note, merge edit, magnify, bright adjust, color adjust and so on.

-Video and images Real-time display,convenient for patient education and teaching

Specification

PARAMETERSPECIFICATION
Microscope TypeParallel Stereoscope
MagnificationFive steps magnifications
Eye piece12.5x
Total Magnification and Diameter of Visual Field(mm)6x, 10x, 16x, 25x, 40x
Adjustable Range of Pupil Distance(mm)55~85
Adjustable Diopter>士7D
Slit Width(mm)0-14 adjustable
Slit Height(mm)1-14 adjustable
Slit Angle0~180°
Slit Inclination5°, 10°, 15°, 20°
Light Spot Diameter (mm)Φ10,Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2
FiltersHeat Absorption, Grey, Red Free, Cobalt Blue
Illumination Bulb12V / 30W or 12V/50W halogen bulb
Fixed view lampRed LED
Background lightHalogen lamp
Voltage/frequencyAC220V,50Hz or AC110V, 60Hz
Power80VA
CameraCanon EOS
AdaptorIntegrated beam splitter & camera adaptor
JoystickWith shutter button
ComputerUsually Lenovo
Softwareimage process software
