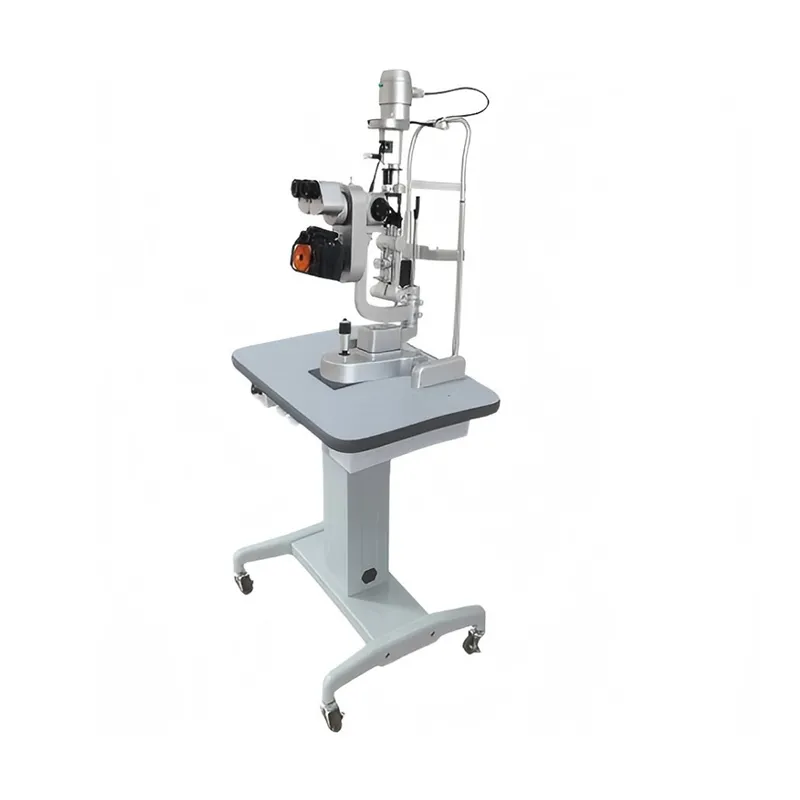

Slit Lamp
Model: HSP-AME5DI
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Slit lamp adopts Galieo optical path design with high depth of view and strong sense of stereo.
-Equipped with Canon DSLR Camera provides clear observation.
-Movebase with shutter button joystick operation smoothly, easy to take picture
Specification
| PARAMETER | SPECIFICATION |
| Microscope Type | Parallel Stereoscope |
| Magnification | Five steps magnifications |
| Eye piece | 12.5x |
| Total Magnification and Diameter of Visual Field(mm) | 6x, 10x, 16x, 25x, 40x |
| Adjustable Range of Pupil Distance(mm) | 55~85 |
| Adjustable Diopter | >±7D |
| Slit Width(mm) | 0-14 adjustable |
| Slit Height(mm) | 1-14 adjustable |
| Slit Angle | 0~180° |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Light Spot Diameter (mm) | Φ10, Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2 |
| Filters | Heat Absorption, Grey, Red Free, Cobalt Blue |
| Illumination Bulb | 12V / 30W or 12V/50W halogen bulb |
| Fixed view lamp | Red LED |
| Voltage/frequency | AC110V/60Hz or AC220V/50Hz |
| Power | 80VA |
| Chin-rest Vertical Movement | ≥80mm |
| Base Longitudinal Movement | ≥90mm |
| Base Lateral Movement | ≥100mm |
| Base Vertical Movement | >30mm |
| Joystick | with shutter button |
| Whole Packing Volume | 0.30m3 |
