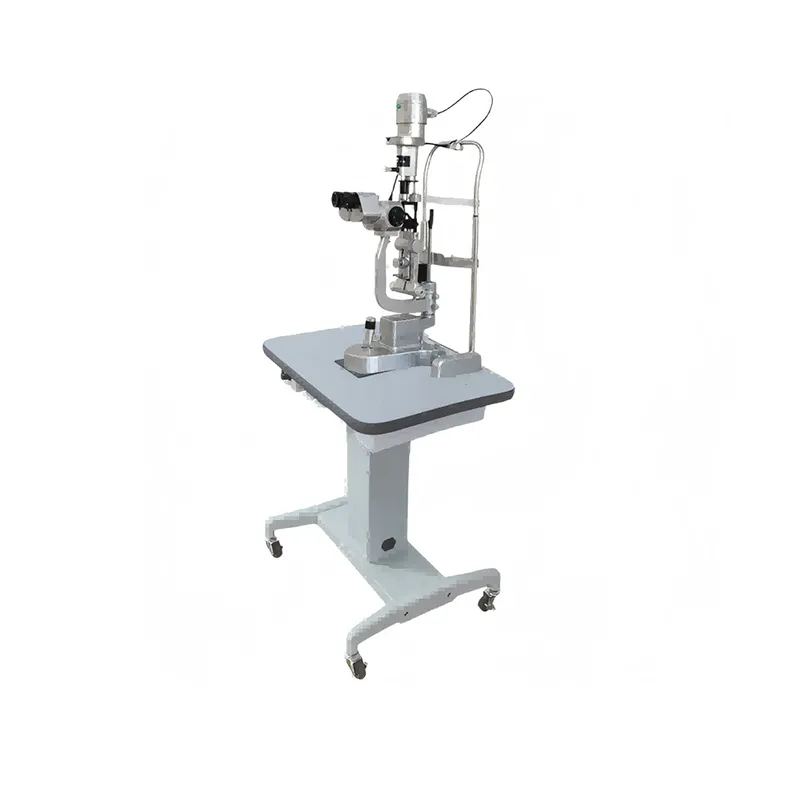

Slit Lamp
Model: HSP-AME5D
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-Galilean unparalleled Optical give this slit lamp high depth of field view.
-Galilean optical path provides high depth of view and large -angle observation.
-5-step revolving drum magnifications, more convenient
-All of the lens are multi-coated, mildewproof and anti-reflection
-Excellent optical materials gives stable performance
Specification
| PARAMETER | SPECIFICATION |
| Microscope Type | Parallel Stereoscope |
| Magnification | Five steps magnifications |
| Eye piece | 12.5x |
| Total Magnification and Diameter of VisualField(mm) | 6x, 10x, 16x, 25x, 40x |
| Adjustable Range of Pupil Distance(mm) | 55~85 |
| Adjustable Diopter | ＞±7D |
| Slit Width(mm) | 0-14mm adjustable |
| Slit Height(mm) | 1-14mm adjustable |
| Slit Angle | 0~180° |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Light Spot Diameter (mm) | Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 Or Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2 |
| Filters | Heat Absorption, Grey, Red Free, Cobalt Blue |
| Fixed view lamp | Red LED |
| Illumination Bulb | 12V / 50W or 12V/30W halogen bulb |
| Background Light | Halogen lamp |
| Voltage/frequency | AC220V,50Hz or AC110V, 60Hz |
| Power | 80VA |
| Chin-rest Vertical Movement | >80mm |
| Base Longitudinal Movement | >90mm |
| Base Lateral Movemen | >100mm |
| Base Vertical Movement | >30mm |
