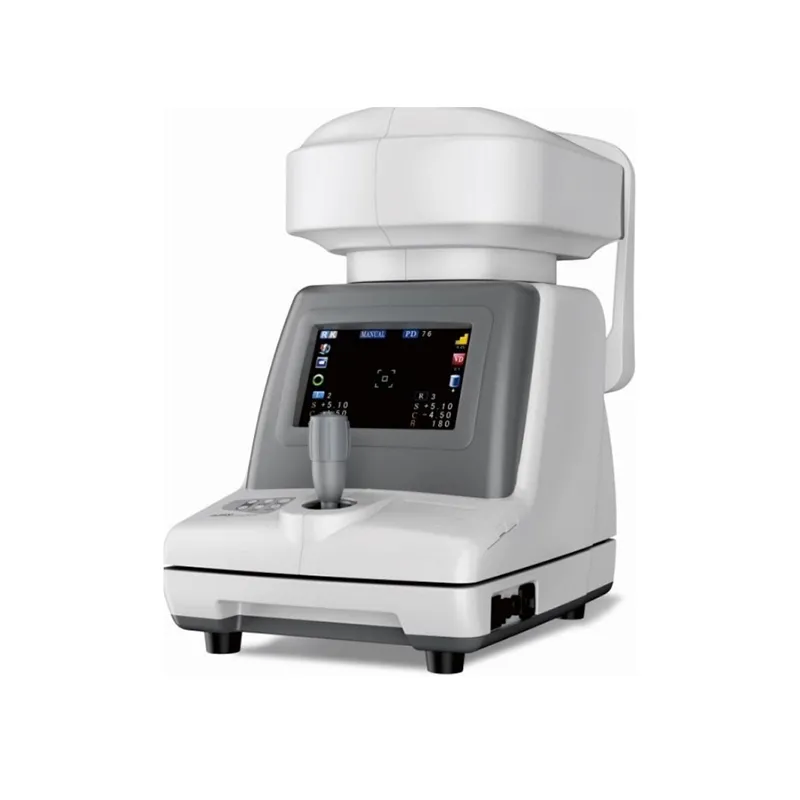

Model: HSP-FA6800
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-FA6800
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
1.7″ TFT LCD monitor
-Bigger, better monitor and icon-display menu for easier operation and settings.
2.Refractive measurement with Hexagon prism
-With high quality of hexagon prism and highly sensitive CCD, it provides unmatched accuracy and reliability.
3.Motorized joystick (HSP-FA6800)
-A motorized joystick with auto vertical tracing mode is adopted, so operation is easier.
4.Auto focus function
-Just move, it will automatically focus the eye and get the value.
Specification
| Retractometer | |
| Sphere | -20~+20D(VD=12) 0.125D step |
| Cylinder | -8~+8D 0.125D step |
| Axis | 0~180° (1° step) |
| PD | 45~88mm, 1mm step |
| VD | 0mm, 12mm, 13.75mm |
| Min.Pupil Size | Ø2.0mm |
| Keratometry | |
| Radius of curvature | 5.0~10mm (increment: 0.01mm) |
| Corneal power | 33.75~67.50D (when corner equivalent refractive index is 1.337)(increment selectable from 0.12, 0.25D) |
| Corneal astigmatism | 0.0~8.00D (increment selectable from 0.12,0.25D) |
| Axis | 1~180° (increment: 1°) |
| Corneal diameter | 2.0~14.0mm (increment: 0.1mm) |
| Memory of data | 10 measure value for each right and left eye |
| Radius of curvature | 5.0~10mm (increment: 0.01mm) |
| Others | |
| Chart | Follow-up colorful fogging chart system |
| Display | 7″ TFT LCD |
| Power supply | 220V±10% 50Hz 60VA |
| Thermal printer | |
| Dimension | FA-6800: 514mmX284mmX465mmFA-6500: 478mmX268mmX472mm |
| Weight | ~15.5kg |
