Ophthalmic Refractometer

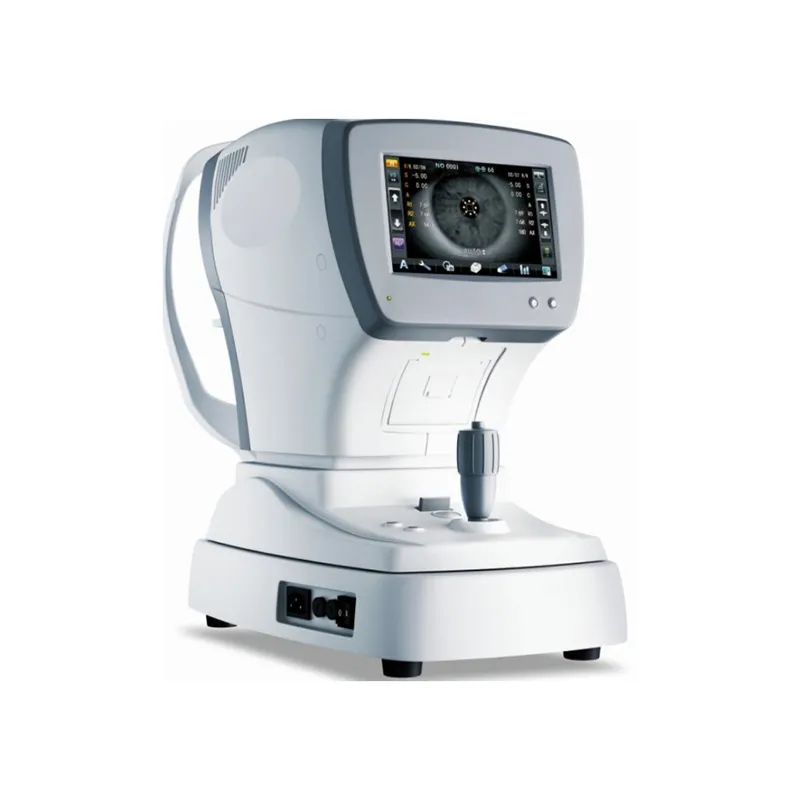

HSP-FA6500 Auto Refractometer(Keratometry optional)
HSP-FA6500 Auto Refractometer(Keratometry optional)

HSP-FA6500 Auto Refractometer(Keratometry optional)

Model: HSP-FA6500

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support



Share:

Main Features

1.7″ TFT LCD monitor

-Bigger, better monitor and icon-display menu for easier operation and settings.

2.Refractive measurement with Hexagon prism

-With high quality of hexagon prism and highly sensitive CCD, it provides unmatched accuracy and reliability.

3.Motorized chinrest (HSP-FA6500)

-Operator can easily adjust the chinrest with switch located on the operator side and enables speedy reading.

4.Auto focus function

-Just move, it will automatically focus the eye and get the value.

5.HSP-FA6500  with function of tilting screen

-Tilting screen function that allows wide variance of access whether the operator is sitting or standing.

Specification

Retractometer
Sphere-20~+20D(VD=12) 0.125D step
Cylinder-8~+8D 0.125D step
Axis0~180° (1° step)
PD45~88mm, 1mm step
VD0mm, 12mm, 13.75mm
Min.Pupil SizeØ2.0mm
Keratometry
Radius of curvature5.0~10mm (increment: 0.01mm)
Corneal power33.75~67.50D (when corner equivalent refractive index is 1.337)(increment selectable from 0.12, 0.25D)
Corneal astigmatism0.0~8.00D (increment selectable from 0.12,0.25D)
Axis1~180° (increment: 1°)
Corneal diameter2.0~14.0mm (increment: 0.1mm)
Memory of data10 measure value for each right and left eye
Radius of curvature5.0~10mm (increment: 0.01mm)
Others
ChartFollow-up colorful fogging chart system
Display7″ TFT LCD
Power supply220V±10%  50Hz  60VA
PrintThermal printer
DimensionFA-6800: 514mmX284mmX465mmFA-6500: 478mmX268mmX472mm
Weight~15.5kg
