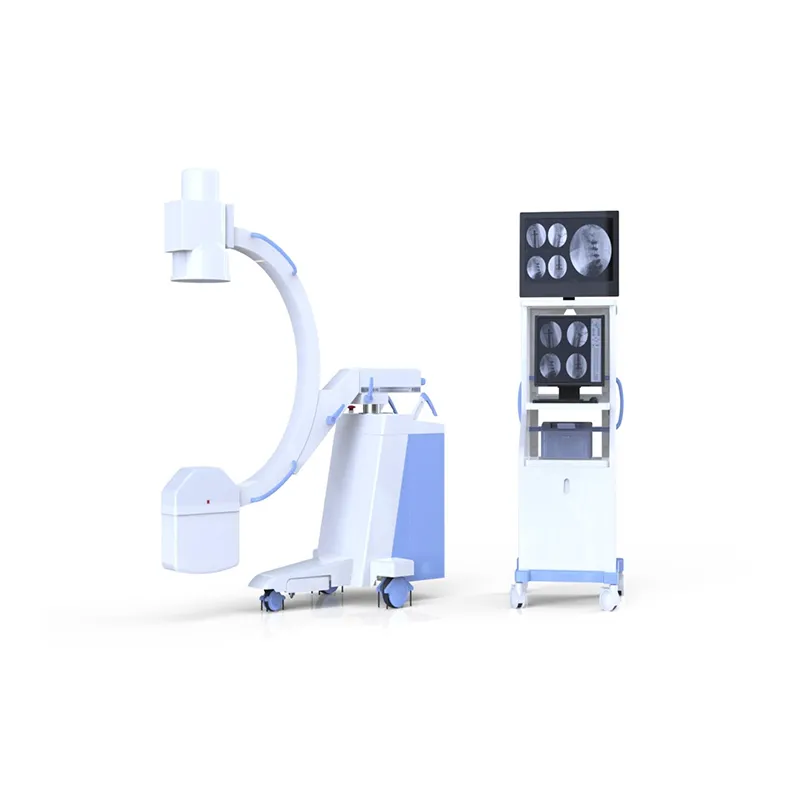

Digital X-ray-HSP-PLX112B
Digital X-ray-HSP-PLX112B

Digital X-ray-HSP-PLX112B

Share:
Inquire Now Add to Basket Next Product

Product Description

1.      With a compact appearance, and easy to operate

2.      Unique base electric auxiliary support arm design, it's more security for using.

3.      A unique hand-held controller design, convenient to operate

4.      With a high-quality knockdown X-ray generator to reduce radiation

5.      With the Perspective KV,MA automatically track fluoroscopy to make the image brightness and clearness optimum

6.      Toshiba image intensifier, the quality is stable and reliable, a good image clarity

7.      Clinical Video system with high performance,8 images storage volume, and two 14” HR monitors

8.      Installation of dense grain grids, to further enhance image sharpness


Specification

Fluoroscopic Capacity
Max rated capacity: Tube Current 4mA, Tube Voltage 120kV
Automatic Fluoroscopy: Tube Voltage: 40kV~120kV adjust
Automatically
Tube Current: 0.3mA~4mA set manually
Manual Fluoroscopy: Continuous Tube Voltage: 40kV~120kV
Continuous Tube Current: 0.3mA~4mA
Pulse Fluoroscopy: Continuous Tube Voltage 40kV~120kV
Continuous Tube Current 4.1mA~8mA
Photography Capacity
Max rated capacity: 5 KW
Tube Voltage and Cur-
Rent Combination: 40kV~49kV 1 ~180 mAs
50kV~59kV 1 ~140 mAs
60kV~69kV 1 ~125 mAs
70kV~79kV 1 ~110 mAs
80kV~89kV 1 ~100 mAs
90kV~99kV 1 ~80 mAs
100kV~109kV 1 ~63 mAs
110kV~120kV 1 ~50 mAs
Plate holder Size: 200mm*250mm(8'*10')or
250mm*300mm(10'*12')
X-ray Tube
X-ray Tube Special for High Frequency
Fixed anode Dual-focus: Large focus: 1.5, small focus: 0.3
Inverter Frequency: 40KHz
Thermal capacity: 35KJ (47KHU)
Video System
Image Intensifier: Image Intensifier made by Toshiba (9')
CCD Vidicon: Ultra low-light CCD camera imported from Japan
Monitor: Horizontal 1000 lines and vertical 800 lines, Bandwidth: 12.5MHz,
Image/sec: 75
CCU(central control): Recursive Filter: K=8, 8 images storage, Image upright, image overturn, positive & Negative image; LIH(last image freeze, and OSD(monitor display)
