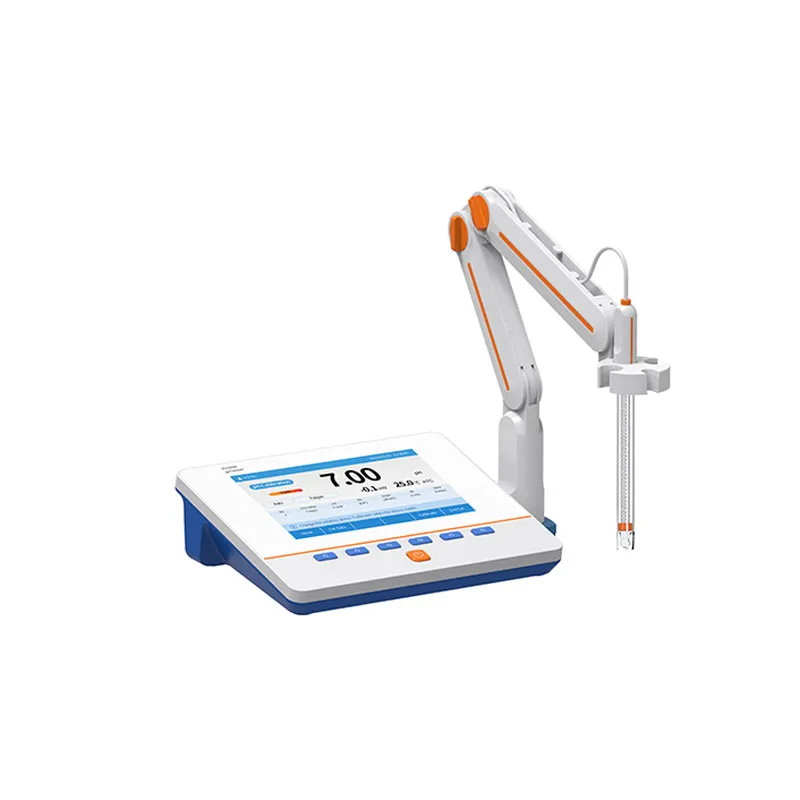

Model: HSP-PH400F
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-PH400F
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-High resolution LCD display, 7.0 inches.
-Multi-reading feature allows auto-read, timed-read and continuous-read.
-Automatic/Manual temperature compensation ensures accurate results.
-Auto-hold feature senses and locks the measurement endpoint.
-Data Storage 500 sets (GLP-compliant).
-USB and RS-232 communication.
-Reset feature automatically resumes all settings back to factory default options.
-IP54 waterproof.
-1-5 points calibration with Standard Recognition.
-Configurable pH buffer calibration with pre-set groups for NIST, DIN, GB, USA, MERCK, and GOST standards.
-Automatic electrode diagnosis with pH slope and offset display.
Specification
| Model | HSP-PH400F | |
| Parameters | pH/Temp.(mV) | |
| pH | Range | -2.000-20.000pH |
| Resolution | 0.1,0.01,0.001pH | |
| Accuracy | ±0.002 pH | |
| Calibration Points | Up to 5 | |
| Standard Customization | Yes | |
| Standard Recognition | NIST, GB, DIN, USA,MERK, GOST buffers | |
| mV | Range | -2000.00~2000.00mV |
| Resolution | 0.1,0.01 mV | |
| Accuracy | ±0.1 mV or ±0.03% | |
| Temperature | Range | (-10.0~135.0)C,(14.0~275.0)F |
| Unit | ℃℉ | |
| Resolution | 0.1 | |
| Accuracy | ±0.1℃ | |
| Measurement | Reading Mode | Auto Read(Fast,Medium,Slow), Timed, Continuous |
| Reading Prompts | Reading,Stable,Locked | |
| Temp. Compensation | ATC,MTC | |
| Data management | Data Storage | 500 results each |
| GLP Features | Yes | |
| Inputs | pH Electrode | BNC(Q9) |
| Temp.Probe | 4-pin aviation connector | |
| Outputs | USB | PC |
| RS 232 | printer | |
| Display options | Backight | Yes |
| Auto Shutdown | 1~60 min, off | |
| IP Rating | IPS4 | |
| Date and Time | Yes | |
| General | Power | EU Power Adapter (Input AC 230V/50HzOutput: DC20V/1000mA). Configurable power adapter option available. |
| Dimensions | 242x195x 68 mm | |
| Net Weight | 900g (1.98 lb.) | |
