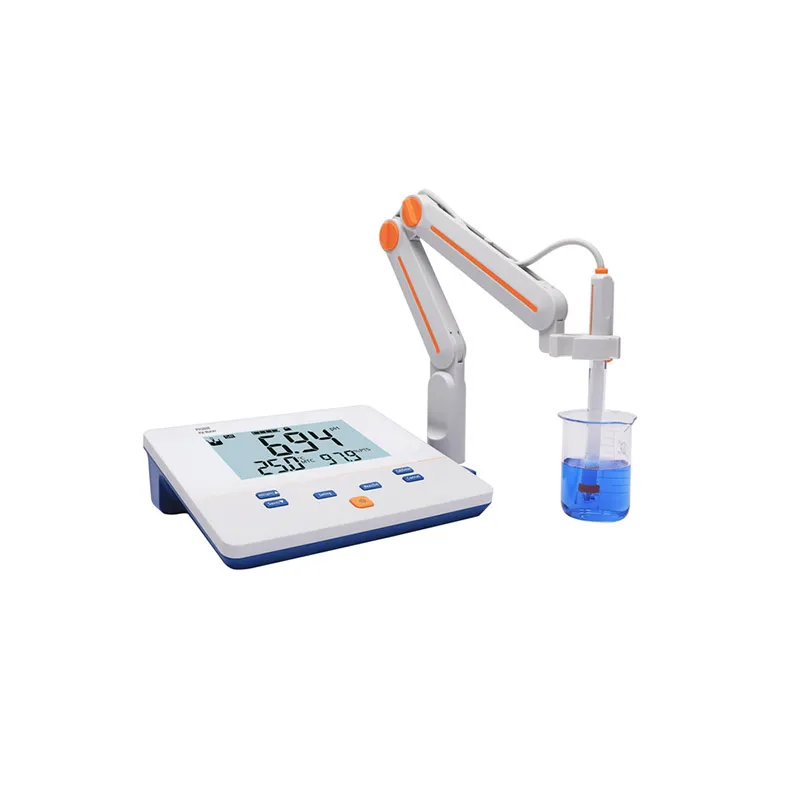

Model: HSP-PH200E
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-PH200E
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Main Features
-High resolution LCD display screen, 6.0 inches.
-Multi-reading feature allows auto-read and continuous-read.
-Automatic/Manual temperature compensation ensures accurate results.
-Auto-hold feature senses and locks the measurement endpoint.
-Data Storage 50 sets for each parameter.
-Reset feature automatically resumes all settings back to factory default options.
-IP54 waterproof.
-1-3 points calibration with auto/manual calibration.
-Automatic recognition of 1.68pH, 4.01pH, 7.00pH and 10.01pH pH standard buffer solutions.
-Manual calibration allows to custom standard solution.
-Automatic/Manual temperature compensation ensures accurate results.

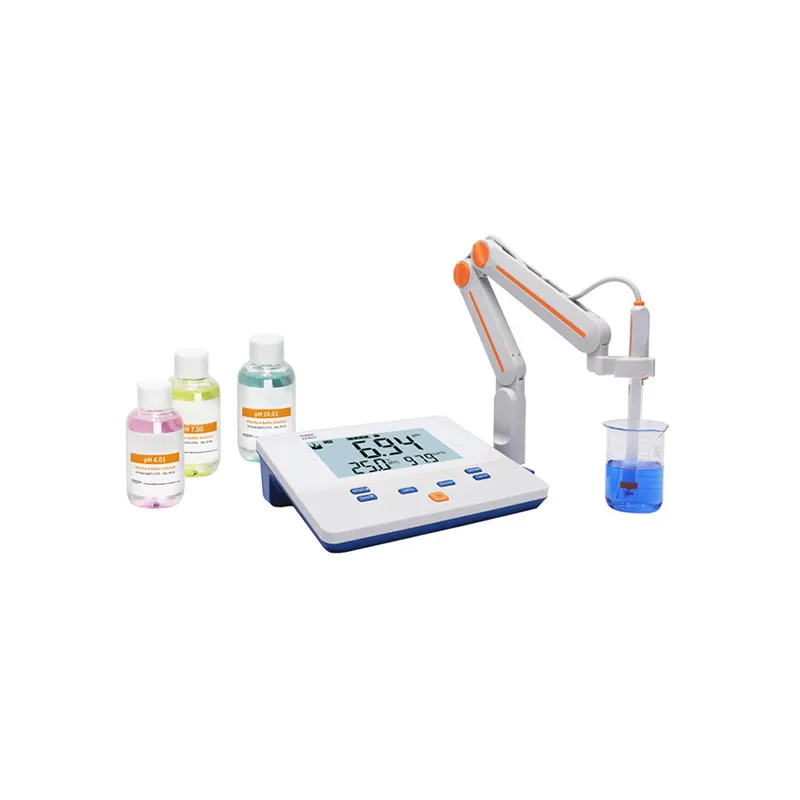

Includes
-E-301-QC 3 in 1 pH composite electrode
-pH standard solution(4.01, 7.00, 10.01) ,50ml/vial
-REX-5 electrode stand
Specification
| Model | HSP-PH200E | |
| Parameters | pH/Temp.(mV) | |
| pH | Range | -2.00~18.00 pH |
| Resolution | 0.01 pH | |
| Accuracy | ±0.01 pH | |
| Calibration Points | Up to 3 | |
| Standard Recognition | NIST buffers (pH1.68, pH4.01, pH7.00, pH10.01 ) | |
| mV | Range | -1999 to 1999 mV |
| Resolution | 1 mV | |
| Accuracy | ±0.1%FS | |
| Temperature | Range | -5~110ºC |
| Unit | ºC | |
| Resolution | 0.1 | |
| Accuracy | ±0.2 | |
| Measurement | Reading Mode | Auto Read, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 50 results each |
| Inputs | pH Electrode | BNC(Q9) |
| Temp. Probe | 4-pin aviation connector | |
| Display options | Backlight | Yes |
| Auto Shutdown | off, 300 Sec, 600 Sec, 900 Sec, 1200 Sec, 1500 Sec, 1800 Sec, 2100 Sec, 2400 Sec, 2700 Sec, and 3600 Sec. | |
| IP Rating | IP54 | |
| General | Power | EU Power Adapter (Input: AC 230V/50Hz; Output: DC 12V/1000mA). Configurable power adapter option available. |
| Dimensions | 242×195×68 mm | |
| Net Weight | 900g (1.98 lb) | |
| Dimensions (Carton) | 370×320×220 mm | |
| Shipping Weight | 2.5 kg | |
