Ophthalmic Perimeter

 Auto Ophthalmic Perimeter
 Auto Ophthalmic Perimeter

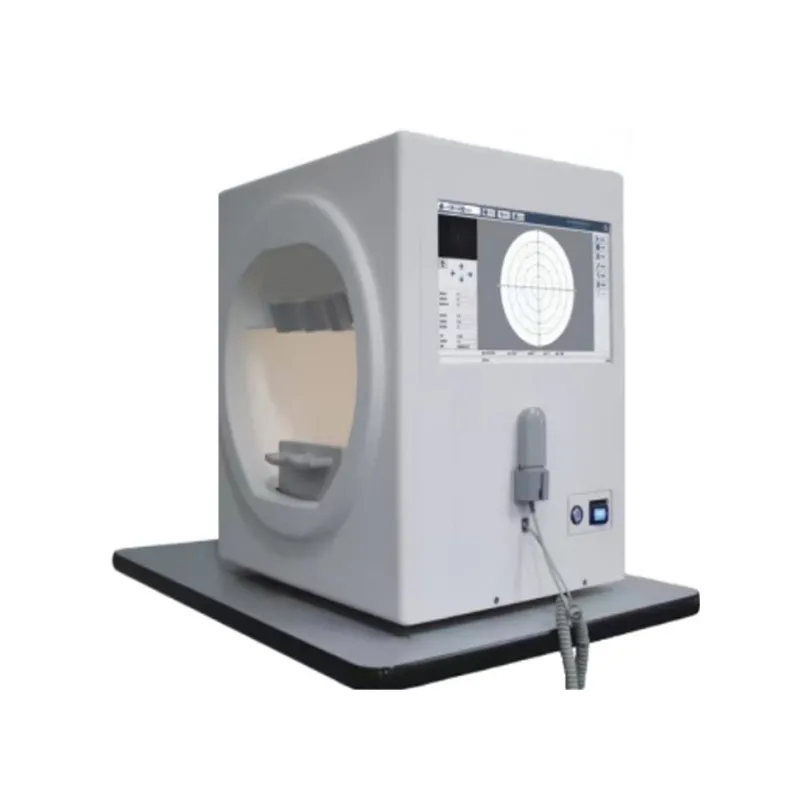

HSP-AP1000 Auto Ophthalmic Perimeter

Model: HSP-AP1000

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support



Share:

Main Features

-HSP-AP1000 comprises the highly integrated computer, optics, machinery, and electronics system.

-Incorporated with advanced configuration, comprehensive software inspection categories, and strictly in accordance with international Goldman standard.

-It provides scientific means for glaucoma, fundus disease, visual pathway injury, and neurological diseases.

-Comprehensive real-time monitoring, heji-krakau physiological blind spot monitoring, gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.

-Personalized design, accurate clinical analysis, accurate and rapid examination strategy.

-Under international Goldman standard, providing a variety of classic test procedures and report analysis.

Specification

Testing scope90°
Testing distance30cm
Background light brightnesswhite 31.5asb
Visual target brightness1~10000asb
Visual target sizeGoldman III
Visual target stimulation time200ms
Visual target interval timeStandard or adjusting according to patient reflection.
Threshold test modeCenter 5°-16, center 10°-68, 24-2, 30-2, 30°-60°, nasal side.
Upper threshold test mode30°-40, 30°-76, P-76, 60°-81, 60°-120, 90°-135, nasal side.
Special detection strategy Esterman monocular, Esterman binocular, upper-customized test, 150° driver monocular fast detection, 150° driver monocular standard detection, upper 36° detection, blind spot detection, 150° horizontal straightness detection.
Pupil size testAuto
Fixation monitoringBlind spot monitoring, eye position deviation alarm, eye deviation curve
Environment light testingAuto
Analysis softwarereliability analysis, single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis, VFI vision index analysis
Operating systemWin7 above
Size412*497*513mm
Wight17kg
Power100-240V, 50-60Hz
