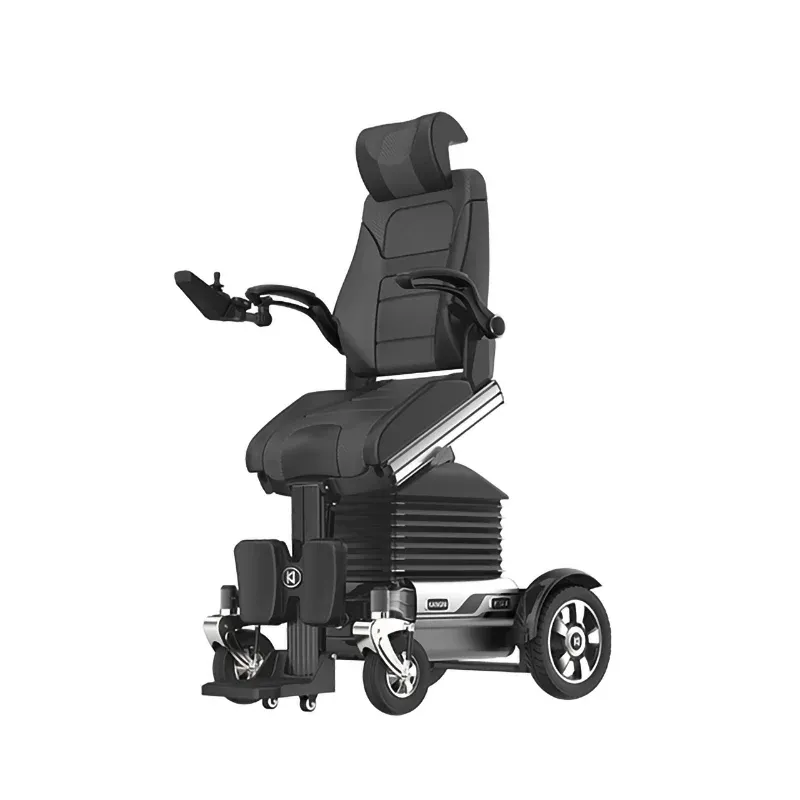

HSP-KS1 Full Function Electric Wheelchair

Model: HSP-KS1

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

The HSP-KS1 Full Function Electric Wheelchair is an advanced power chair engineered to deliver comfort, versatility and independence for individuals with mobility challenges. Combining ergonomic seating, intelligent control and multiple user-friendly features, this electric wheelchair adapts to daily life needs — whether navigating tight indoor spaces or enjoying outdoor mobility.

Key Features

• Adaptive Seating System – Power-adjustable backrest and seat positioning let users find the most comfortable posture for daily use.

• Ergonomic Cushioning – Pressure-relief seating design enhances long-time comfort and helps reduce risk of pressure sores.

• Power Seat Rotation – Electric rotation lets the seat turn smoothly for easier transfers and maneuvering in confined spaces.

• Mobility Assist Mode – Supports users during sit-to-stand movements and daily transfers, promoting autonomy.

• Elevating Seat Function – Adjustable seat height lets users maintain eye-level communication and improves accessibility.

• Relaxation Mode – Converts the wheelchair into a reclined, leisure-style position for rest during breaks.

• Pedal Adaptation – Self-adjusting pedal length and angle optimize foot support for personalized comfort.

• Obstacle Handling & Slope Safety – Designed to manage up to ~8 cm obstacles and adjust for safe climbs on mild inclines.

• Smart Connectivity & Safety – Built-in SOS emergency function and optional cloud connectivity allow real-time monitoring and improved safety.

• Battery & Performance – Dual battery options (standard and extended) support 20 km to 40 km travel range on a single charge.

• Stable Mobility – Rear-wheel drive, 90 cm turning radius and solid tires ensure smooth indoor/outdoor navigation.

Technical Specifications

Model	HSP-KS1
Overall Length	115cm / 45.28″
Maximum Speed	6km/h / 3.73mph
Net Weight	55kg / 121.25lbs
Overall Width	58cm / 22.83″
Obstacle Clearance	≤8cm / 3.15″
Weight Capacity	100kg / 220.46lbs
Overall Height	98cm / 38.58″ (excluding headrest)
Slope Capability	9°
Battery Capacity	15Ah/30Ah
Seat Height	44cm / 17.32″ (excluding cushion)
Front Wheel Diameter	8in
Travel Range	20km/40km
Seat Width	45cm / 17.72″
Rear Wheel Diameter	12in
Turning Radius	90cm / 35.43″
Seat Depth	42cm / 16.54″

Applications

This full-function electric wheelchair is ideal for:

• Individuals with limited mobility seeking daily independence

• Home and community mobility for daily errands and social outings

• Healthcare settings where ergonomics and adaptable seating improve quality of life

• Rehabilitation support to assist recovery and mobility training

By integrating comfort, adaptability and smart functions, the KS1 model supports a more independent and dignified lifestyle for users who rely on powered mobility in their daily routines.
