Description

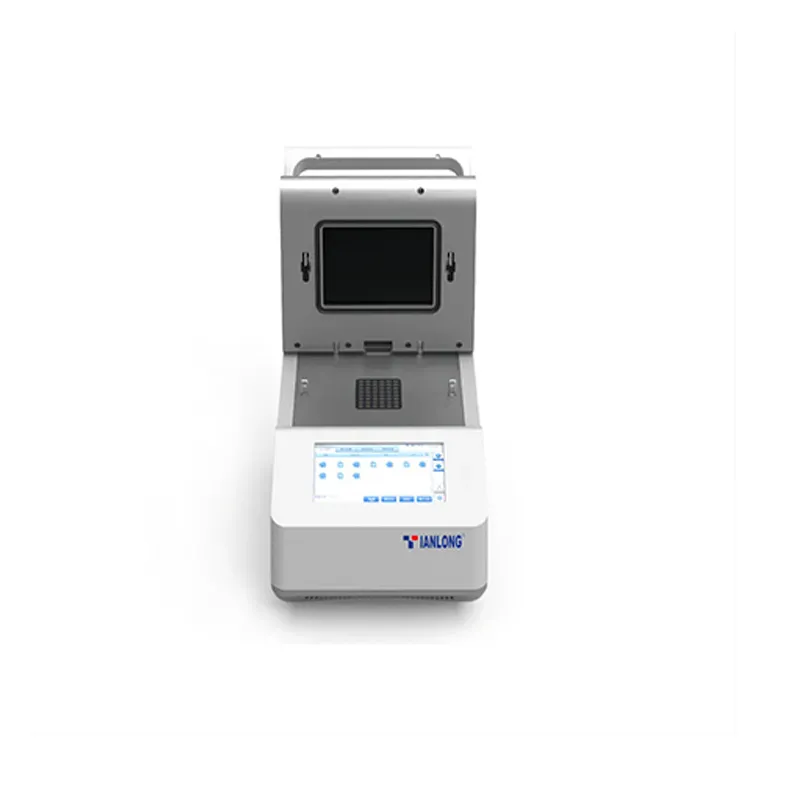

The Gentier 48R Real-Time PCR System is a compact and efficient quantitative PCR instrument designed to meet the nucleic acid testing needs of small to medium-scale laboratories, mobile labs, and on-site diagnostic environments. It integrates advanced optical detection technology with powerful analysis software to enable rapid, reliable, and accurate real-time PCR performance.
With a 48-well format and two fluorescence detection channels, the Gentier 48R provides fast and sensitive quantification of target DNA or RNA, making it ideal for molecular diagnostics, research, public health screening, and field applications. The system offers both standalone and PC-controlled operation modes, ensuring flexibility and ease of use across various laboratory workflows.
Features
High-Speed Fluorescence Detection
• Complete 48-well fluorescence scanning in approximately 2 seconds to significantly reduce total test time and improve laboratory efficiency.
Efficient Thermal Control
• Advanced Peltier heating and cooling enables rapid PCR amplification with high temperature precision (±0.1 °C), supporting stable and reproducible results.
Dual Operation Modes
• Standalone Mode – Built-in 7-inch touchscreen for independent instrument control and optional direct printing of results.
• PC Control – Connect to a PC for centralized control; a single computer can manage up to 10 instruments.
Power Failure Protection
• Automatic recovery after power interruptions ensures that ongoing experiments continue without data loss.
Powerful Software Analysis
• Supports relative and absolute quantification, melting curve analysis, SNP analysis, and other fluorescence-based data interpretation workflows.
Portable and Flexible
• Lightweight and compact design allows easy deployment in mobile labs, point-of-care settings, or field environments.
Data Storage and Reporting
• Capable of storing over 1000 experimental results and supports USB export for downstream analysis and report generation.
Specification
| Model | Gentier 48R |
| Throughput | 1-48 |
| Fluorescence Channels | 2 |
| Fluorescence Scanning Time | 2s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green
Channel 2: HEX, VIC, TET, JOE |
| Optical System |
|
| Light Source | High-brightness, long life and maintenance-free LED light source |
| Detector | Photodiodes (PDs) |
| Excitation Range | CH1: 470nm CH2:523nm CH3:570nm CH4:638nm |
| Detection Range | CH1:525nm CH2:564nm CH3:610nm CH4:685nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black |
|
| Heating Method | Peltier |
| Heating Rate | ≥8.0 ℃/s ℃ |
| Cooling Rate | ≥6.2 ℃/s |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 8 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999
Repeatability: cycle threshold (Ct) value CV≤0 0.5% |
| Software Functions |
|
| Control Modes | Model1: 7 inch touch screen
Mode 2: PC direct control |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others |
|
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,S0-60HZ; 600VA |
| Weight | 11 Kg (net) |
| Instrument Dimension | 260*400*260mm (W*L*H) |
| Suitable Consumables | 0.2mL clear non-skirt 48-WELL plates, 8>tube strips, single tubes, etc. |
