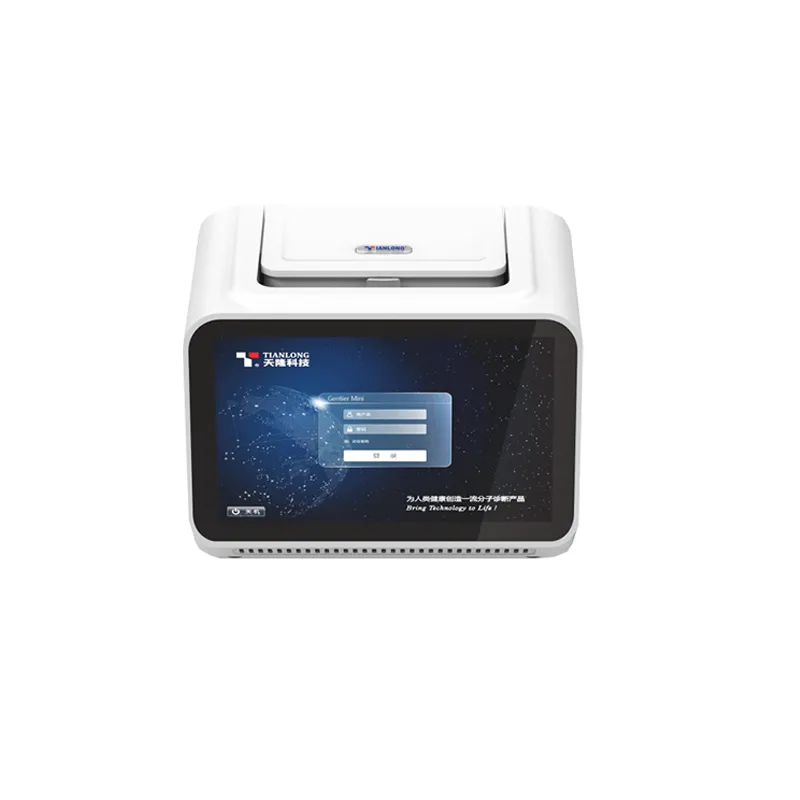

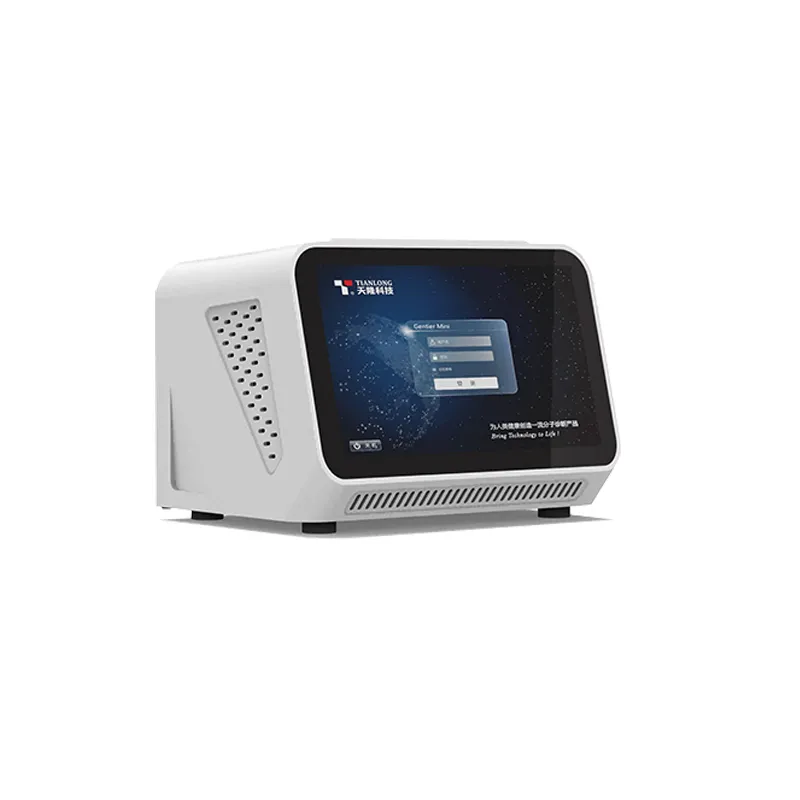

Gentier Mini+ 4 Channels Portable Real-Time PCR Machine

Model: Gentier Mini+

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

The Real-Time PCR Machines are advanced quantitative PCR instruments designed for precise nucleic acid detection and analysis. These Machines enable real-time monitoring of DNA/RNA amplification through fluorescence detection, delivering highly sensitive, accurate, and reproducible quantitative results.

Key Features

1. High-Precision Thermal Control

• Rapid heating and cooling rates

• Excellent temperature uniformity across wells

• Stable and reproducible amplification performance

2. Multi-Channel Fluorescence Detection

• Supports multiple fluorescence channels

• Enables multiplex assays in a single run

• High signal sensitivity with low background noise

3. Intelligent Data Analysis Software

• Automatic Ct value calculation

• Standard curve analysis

• Melting curve analysis

• Quantitative and qualitative result interpretation

• User-friendly interface for easy operation

4. Flexible Application Compatibility

• Compatible with various reagent kits

• Suitable for DNA and RNA detection

• Open Machine design for research flexibility

Specification

Model	Gentier Mini+
Throughput	1-16
Fluorescence Channels	4
Scanning Time	1s for all wells fluorescence scanning
Dye Compatibility	Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: Texas Red, ROX Channel 4: Cy5
Heating Rate	Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s.
Cooling Rate	Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s.
Temperature Accuracy	≤0.1℃
Lightsource	High-brightness, long-life, maintenance-free LED light source
Special Temperature Protocol	Conventional PCR, touchdown PCR, long PCR, etc.
Hot Lid Temperature	40℃-110℃
Control Modes	Mode 1: 7-inch touch-screen of Gentier Mini Mode 2: computer software Mode 3: remote control via Windows tablet
Key Applications	Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc.
Result Analysis	1: Direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer; 2: Analysis through PC software.
Experiment Files	Files can be downloaded by webpage login
Network Connection	Internet interface, USB, WiFi
Power Failure Protection	Automatically start running experiments after power supply
Specifications and Weight	205mm(L)156mm(W)153mm(H)); 3.2kg
Suitable Consumables	0.2mL transparent single tubes and 8-strip tubes
