Description

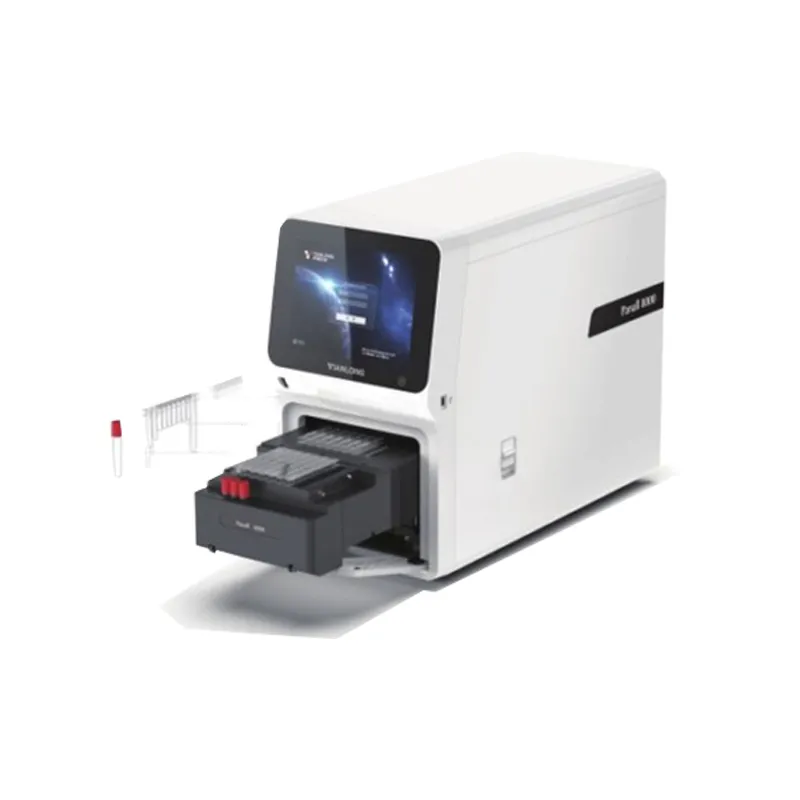

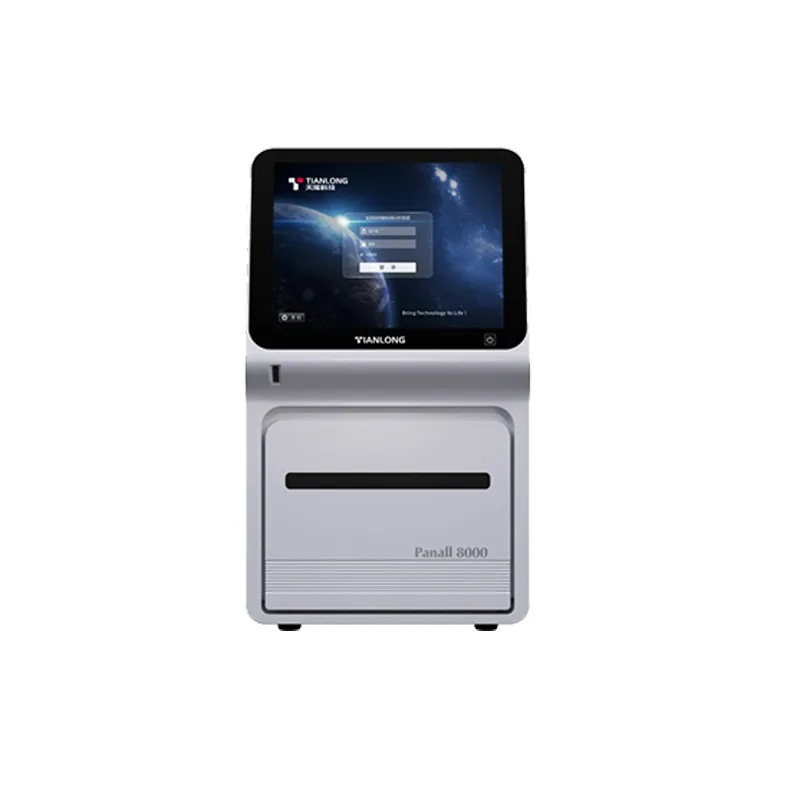

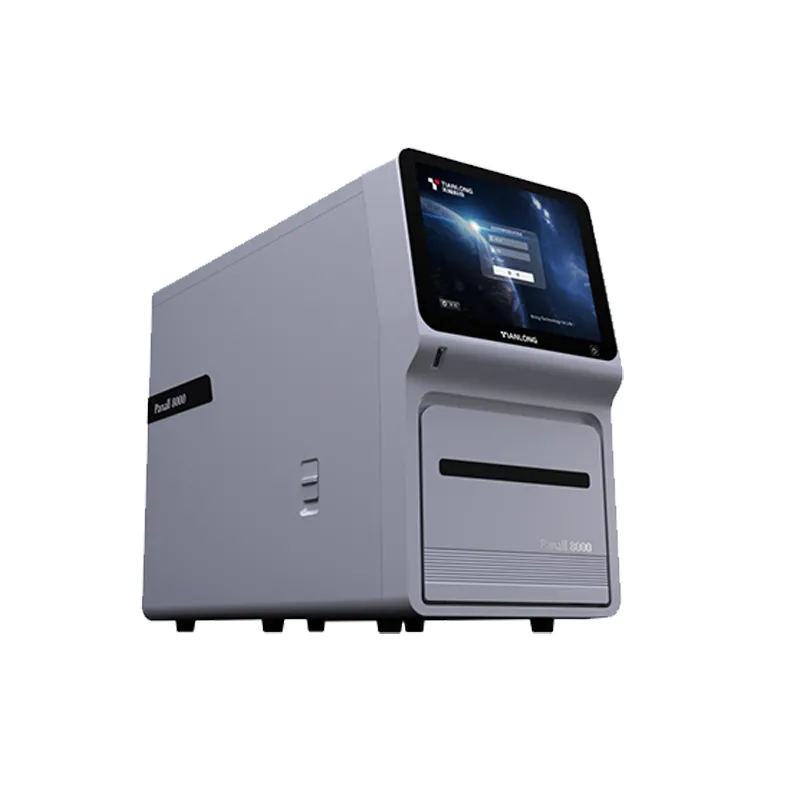

The Panall 8000 All-In-One Molecular Diagnosis System is an advanced, fully automated molecular diagnostic instrument that integrates the complete workflow from sample processing to result output in one platform — truly achieving “sample-in, result-out” automation. It streamlines critical processes including sample tube decapping/capping, nucleic acid extraction, PCR setup, amplification, fluorescence detection, and data analysis, all with a single-key-start operation. Its closed-system design significantly reduces contamination risk, and intuitive touchscreen control brings simplicity and efficiency to clinical laboratories, research facilities, and point-of-care testing sites.
The Panall 8000 supports up to 8 samples per run and offers robust performance with high-quality results you can rely on — without requiring additional equipment or manual interpretation of results.
Features
Automated End-to-End Workflow
• Enables a true sample-in → result-out process with integrated decapping/capping, extraction, PCR setup, detection, and analysis.
Closed System for Reduced Contamination
• Minimizes risk of cross-contamination through directional exhaust, negative pressure control, HEPA filtration, and UV decontamination.
Intuitive 12.1-inch Touchscreen Interface
• Large color display for straightforward operation with minimal training required.
Multi-Channel Fluorescence Detection
• Supports 4 fluorescence channels (including FAM, VIC/HEX, ROX, Cy5), enabling diverse PCR assay applications.
High-Precision Pipetting Performance
• Automated pipetting delivers accurate and repeatable volumes from 10 µL to 250 µL across the full capacity.
Fast Turnaround Time
• Typical total detection time is 1–2 hours, depending on reagents and protocols.
Data & Information Management
• Built-in sample scanner captures sample IDs; system auto-recognizes reagent info and executes corresponding programs. Storage for up to 1000 test files and USB export support.
Flexible Open/Closed System Options
• Available in both closed and open configurations — the open system allows custom PCR protocols and use with diverse reagents.
User-Friendly and Reliable
• No need for additional interpretation or external analysis tools — results are automatically processed and displayed.
Specification
| Model | Panall 8000 |
| Sample Throughput | 1~8 samples at the same time |
| Pipetting Range | 20μL ~250μL |
| Detection time | 1~2 hours,relying on the reagent |
| Channel and Available Fluorescein | Channel 1: FAM, SYBR Green I, etc.
Channel 2: VIC, HEX, TET, JOE, etc.
Channel 3: ROX, Texas Red, etc.
Channel 4: Cy5, etc. |
| Dimension | 750mm(L) × 350mm (W) × 580mm (H) |
| Weight | 75Kg |
| Pipetting Performance | 20μL≤V<40μL: accuracy:A≤5.0%,repeatability:CV≤3.0%40μL≤V<100μL: accuracy: A≤3.0% ,repeatability: CV≤1.5%V≥100μL: accuracy:A≤1.0%,repeatability:CV≤1.0% |
| Extraction Heating Rate | Average heating rate: ≥1.5℃/s |
| Extraction Temperature Accuracy | ≤1.0% |
| PCR Heating Rate | Average heating rate:≥ 4.5℃/sMaximum heating rate:≥ 6.1℃/s |
| PCR Cooling Rate | Average cooling rate: ≥ 3.5'℃/sMaximum cooling rate:≥ 5.0℃/s |
| PCR Temperature Accuracy | ≤0.1% |
| Sample Testing Linearity and Repeatabilit | Linear correlation: /r/≥ 0.998Repeatability: CV ≤1.5% |
| Information Management | Sample information: with scanner insidePanall 8000 can scan and record the sample informationReagent information : visual system can automatically identifythe kit information and run the corresponding program |
| Minimized contamination | Directional exhaust & negative pressure systemHEPA fltrationUV disinfectionShortest fixed path for sample operation |
| Data storage | 1000 experiment files can be stored |
| Language | Chinese and English |
| Power supply and Power Consumption | AC 100~240V，50/60Hz:1200VA |
| Communication specification | Internet Port: TCP/lP protocol, Ethernet connectionUSB Port: USB 2.0 |
