Description

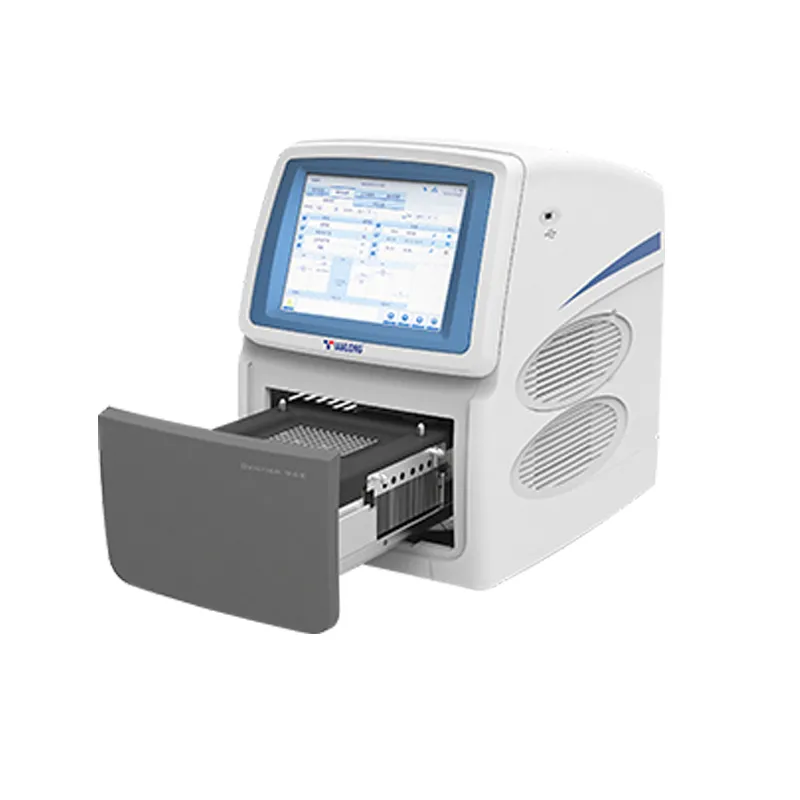

The Gentier 96R Automated PCR Machine is a high-performance quantitative PCR instrument designed to fulfill the needs of modern molecular biology laboratories. Built for high-throughput applications, this Machine can process up to 96 samples in one run with rapid and accurate fluorescence scanning. Its advanced Peltier-based thermal control, intuitive software, and robust optical detection deliver reliable performance for quantitative and qualitative nucleic acid analysis. The Gentier 96R is ideal for clinical diagnostics, research and development labs, public health screening, and biotechnology applications where speed, sensitivity, and precision are essential.
Features
High Throughput & Speed
• Processes up to 96 samples simultaneously.
• Fluorescence scanning across all 96 wells completed in only 7 seconds, enhancing workflow efficiency.
Efficient Temperature Control
• Peltier heating and cooling Machine with rapid ramp rates (heating >6.1 °C/s, cooling >5.0 °C/s).
• Tight temperature uniformity (±0.1 °C) and high accuracy (≤ ±0.1 °C) support reproducible results.
Multi-Channel Fluorescence Detection
• 4 detection channels compatible with common fluorescent dyes (FAM, SYBR Green I, HEX, VIC, ROX, Cy5, and more).
• Top-scan photodiode detection with high-brightness, long-life LED excitation.
Flexible Operation Modes
• Standalone operation via 10.4-inch touchscreen or PC-based software control.
• Powerful data analysis functions including absolute and relative quantification, SNP detection, melting curve analysis, and customizable reports.
Power Protection & Data Management
• Power failure protection automatically resumes experiments after power restoration.
• Onboard storage for up to 1000 results with USB export capability.
Broad Sample Compatibility
• Supports 0.2 mL 96-well plates, 8-tube PCR strips, and single tubes in clear, frosted, or white formats.
• Compatible with a wide range of consumables used in qPCR assays.
Specification
| Model | Gentier 96R |
| Throughput | 1- 96 |
| Fluorescence Channels | 4 |
| Fluorescence Scanning Time | 7s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green
Channel 2: HEX, VIC, TET, JOE
Channel 3: ROX, Texas Red
Channel 4: Cy5 |
| Optical Machine |
|
| Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
| Detector | Photodiodes (PDs), top scanning |
| Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm |
| Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black |
|
| Heating Method | Peltier |
| Heating Rate | >6.1 ℃/s |
| Cooling Rate | >5.0 ℃/s |
| Temperature Uniformity | ±0.1 ℃ |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 12 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999
Repeatability: cycle threshold (Ct) value CV≤0 0.5% |
| Software Functions |
|
| Control Modes | Model 1: 10.4 inch touch screen
Mode 2: PC direct control |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others |
|
| Operating Machine for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
| Weight | 30 Kg (net) |
| Instrument Dimension | 555*475*484mm (W*L*H) |
| Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
