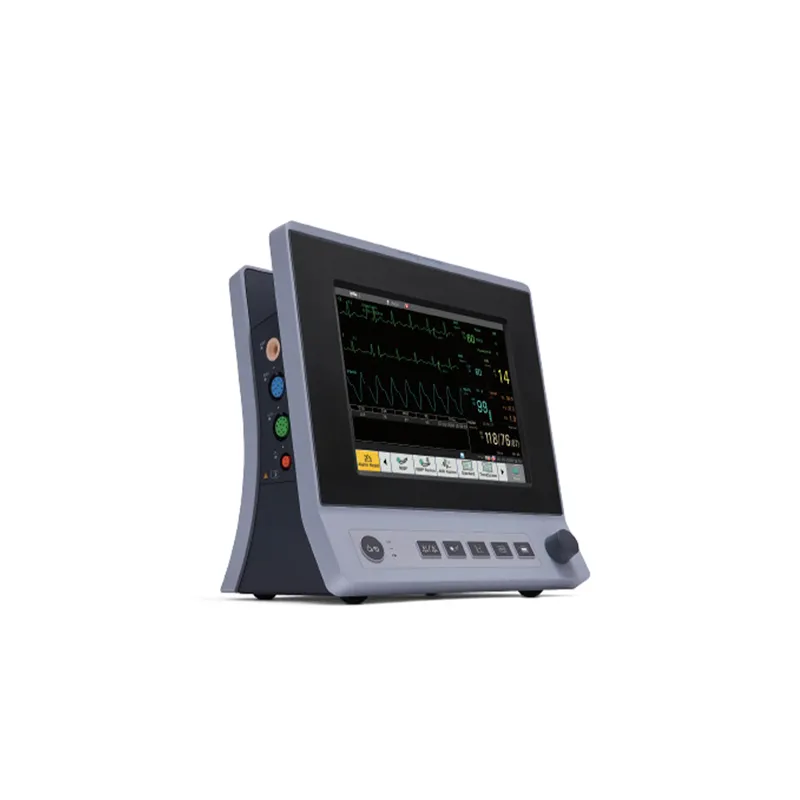

Edan X12 Bedside Patient Monitor For Critical Care

Screen size：307.3 mm (12.1 in.)

Standard：ECG+SpO2+NIBP+RESP+TEMP

Certificate: CE / ISO

After-sales Service: Online technical support

Warranty: 1-Year

Inquire Now Add to Basket Next Product

Description
Download

The Edan X12 Patient Monitor is a high-performance, multi-parameter monitoring system designed for hospitals, clinics, and mobile care units. With a 12.1-inch high-resolution touchscreen, flexible parameter expansion, and advanced algorithms for ECG and cardiac assessment, it provides accurate, real-time monitoring of your patients’ vital signs. Its portable, fanless design and Wi-Fi connectivity make it ideal for bedside care, transport, and integration with EMR systems.

Main Features

• Multi-Parameter Monitoring: Standard parameters include ECG, SpO₂, NIBP, TEMP, RESP, HR, and PR. Optional modules: CO₂, IBP, 6/12-lead ECG, Cardiac Output.

• High-Resolution Touchscreen: 12.1” color display with intuitive navigation for faster clinical decisions.

• Advanced ECG Analysis: iSEAP™ algorithm for arrhythmia detection and SEMIP® for ECG diagnosis.

• Robust Data Storage: Stores up to 240 hours of trend data, 200 alarm reviews, 200 arrhythmia events, and 1200 NIBP readings.

• Portable & Durable Design: Fanless, lightweight, built-in handle, and cable management for flexible bedside or transport monitoring.

• Long Battery Life: Up to 8 hours of continuous operation without AC power.

• Connectivity & Integration: Built-in Wi-Fi, USB export, optional nurse call support, and seamless EMR integration.

• Enhanced Patient Safety: Customizable alarms, dual alarm lights, night mode, and barcode scanning support clinical workflow.

Specification

Model	Edan X12
Display	12.1” High-Resolution Color Touchscreen
Standard Parameters	ECG (3/5-lead), SpO₂, NIBP, TEMP, RESP, HR, PR
Optional Parameters	6/12-lead ECG, CO₂, IBP, Cardiac Output
ECG Algorithms	iSEAP™ Arrhythmia Detection (33 types), SEMIP® ECG Diagnosis (208 findings)
Memory	8 GB internal memory for trends & events
Trend & Event Storage	240 h trend data, 200 alarm events, 200 arrhythmia reviews
NIBP & Waveform Storage	1200 NIBP readings, 48 h waveform review
Connectivity	Wi-Fi, USB, optional nurse call, VGA output
Design	Fanless, portable with built-in handle & cable management
Battery Life	Up to 8 hours continuous monitoring
Alarms & Safety	Custom alarms, dual alarm lights, night mode
Certifications	IEC/EN medical safety standards compliant
Dimensions & Weight	See detailed datasheet for full specifications

X12 Patient Monitor

Edan X12 Bedside Patient Monitor For Critical Care
