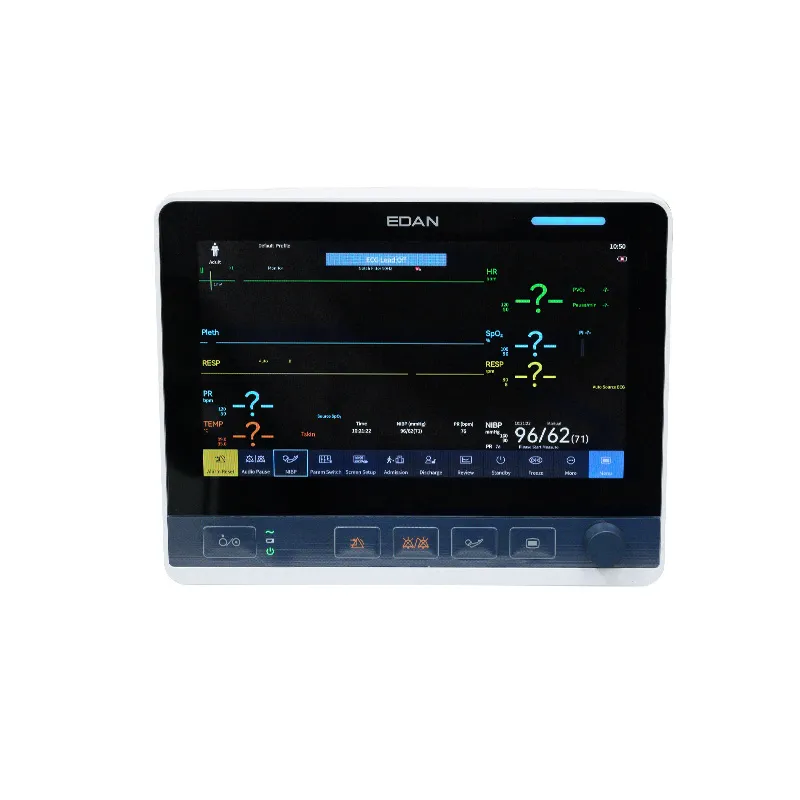

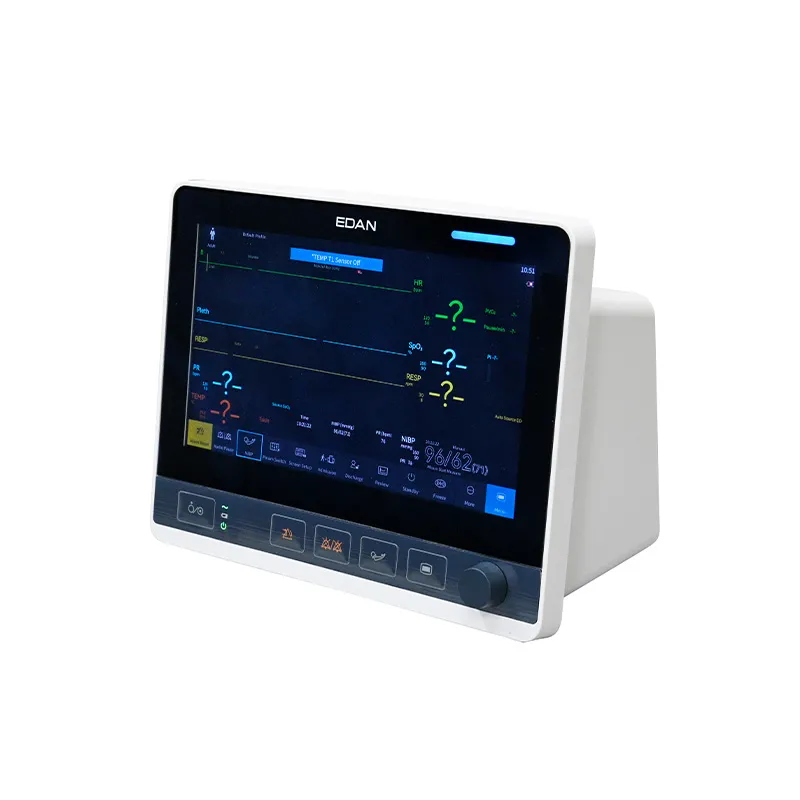

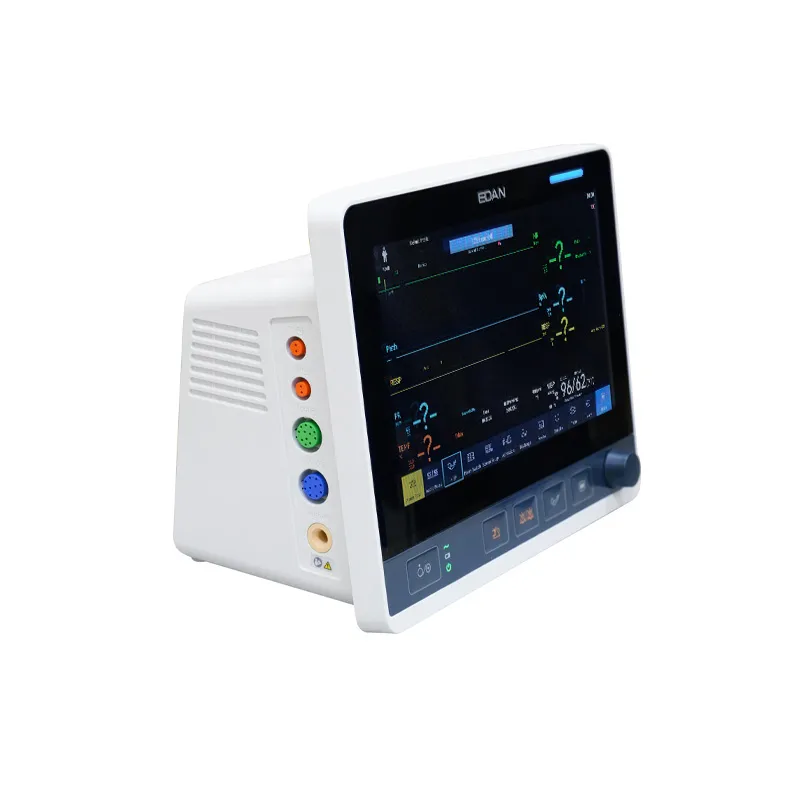

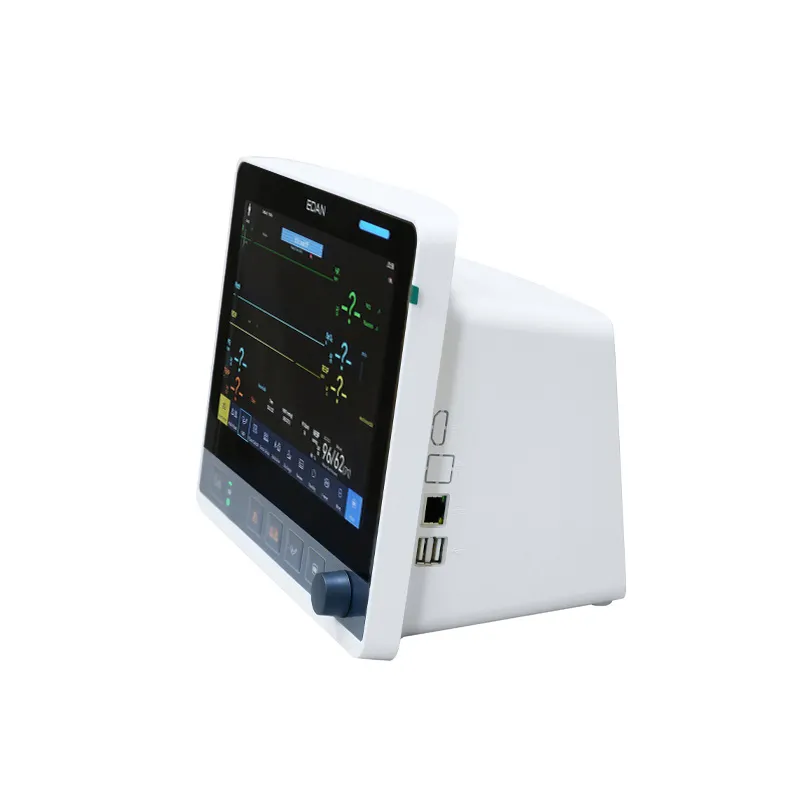

EDAN CX Series Patient Monitor
The EDAN CX Series Patient Monitor is a compact multi-parameter patient monitor designed for reliable vital signs monitoring in hospitals and other clinical care environments. The series includes CX10, CX12, and CX15, with 10.1-inch, 13.3-inch, and 15.6-inch displays respectively, providing flexible options for different clinical requirements.
With a clear high-resolution display, intuitive controls, portable design, and multiple monitoring parameters, the CX Series is designed to support efficient bedside care while also allowing convenient in-hospital patient transport.
Clear and Easy-to-Use Display
The CX Series provides different screen sizes to meet different monitoring requirements:
• CX10: 10.1-inch display, 1024 × 600 resolution
• CX12: 13.3-inch display, 1920 × 1080 resolution
• CX15: 15.6-inch display, 1920 × 1080 resolution
The monitors feature a high-resolution display with a wide viewing angle. Touch and gesture operation, together with a rotary knob and customizable shortcut keys, help simplify daily operation.
Comprehensive Vital Signs Monitoring
The CX Series can be configured for monitoring essential physiological parameters, including:
• ECG
• RESP
• SpO₂
• NIBP
• Pulse Rate
• Temperature
Optional configurations can expand monitoring capabilities with parameters such as 6/12-lead ECG, IBP, CO₂ and cardiac output, depending on the model and configuration.
Reliable ECG Monitoring
The CX Series uses EDAN's iSEAP™ ECG algorithm, supporting arrhythmia detection and reliable heart rate monitoring. Its SEMIP™ ECG diagnostic algorithm is designed to improve ECG diagnostic accuracy, while multi-lead analysis helps improve detection sensitivity and reduce false alarms.
Fast and Comfortable NIBP Measurement
The iFAST™ NIBP algorithm is designed to provide rapid blood pressure measurement, with readings available in as little as 15 seconds under applicable conditions. The iCUFS™ algorithm uses adaptive inflation and deflation according to cuff size to support safe and comfortable blood pressure measurement.
Reliable SpO₂ Monitoring
EDAN's iMAT™ SpO₂ algorithm provides resistance to motion interference and low-perfusion conditions. The system can also display the Perfusion Index (PI), helping clinicians assess peripheral perfusion during monitoring.
Designed for Everyday Clinical Use
The CX Series is designed with durability and practical operation in mind. Its no-fan design helps reduce dust accumulation and power consumption, while the smooth monitor surface supports routine cleaning and disinfection.
The portable handle and available mounting solutions make the monitor suitable for bedside monitoring as well as in-hospital patient transport. Compatible mounting options include wall mounting and EDAN rolling stands.
Clinical Applications
The EDAN CX Series Patient Monitor can be used in a variety of hospital departments and care environments, including:
• General Wards
• Emergency Departments
• Sub-acute Care
• Recovery Areas
• Bedside Monitoring
• In-hospital Patient Transport
The series is intended for use by trained healthcare professionals for monitoring, storing, recording and reviewing multiple physiological parameters of adult and pediatric patients, including neonates, according to the applicable configuration and regulatory indications.
Specifications
| Item | CX10 | CX12 | CX15 |
|---|
| Display | 10.1" | 13.3" | 15.6" |
| Resolution | 1024 × 600 | 1920 × 1080 | 1920 × 1080 |
| Standard ECG | 3/5-lead | 3/5-lead | 3/5-lead |
| SpO₂ | Standard | Standard | Standard |
| NIBP | Standard | Standard | Standard |
| RESP | Standard | Standard | Standard |
| Temperature | Standard | Standard | Standard |
| 6/12-lead ECG | Optional | Optional | Optional |
| IBP | Optional | Optional | Optional |
| CO₂ | Optional | Optional | Optional |
