Edan iM8 Portable Patient Monitor P-For Emergency Room

Model: Edan-im8

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description
Download

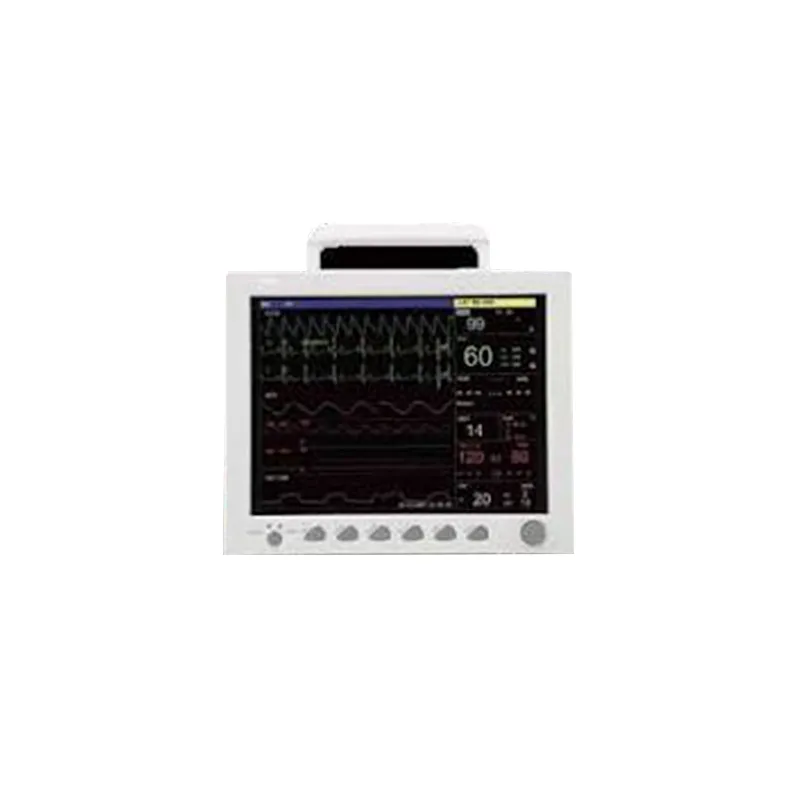

The Edan iM8 Patient Monitor is a versatile, professional-grade patient monitor designed for critical care, emergency rooms, general wards, and surgical recovery units. It provides accurate, real-time tracking of vital signs for neonates, pediatric, and adult patients. The iM8 features a large high-resolution color display, advanced ECG and SpO₂ algorithms, and robust internal memory for storing trend data and alarm events.

Main Features

1.Monitoring within reach

-The iM8 series puts reliable monitoring technologies at your fingertips. With its accurate readings and optimized performance, the iM8 series can meet most basic monitoring needs, bringing easy access to high-quality healthcare for everyone.

2.Accurate and Trustworthy

-iSEAPTM ECG algorithm which is specially optimized for arrhythmia and high blood pressure patients

-iMATTM SpO2 algorithm with anti-motion performance

-iCUFSTM NIBP algorithm with fast measurements

3.Recording and Connection

-External memory support

-Wired/Wireless connections

-Bi-directional communication with the MFM-CMS

-VGA output

4.Mounting Solutions

-Two types of mounting solutions are available for regular monitoring applications.

Specification

Model	Edan-im8
Display	12.1″ high-resolution color TFT LCD
Standard Parameters	3/5-lead ECG, SpO₂, NIBP, RESP, PR, HR, 2 Temp channels
Optional Parameters	CO₂, dual IBP, thermal printer
ECG Features	Arrhythmia detection, pacemaker detection, SEMIP® ECG analysis
SpO₂	Motion-resistant algorithm, 0–100% range
NIBP	Automatic, manual, or continuous measurement
Respiration	Measured via transthoracic impedance
Temperature	Dual-channel measurement
Trend & Event Storage	Waveform & numeric trend memory, alarm review
Connectivity	Wi-Fi, LAN, USB, central station integration
Power	AC 100–240 V; rechargeable Li-ion battery
Dimensions	Approx. 320 mm × 150 mm × 265 mm
Weight	~5 kg
