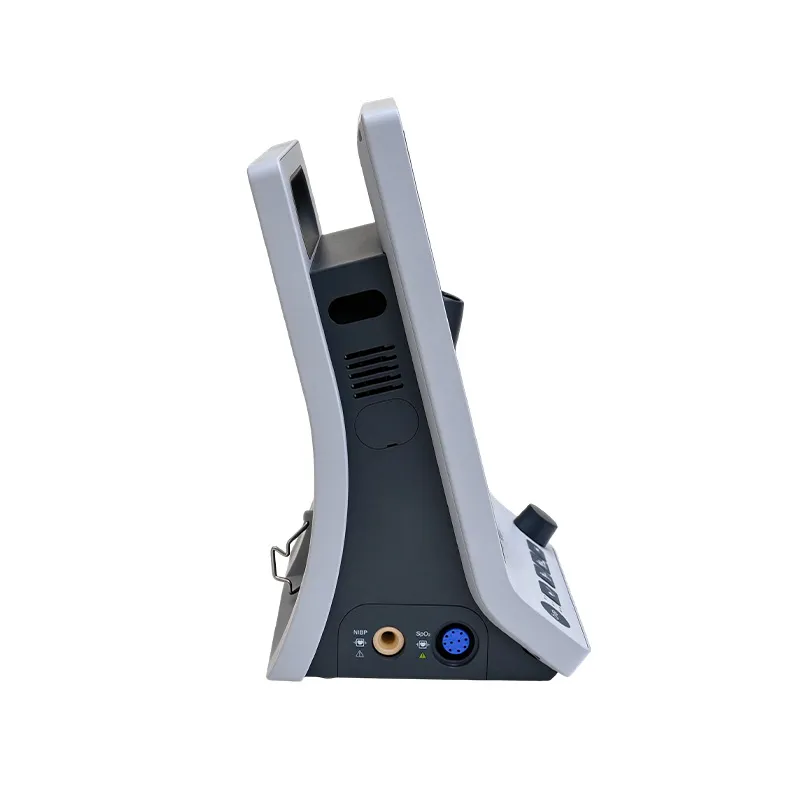

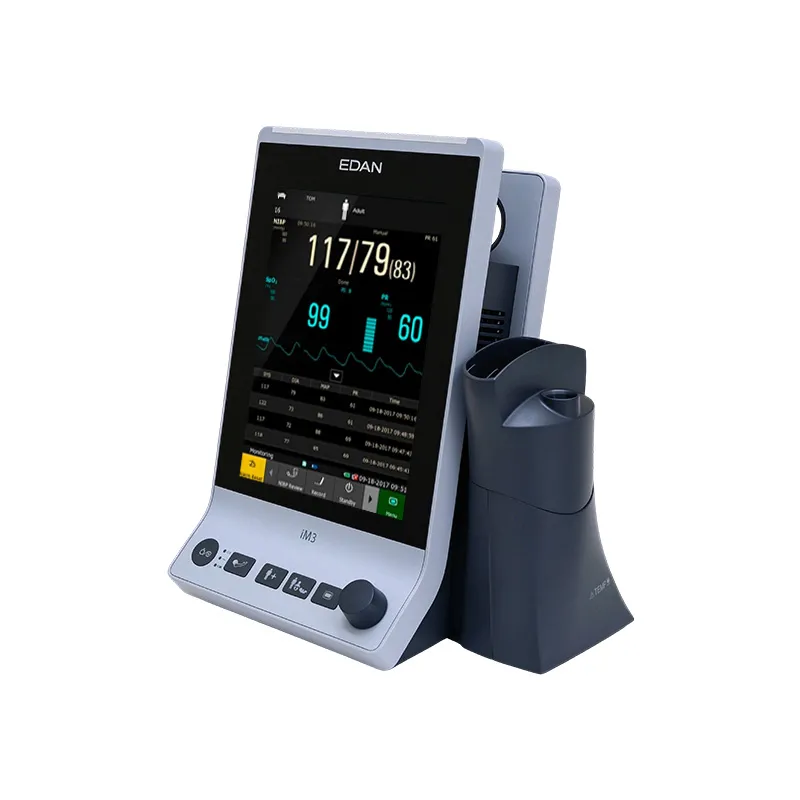

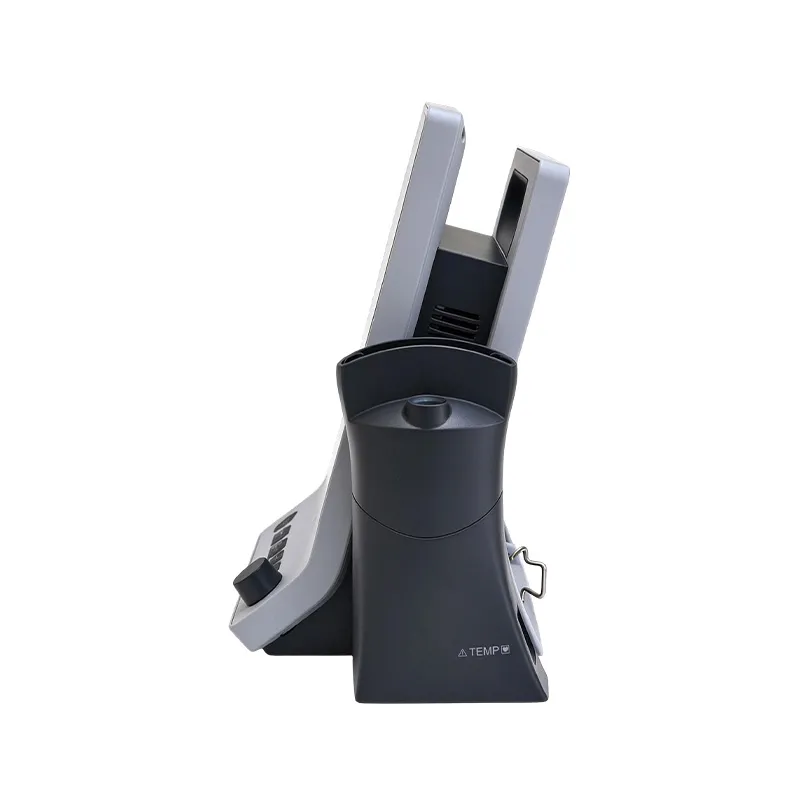

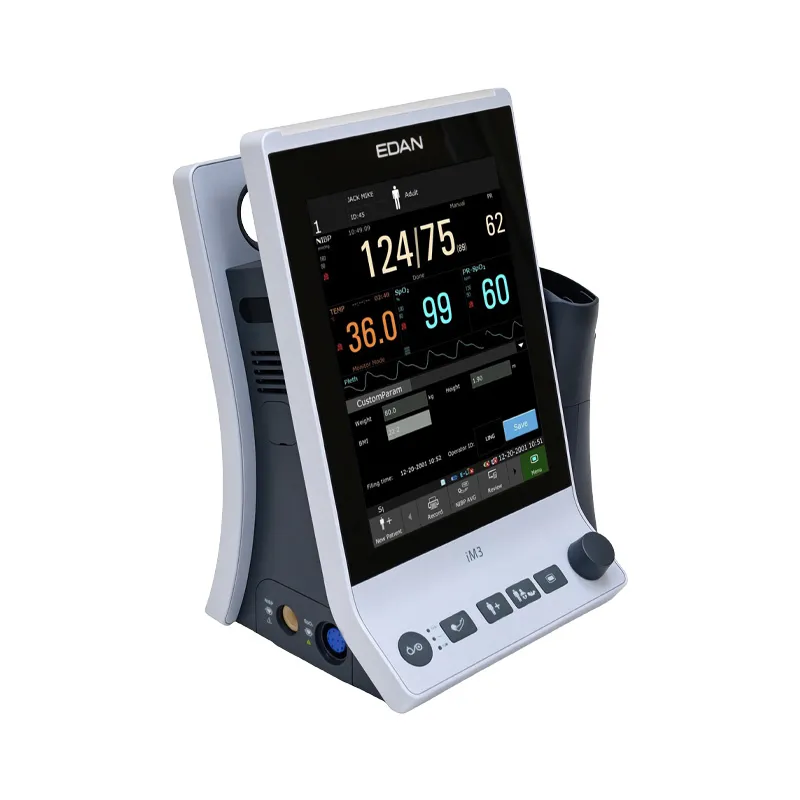

Edan IM3 8-Inch Compact Patient Vital Signs Monitor for Ambulance

Brand: Edan

Model: IM3

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:
Inquire Now Add to Basket Next Product

Combining a stunning ultra-slim design, a large capacitive touch screen, together with a rich set of leading functions, iM3 takes the lead and presents itself as the beginning of a new generation of vital signs monitors. Bringing in full options of SpO2, NIBP and Quick Temp/Infrared Ear Temp and differentiated work modes, iM3 serves for both long time monitoring and spot check applications.

Main Features

-8” color TFT full touch screen with 105º incline angle which is high visibility and easy access

-Ultra Slim, lightweight with comfortable handle enabling the user to hold with one hand and easy to carry around

-Bringing in full options of SpO2, NIBP, Quick Temp/Infrared Ear Temp including monitoring and spot check applications

-360° strip-design alarm light with a customizable 3-level alarm management system

-One-button operation with knob control, simple and easy-to-use

-Built-in non-volatile memory and external USB storage

-Enable to connect to Ethernet network via either built-on LAN port or built-in Wi-Fi module(optional)

-Built-in rechargeable Lithium-Ion Battery



Specification

ModelEdan IM3
Display8″ high-resolution color touchscreen
Standard ParametersSpO₂, NIBP, Pulse Rate (PR)
Optional ParametersTemperature (oral, infrared ear, non-contact)
Work ModesContinuous Monitoring, Spot Check, Ward Round
Data StorageTrend data, 1200 NIBP readings, 200 alarms, millions of spot records
ConnectivityWi-Fi, USB, OTG, LAN
Alarm360° visual alarm indicator
BatteryRechargeable lithium-ion battery for portable use
Dimensions262 mm × 166 mm × 159 mm
Weight~2.5 kg
PowerAC 100–240 V
