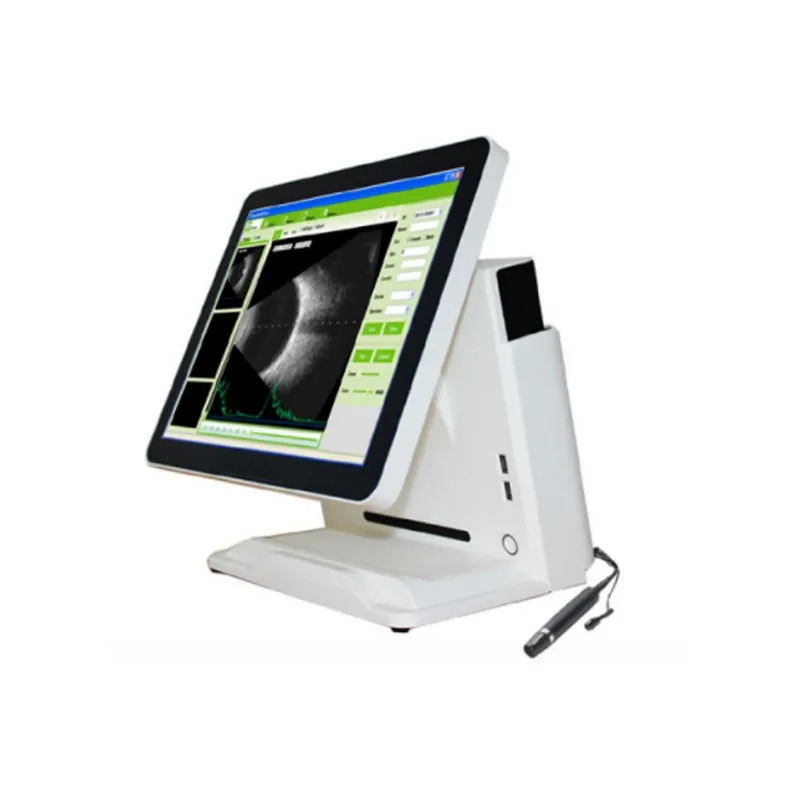

HSP-2400S Ophthalmic Ultrasound
HSP-2400S Ophthalmic Ultrasound

HSP-2400S Ophthalmic Ultrasound

Model:HSP-2400S

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support



Share:
Inquire Now Add to Basket Next Product

HSP-2400S A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as we.

Specification

A scan

Frequency10MHz,  with LED
Depth40mm
Precision±0.05 mm
MeasurementAnterior chamber depth, lens thickness, vitreous body length, total length and average
Eye modePhakic / Aphakic / Dense / Various IOL
IOL Formula SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. CalculationAverage and standard deviation
Store10 Scanning results for each eye
Display ModeB, B+B, B+A, A
Hintpreset keyword
Case SearchMulti-keywords
Screen15 inch LCD
Built-in batterycan use 4 hours
User-defined report template poor credit secured loans

B scan

Frequency10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning ModeSector Scanning
MagnifyMulti continuous magnification,Real-Time magnification
ResolutionLateral ≤0.3mm; Vertical≤0.2mm
Geometry position precisionLateral ≤10%; Vertical≤5%
Depth60mm
Enhance the part of vitreous body  and retina
Gain of probe30dB-105dB
Scanning Angle53°
Gray Scale 256
False ColorMulti colors. OCT
Measurement typeMultigroup distances, perimeters and areas
Image post processingmultiple curves processing, Pseudo-color processing curve
Movies 100 images movie review, AVI JPG format image output
