Ophthalmic Ultrasound
Model: HSP-2100S
Product origin: China
Warranty: 1 Year
After-sales Service: Online Technical Support

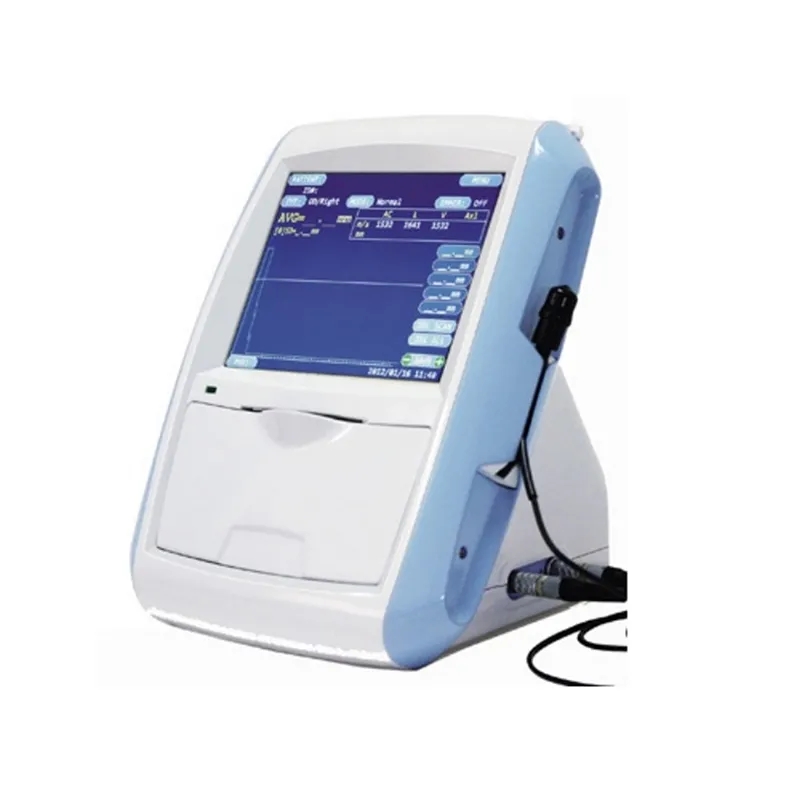

HSP-2100S Ophthalmic A-Scan/Pachymeter with macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness, as well as intra-ocular lens calculation. And also with the central area and the peripheral areas gain automatic compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive surgery.
Main Features
-Large color liquid-crystal screen
-Touch screen input, easy operation
-Curve freezing: Manual/Auto mode, controlled by pedal
-Built-in speed thermal printer
Specification
| PARAMETER | SPECIFICATION |
| A scan probe | 10MHz import small size probe, built-in luminotron |
| Measuring range | 15mm-40mm |
| Measurement precision | ±0. 05mm; with macula lutea trace function |
| Measurement | Anterior chamber depth, lens thickness, vitreous body length, total length and average |
| Method ofmeasurement | immersion and contact |
| Eye mode | Phakic/ Aphakic/Dense/ various IOL |
| IOL formula | SRK-II、SRK-T、BINKHORST- Ⅱ、HOLLADAY、HOFFER-Q、 HAIGISEnter the name & ID; easy to check archive |
| Storage | 10 cases, 5 readings each case |
| Output | A scan waveform and IOL calculation sheet |
| P scan probe | 20MHZ, angle of 45 degrees makes easier operation |
| Resolution | 5um |
| Measuring range | 150um~1500um |
| Display | SINGLE mode and MAP modeCan display ultrasound waveform when measuring Each group is the average of 20 measurements Switch between IOP measured value and actual value Can input name, ID and operator’s name |
