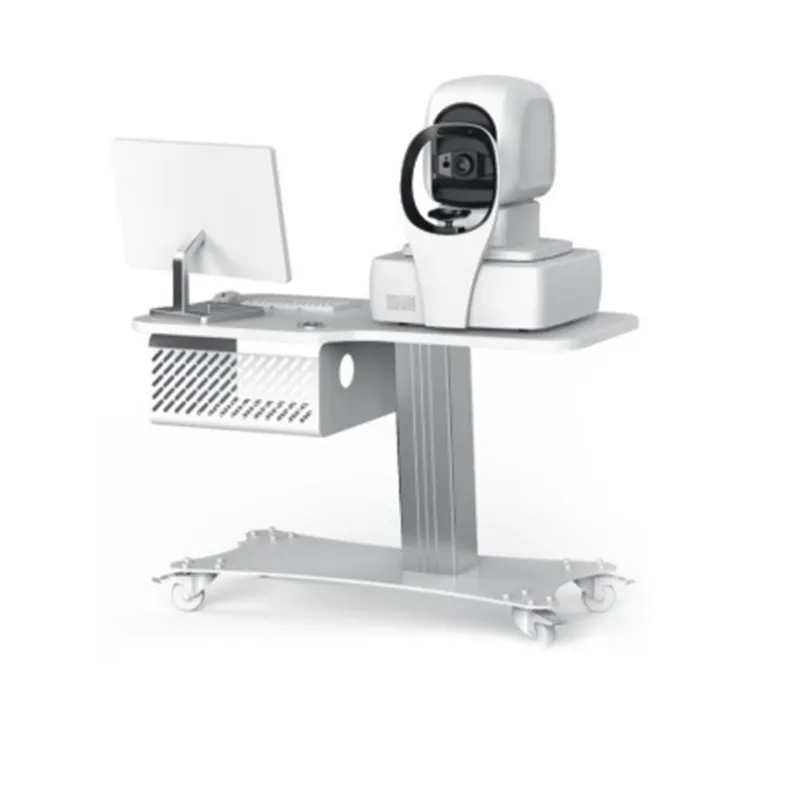

HSP-OCT1000 Optical Coherence Tomography Machine

Model: HSP-OCT1000

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket

Description

The HSP-OCT1000 Optical Coherence Tomography for Ophthalmology is an integrated automatic artificial intelligence OCT system with both soft and hard capabilities, boasting complete independent intellectual property rights. It combines cutting-edge multi-image registration enhancement technology with industry-leading analysis techniques to offer a comprehensive solution for clinical diagnosis and treatment. This includes automated image capture, precise image analysis, intelligent and real-time cloud-based data sharing.

Main Features

1.Ultra-fast fundus signal acquisition

-80,000 times per second “second” acceleration technology, the scanning speed is greatly improved, helping to accurately capture different subdivision forms of fundus lesions in a shorter time and obtain high-quality images.

2.Diagram of the lesion

-It can be used for auxiliary diagnosis of 16 main fundus diseases.

Specification

ITEM	HSP-OCT1000T	HSP-OCT1000S	HSP-OCT1000M
Type	SD-OCT	SD-OCT	SD-OCT
Light energy (cornea)	≤750μW	≤750μW	≤750μW
Measurement characteristic	Axial resolution：5μmLateral resolution：20μm	Axial resolution：5μm Lateral resolution：20μm	Axial resolution：5μm Lateral resolution：20μm
Scanning characteristic	Maximum A-scan speed：≥20000times/second Scanning depth：2.3mm Maximum scanning range：12mm*9mm	Maximum A-scan speed：≥80000times/second Scanning depth：2.3mm Maximum scanning range：12mm*9mm	Maximum A-scan speed：≥55000times/second Scanning depth：2.3mm Maximum scanning range：12mm*9mm
Light Source characteristics	Central wavelength：840nm Optical power：≤750μW Refractive compensation range：-20D~+25D	Central wavelength：840nm Optical power：≤750μW Refractive compensation range：-20D~+25D	Central wavelength：840nm Optical power：≤750μW Refractive compensation range：-20D~+25D
Scanning mode	5 kinds Large field of view: HD straight line, radiation six lines, local area: macula, optic disc	7 kinds Large field of view: HD straight line, radiation six lines, area Local area: macula, optic disc Front section: HD straight line, radiation six lines	7 kinds Large field of view: HD straight line, radiation six lines, area Local area: macula, optic disc Front section: HD straight line, radiation six lines
Scanning range	12mm*9mm Complete the image acquisition of macula + optic disc at one time	12mm*9mm Complete the image acquisition of macula + optic disc at one time	12mm*9mm Complete the image acquisition of macula + optic disc at one time
Single line scan length	12mm One scan macula+ optic disc	12mm (Anterior segment 6mm)	12mm (Anterior segment 6mm)
Pupil requirement	2mm	2mm	2mm
Automatic pupil orientation	√	√	√
Automatic pupil compensation	√	√	√
Fundus image	Full pixel imaging technology based on high scanning speed	Full pixel imaging technology based on high scanning speed	Full pixel imaging technology based on high scanning speed
Focusing mode	Fully automatic	Fully automatic	Fully automatic
Software analysis	Large field analysis Simultaneously covering macula and optic disc a total of 14 itemsLocal analysis – Optic disc 8 items Optic disc 66mm fundus image Cup-disc ratio Six lines Horizontal C/D Ratio Vertical C/D Ratio Optic cup area RNFL ring sweep thickness curve RNFL thickness topographic map TSNI thickness grid of nerve fiber layerLocal analysis – macular 8 items Macular 66mm fundus map Average thickness of the inner retina Average retinal thickness Macular fovea thickness ILM-RPE thickness topographic map ILM-RPE thickness grid RNFL thickness topographic map Retinal volume gridAnterior segment analysis (peripherals required)	Large field analysis Simultaneously covering macula and optic disc a total of 14 itemsLocal analysis – Optic disc 8 items Optic disc 66mm fundus image Cup-disc ratio Six lines Horizontal C/D Ratio Vertical C/D Ratio Optic cup area RNFL ring sweep thickness curve RNFL thickness topographic map TSNI thickness grid of nerve fiber layerLocal analysis – macular 8 items Macular 66mm fundus map Average thickness of the inner retina Average retinal thickness Macular fovea thickness ILM-RPE thickness topographic map ILM-RPE thickness grid RNFL thickness topographic map Retinal volume gridAnterior segment analysis (peripherals required)	Large field analysis Simultaneously covering macula and optic disc a total of 14 itemsLocal analysis – Optic disc 8 items Optic disc 66mm fundus image Cup-disc ratio Six lines Horizontal C/D Ratio Vertical C/D Ratio Optic cup area RNFL ring sweep thickness curve RNFL thickness topographic map TSNI thickness grid of nerve fiber layerLocal analysis – macular 8 items Macular 66mm fundus map Average thickness of the inner retina Average retinal thickness Macular fovea thickness ILM-RPE thickness topographic map ILM-RPE thickness grid RNFL thickness topographic map Retinal volume gridAnterior segment analysis (peripherals required)
User profile	√	√	√
Integrated artificial intelligence	It can assist in thediagnosis of 16 majorophthalmic diseasesaccurately identify,segment andautomatically label thefocal area	It can assist in thediagnosis of 16 majorophthalmic diseases,accurately identify,segment andautomatically label thefocal area	It can assist in thediagnosis of 16 majorophthalmic diseases,accurately identify,segment andautomatically label the focal area
DICOM interface function	√	√	√
Mode of operation	Fully automatic, manual operation	Fully automatic, manual operation	Fully automatic, manual operation
