Model: FLOW
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: FLOW
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

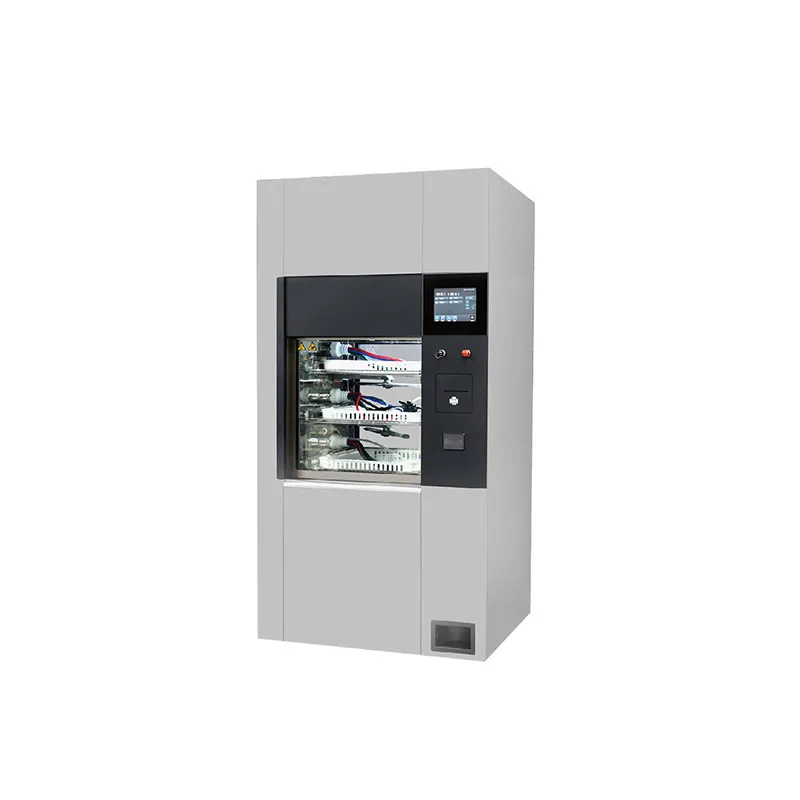

-The SHINVA FLOW Flexible Endoscope Washer-Disinfector is a fully automated system designed to clean, disinfect and dry flexible endoscopes efficiently and safely. Each endoscope channel is processed independently, combining high-flow spray cleaning, internal perfusion, chemical and thermal disinfection, and optional drying.
-This washer-disinfector is ideal for hospitals, endoscopy centers and outpatient clinics, helping facilities improve turnaround, reduce manual handling, and maintain strict hygiene standards. Its intelligent monitoring system and automated chemical management ensure reliable, traceable reprocessing every cycle.
Main Features
1.Independent Channel Cleaning
-Each endoscope is cleaned, disinfected, and dried separately for optimal safety and efficiency.
2.Dual Disinfection Modes
-Supports both thermal and chemical disinfection to comply with different infection control protocols.
3.Deep Lumen Perfusion
-Ensures thorough cleaning of all internal channels, reducing the risk of biofilm formation.
4.Automated Drying
-Optional hot-air or alcohol-assisted drying minimizes residual moisture.
5.Smart Interface & Monitoring
-Touchscreen display shows real-time cycle status, flow rates, and alerts.
6.Automatic Chemical Management
-Accurately meters and discharges cleaning agents to minimize cross-contamination.
7.Easy Loading & Operation
-Lifting door and removable trays simplify loading while maintaining hygienic separation.
8.Safety & Alarm Systems
-Monitors flow, temperature, door status, and alerts operators in case of irregularities.
9.Flexible Installation
-Built-in heating and cooling allow installation without external hot water or complex plumbing.
Specification
| Technical Parameter | FL0W-A-200D | FL0W-A-200S |
| Dimension (LxWxH)mm | 700x780x1850 | 990x760x2020 |
| Weight/Kg | 300 | 400 |
| Water consumption/step | 15L | 15L |
| Power supply | 380V/50HZ | 380V/50HZ |
| Input capacity | 13.5kVA | 18.5kVA |
| Water Pressure MPa | 0.2-0.5 | 0.2-0.5 |
| Water source hardness | Calcium carbonate concentration < 120mg/L | Calcium carbonate concentration < 120mg/L |
| Water source PH Value | 6.5-9 | 6.5-9 |
| Drainage Type | With pump | With pump |
