Model: HSP-YC130L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YC130L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

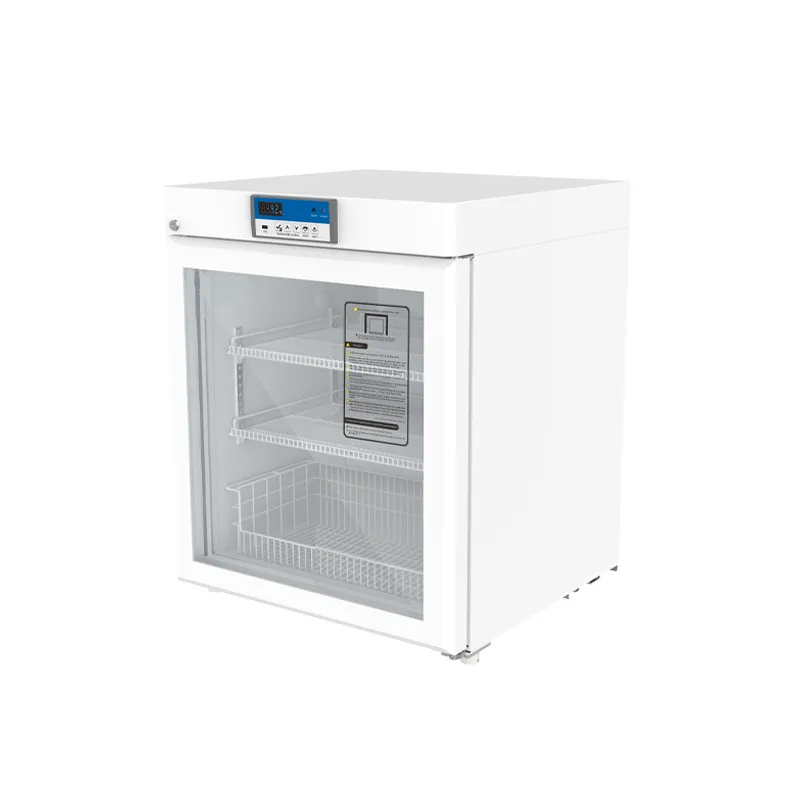

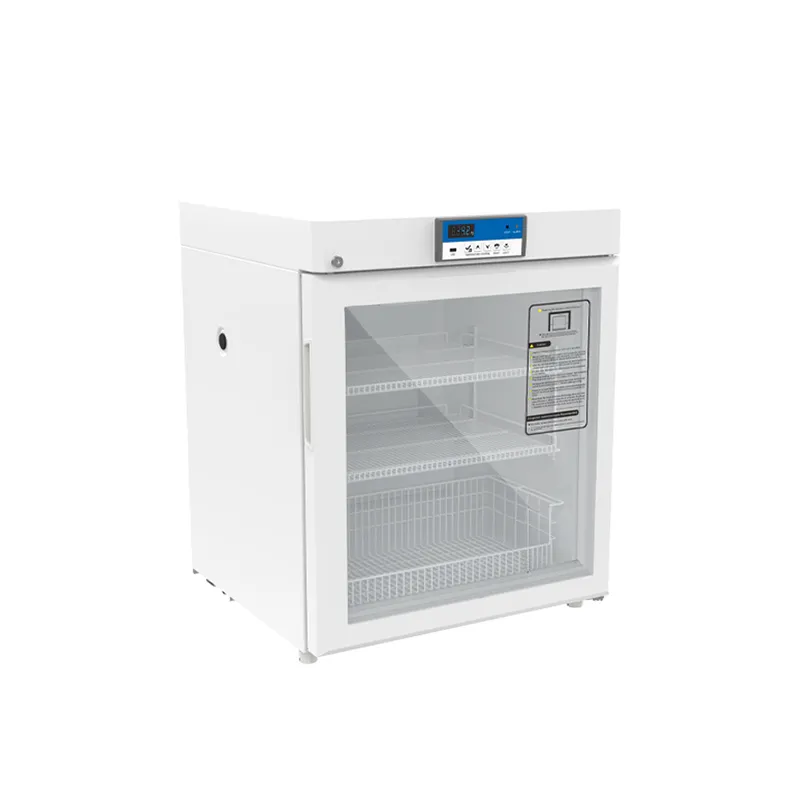

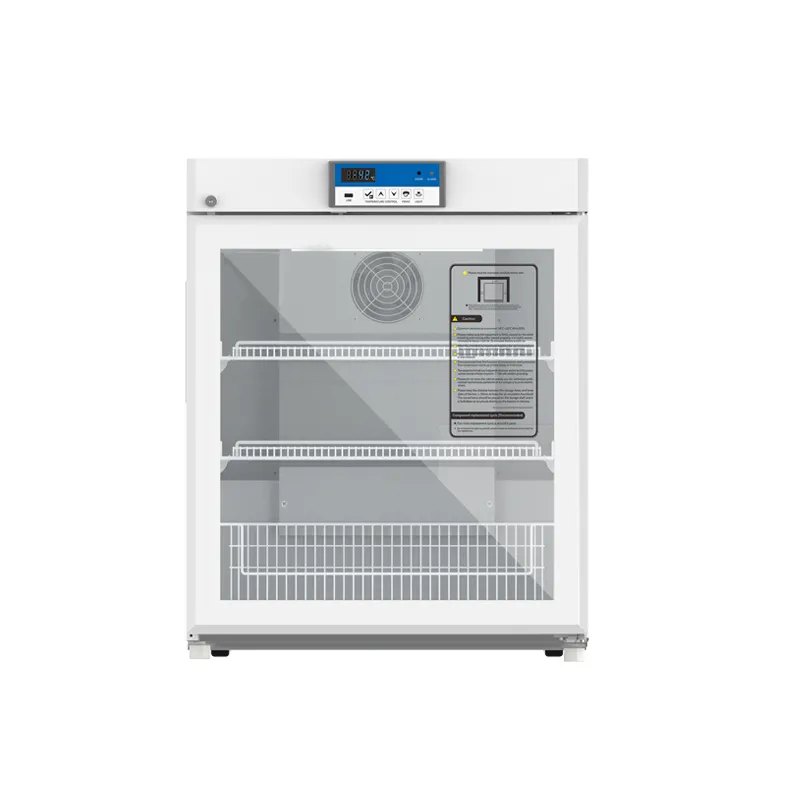

The HSP-YC130L Undercounter Pharmacy Vaccine Refrigerator is a compact yet reliable medical refrigeration solution designed for secure storage of vaccines, pharmaceuticals, biological samples and laboratory reagents. Built for environments where space is limited, it combines accurate temperature control, stable airflow and smart safety protection to maintain a consistent cold chain. This unit is perfect for clinics, pharmacies, hospitals, laboratories, and healthcare facilities.
Main Features
-Precise 2℃–8℃ temperature range with a digital microprocessor controller and high‑resolution display (0.1℃) for consistent performance
-Uniform forced‑air cooling ensures stable temperature distribution and frost‑free operation
-Intelligent audible and visual alarm system alerts for high/low temperature, door ajar, power failure, and sensor errors
-Undercounter design optimized for space‑saving installation under worktops or counters
-Lockable solid door for enhanced security of stored products
-USB data logging for automated temperature recording and traceability
-Adjustable PVC-coated wire shelves for flexible organization of items
-LED interior lighting for easy access and visibility
-Energy efficient and eco-friendly design with R600a refrigerant
Specification
| 2~8℃ Pharmacy Refrigerator | |
| Model | HSP-YC130L |
| Cabinet type | Upright |
| Capacity(L) | 130 |
| Internal size(W*D*H)mm | 554*510*588 |
| External size(W*D*H)mm | 650*625*810 |
| Package size(W*D*H)mm | 720*703*880 |
| NW/GW(Kgs) | 51/56 |
| Performance | |
| Temperature range | 2~8℃ |
| Ambient temperature | 16-32℃ |
| Cooling performance | 5℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Refrigerant | R600a |
| Insulation thickness(mm) | L/R:48,B:50 |
| Construction | |
| External material | PCM |
| Inner material | Aumlnum plate with spraying/Stainless steel(optional stainless steel) |
| Shelves | 3 (coated steel wired shelf) |
| Door lock with key | Yes |
| Lighting | LED |
| Access port | 1pc. Ø 25 mm |
| Casters | 2+2( leveling feet) |
| Data logging/Interval/Memory capacity | USB/Record every 10 minutes / 100,000data |
| Door with heater | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure |
| Accessories | |
| Standard | RS485, Remote alarm contact, Backup battery |
