Model: HSP-YC395EL
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YC395EL
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

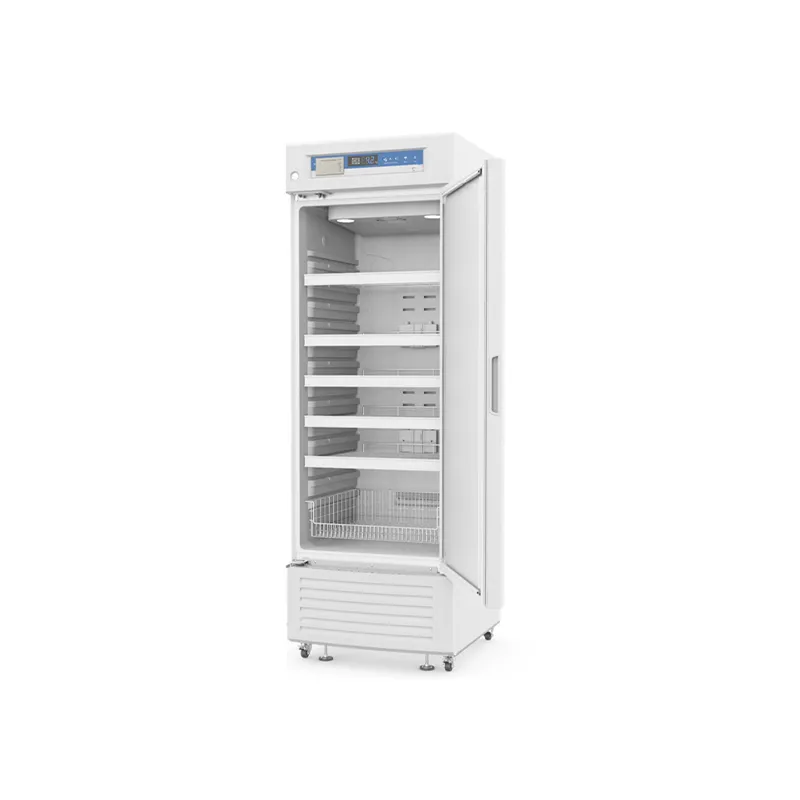

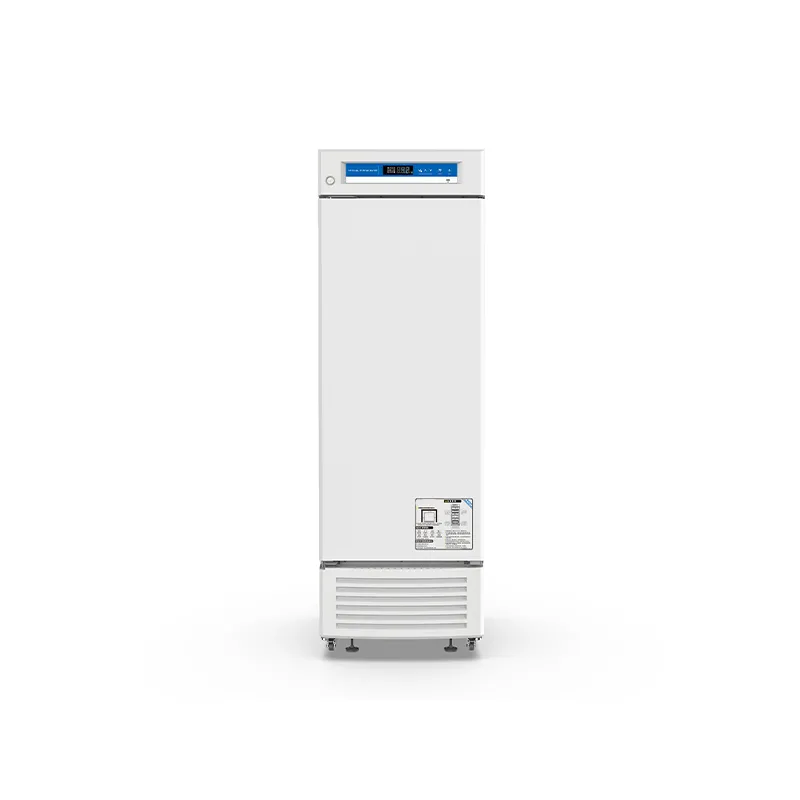

The HSP-YC395EL Pharmacy & Vaccine Refrigerator is a highperformance medical refrigeration unit designed for reliable storage of temperaturesensitive pharmaceuticals, vaccines, reagents, and medical supplies within a controlled 2℃–8℃ range. It combines precise temperature management, uniform cold air circulation, and advanced alarm systems to ensure optimal conditions for critical clinical, pharmacy, and laboratory applications.
Main Features
-Accurate 2℃–8℃ temperature control with seven highprecision sensors to minimize fluctuation.
-Efficient multiduct aircooling system with vortex cooling and finned evaporator for fast, uniform cooling.
-395 L interior capacity with 6 + 1 adjustable wire shelves for flexible storage layouts.
-Digital microprocessor controller with 0.1℃ resolution display for clear monitoring.
-Intelligent audible and visible alarm system for high/low temperature, power failure, door ajar, sensor error, low battery, and communication faults.
-USB data export interface for automatic temperature data logging and longterm traceability.
-Electricheated door to prevent condensation and maintain internal visibility.
-LED interior lighting and PVCcoated steel wire shelves for improved usability and easy cleaning.
-CFCfree, environmentally friendly refrigerant and automatic defrost design.
Specification
| Model | HSP-YC395EL |
| Capacity(L) | 395 |
| Internal size(W*D*H)mm | 580*533*1352 |
| External size(W*D*H)mm | 650*652*1992 |
| Package size(W*D*H)mm | 717*732*2035 |
| NW/GW(Kgs) | 95/145(wood packing) |
| Performance | |
| Temperature range | 2~8℃ |
| Ambient temperature | 16~32℃ |
| Cooling performance | 5℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Refrigerant | R600a |
| Insulation thickness(mm) | R/L:35,B:52 |
| Construction | |
| External material | PCM |
| Inner material | HIPS |
| Shelves | 6+1 (coated steel wired shelf) |
| Door lock with key | Yes |
| Lighting | LED |
| Access port | 1pc. Ø 25 mm |
| Casters | 4+(2 leveling feet) |
| Data logging/Interval/Memory capacity | USB/Record every 10 minutes/100,000data |
| Door with heater | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure, Low battery |
| System | Sensor error, Door ajar, Built-in datalogger USB Failure, Communication failure, Remote alarm |
| Options Accessory | |
| Standard | RS485, Remote alarm contact, Backup battery |
