Model: HSP-YC315L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YC315L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

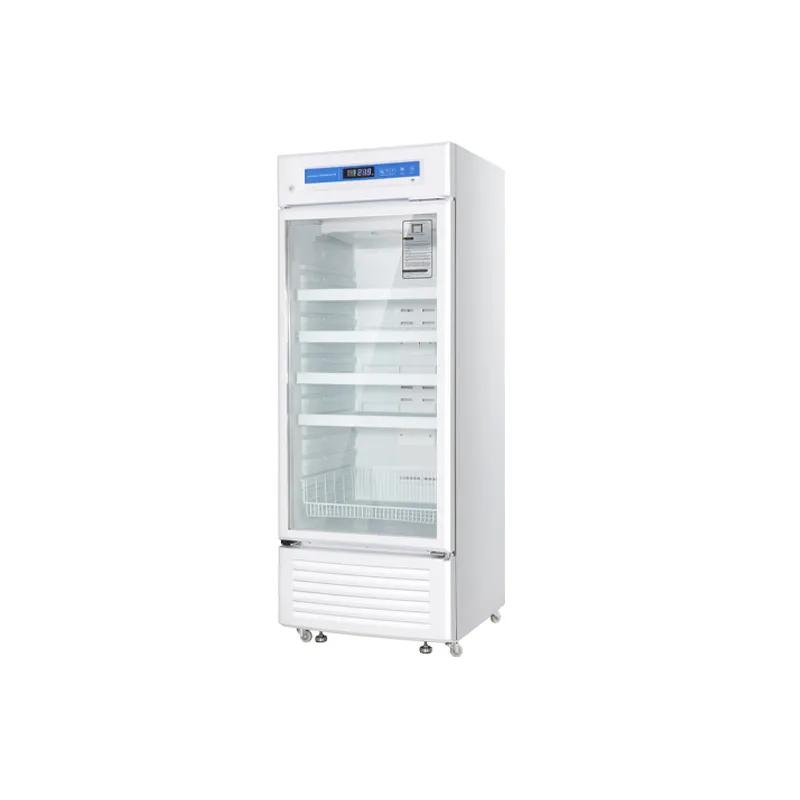

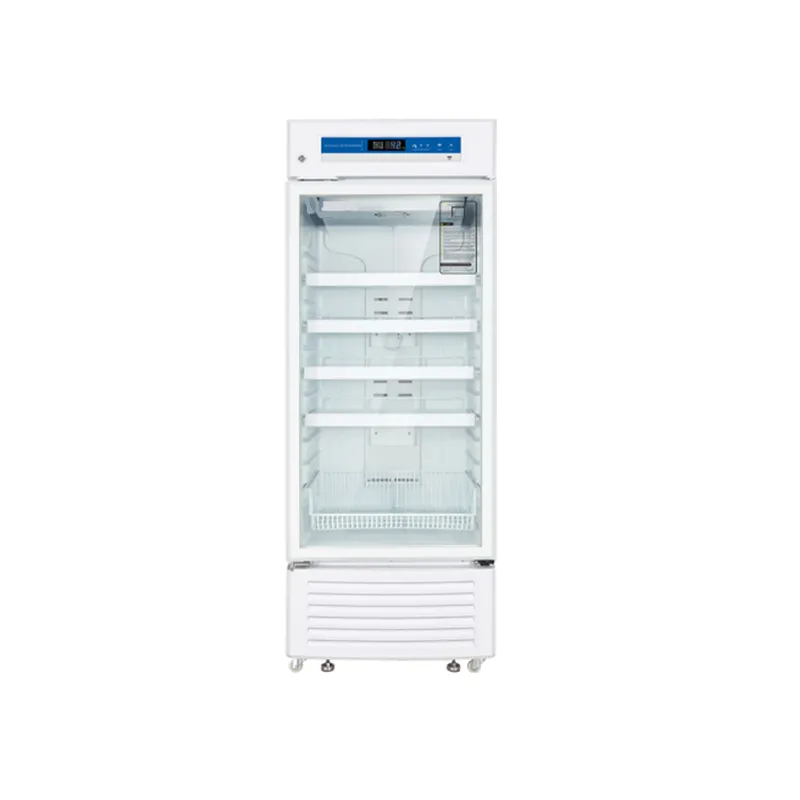

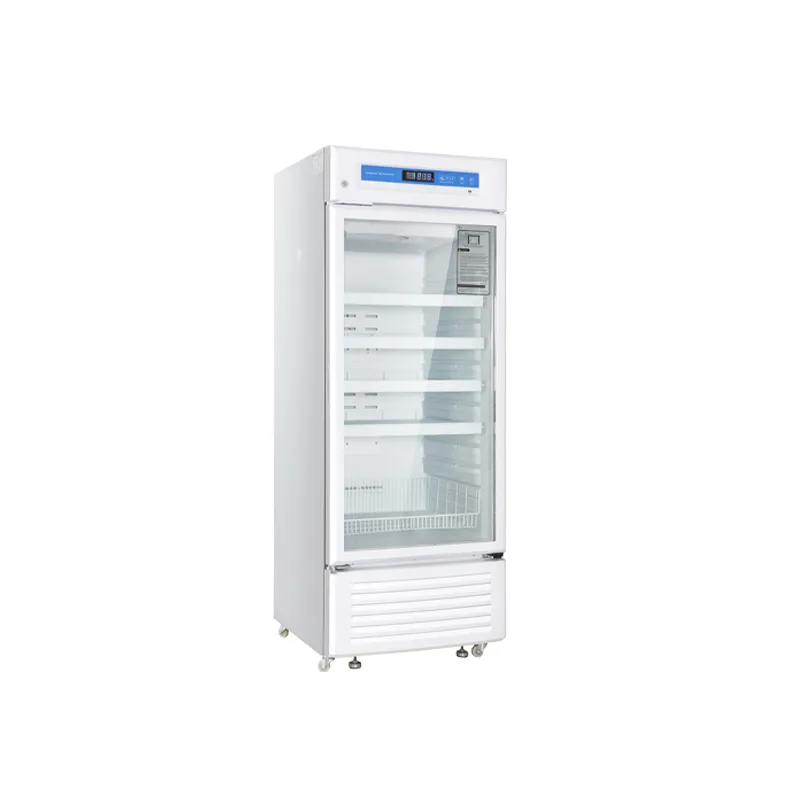

The HSP-YC315L Pharmacy Refrigerator is a premium 2℃–8℃ medical storage solution designed for secure and stable refrigeration of pharmaceuticals, vaccines, reagents, and other sensitive lab materials. It features advanced air-cooling technology, high-precision temperature control, and a smart alarm system, making it ideal for pharmacies, medical clinics, hospitals, laboratories, and research institutions.
Main Features
-Accurate 2℃–8℃ temperature range with multi-duct air-cooling for uniform internal conditions.
-High-precision control system with seven sensors to minimize temperature fluctuation.
-Digital display with 0.1℃ resolution for clear monitoring.
-Automatic defrost and energy-efficient design for reliable daily operation.
-Intelligent audible and visual alarms for high/low temperature, power failure, door ajar, sensor error, and communication issues.
-Anti-condensation glass door with electric heating for improved visibility and reduced moisture.
-USB data logging with export for long-term temperature records and compliance.
-5 PVC-coated steel wire shelves with tag cards for organized storage and easy cleaning.
-Environmentally friendly refrigerant (R600a) with improved energy performance.
Specification
| 2~8℃ Pharmacy Refrigerator | |
| Model | HSP-YC315L |
| Cabinet type | Upright |
| Capacity(L) | 315 |
| Internal size(W*D*H)mm | 580*533*1122 |
| External size(W*D*H)mm | 650*673*1762 |
| Package size(W*D*H)mm | 717*732*1815 |
| NW/GW(Kgs) | 87/99 |
| Performance | |
| Temperature range | 2~8℃ |
| Ambient temperature | 16-32℃ |
| Cooling performance | 5℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display, all system components have ENGLISH as interface language |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Refrigerant | Uses refrigerant R600a, free from HCFCs and CFCs and Feron |
| Insulation thickness(mm) | L/R:35,B:52 |
| Construction | |
| External material | PCM, the coating is anti-corrosion |
| Inner material | High impact polystyrene (HIPS), the coating is anti-corrosion |
| Shelves | 4+1(coated steel wired shelf/drawers) |
| Door lock with key | THe door can be installed to open from either the right or left side, the door is sealed. |
| Padlock | Yes |
| Lighting | LED (Internal light spare Qty:1) |
| Access port | 1pc. Ø 25 mm |
| Casters | 4+(2 Equipped with 4 wheels and 2 adjustable feet and lockable casters) |
| Data logging/Interval/Memory capacity | USB/Record every 10 minutes / 12 months |
| Door with heater | Glass door with heating system to prevent condensation |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature, Condenser overheating |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, Built-in USB datalogger Failure, Communication failure |
| Accessories | |
| Standard | RS485, Remote alarm contact, Backup battery( can hold 8 hours display and alarm) |
| Options | Printer |
| Electrical | |
| Power Supply(V/HZ) | 220-240~/50,power switch protections against overvoltage and overcurrent |
| Rated Power (W) | 280 |
| Power consumption(KWh/24h) | 3.55 |
| Rated Current (A) | 1.77 |
