Model: HSP-YC1015L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YC1015L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

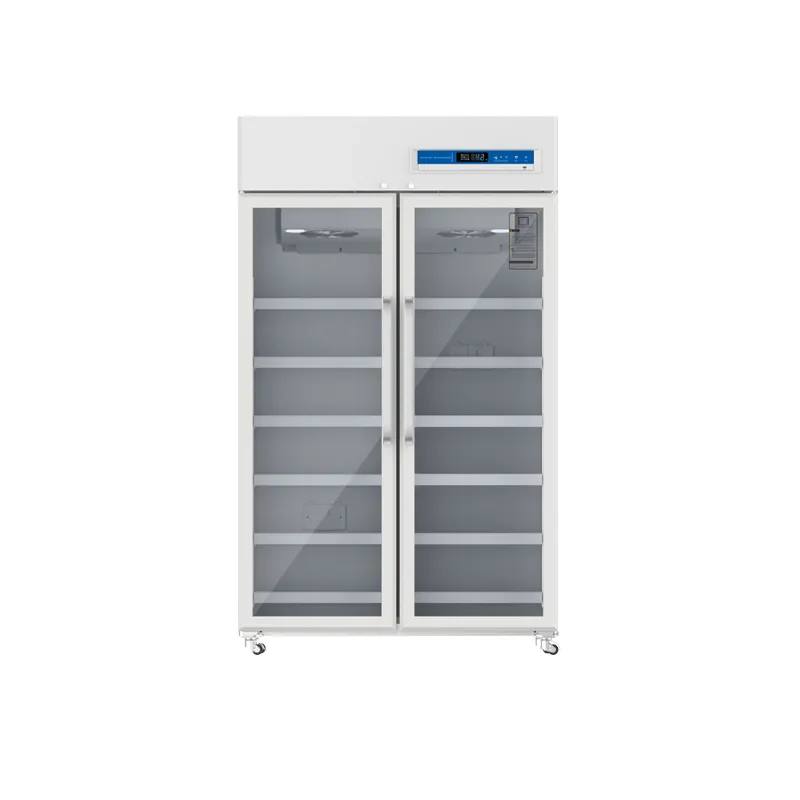

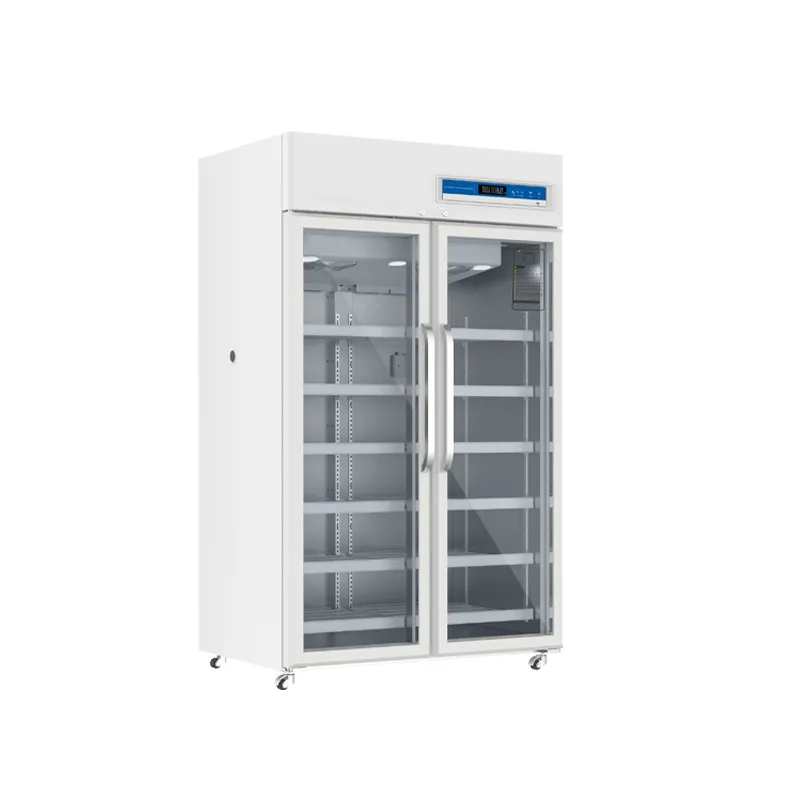

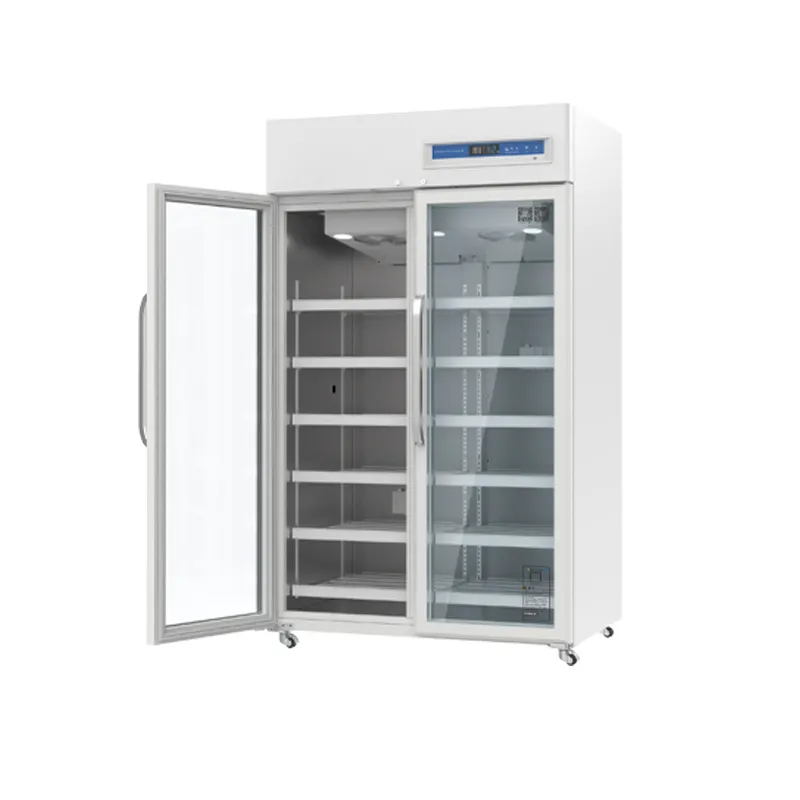

The HSP-YC1015L is a highcapacity 2℃–8℃ medical refrigerator engineered for dependable cold storage of vaccines, pharmaceuticals, reagents and other temperaturesensitive medical products. Designed for clinical, pharmacy, lab and healthcare environments, it delivers stable temperature performance and comprehensive safety features to protect your cold chain and ensure product integrity.
Main Features
-Accurate 2℃–8℃ temperature control with high‑precision microprocessor and digital display (0.1℃ resolution) for consistent cold chain compliance.
-Large 1015 L capacity with 12 adjustable wire shelves for efficient organization and maximum storage.
-Uniform air cooling system with multi‑duct vortex airflow and finned evaporator for even temperature distribution and frost‑free performance.
-Intelligent alarm system with audible and visual alerts for high/low temperature, power failure, door ajar, low battery and communication faults.
-Anti‑condensation glass door with electric heating and LOW‑E design for clear viewing and reduced moisture.
-USB data logging for automated temperature recording, long‑term traceability, and easy export for audit compliance.
-LED interior lighting and convenient test port for efficient monitoring and access.
-Environment‑friendly design with CFC‑free refrigerant (R290) and energy‑efficient components.
Specification
| 2~8℃ Pharmacy Refrigerator | |
| Model | HSP-YC1015L |
| Cabinet type | Upright |
| Capacity(L) | 1015 |
| Internal size(W*D*H)mm | 1070*670*1515 |
| External size(W*D*H)mm | 1180*852/900*1990 |
| Package size(W*D*H)mm | 1313*988*2168 |
| NW/GW(Kgs) | 223/297(wood packing) |
| Performance | |
| Temperature range | 2~8℃ |
| Ambient temperature | 16-32℃ |
| Cooling performance | 5℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost Mode | Automatic |
| Refrigerant | R290 |
| Insulation thickness(mm) | L/R/B:55 |
| Construction | |
| External material | PCM |
| Inner material | Aluminum plate with spraying (optional Stainless steel) |
| Shelves | 12 (coated steel wired shelf) |
| Door lock with key | Yes |
| Lighting | LED |
| Access port | 1pc. Ø 25 mm |
| Casters | 4+(2 with brake) |
| Data logging/Interval/Memory capacity | USB/Record every 10 minutes/100,000data |
| Door with heater | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature, Condenser overheating |
| Electrical | Power failure, Low battery |
| System | Sensor failure,Door ajar, Built-in datalogger USB Failure, Communication failure |
| Accessories | |
| Standard | RS485, Remote alarm contact, Backup battery |
