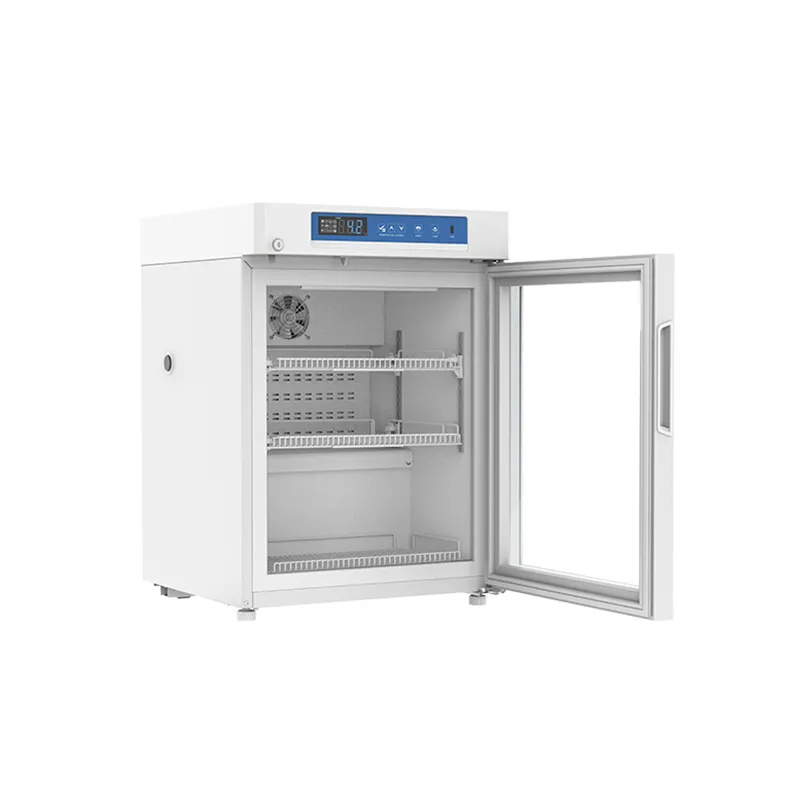

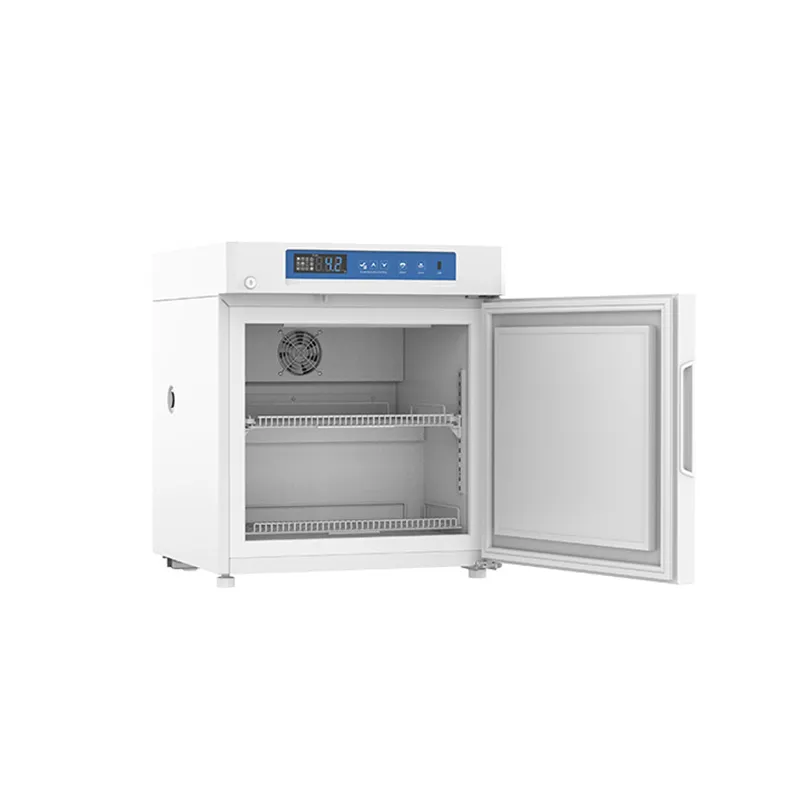

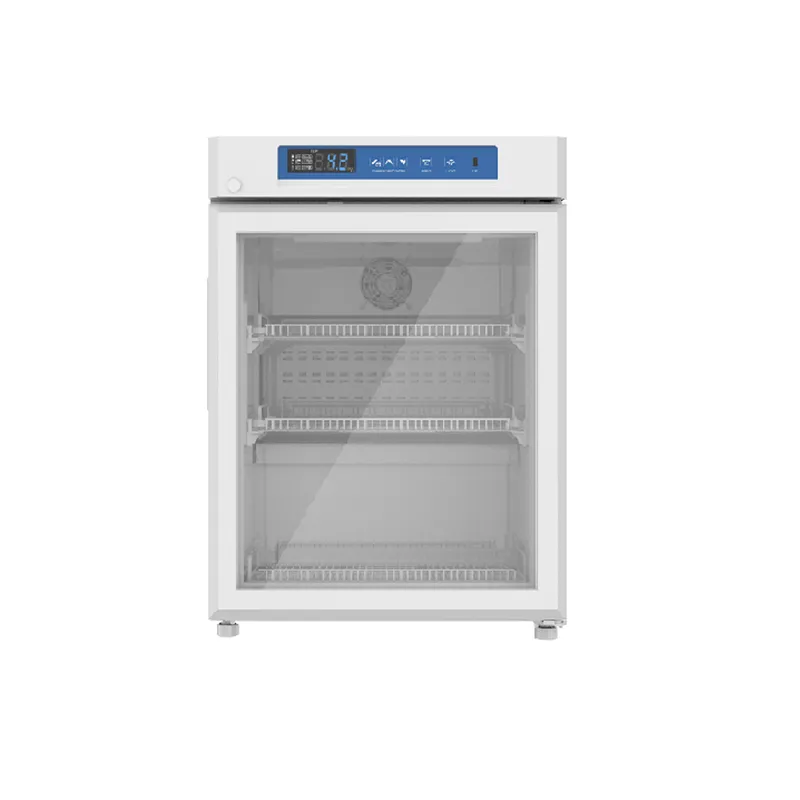

HSP-YC75L 2℃–8℃ Benchtop Undercounter Vaccine Refrigerator

Model: HSP-YC75L

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description
Download

The HSP-YC75L is a highly reliable 2℃–8℃ benchtop or undercounter medical refrigerator designed for secure storage of vaccines, pharmaceuticals, lab reagents, and biological samples. With precise temperature control, uniform airflow, and intelligent alarms, it ensures stable cold chain management in compact spaces, making it perfect for clinics, pharmacies, hospitals, and laboratories.

Main Features

-Precise 2℃–8℃ temperature control with digital display (0.1℃ resolution) for consistent cold storage

-Uniform forced-air cooling for even temperature distribution and frost-free operation

-Intelligent alarm system with audible/visual alerts for high/low temperature, door ajar, and power failure

-Anti-condensation tempered glass door with electric heating for clear interior visibility

-Compact 75 L capacity with adjustable PVC-coated wire shelves for flexible storage

-USB data logger for automatic temperature recording and traceability

-Lockable door to prevent unauthorized access

-LED interior lighting for easy viewing

-Eco-friendly design with R600a refrigerant and energy-efficient compressor

Specification

2~8℃ Pharmacy Refrigerator
Model	HSP-YC75L
Capacity(L）	75
Internal size(WDH)mm	444440536
External size(WDH)mm	542566764
Package size(WDH)mm	575617815
NW/GW(Kgs)	41/45(wood packing)
Performance
Temperature range	2~8℃
Ambient temperature	16-32℃
Cooling performance	5℃
Climate class	N
Controller	Microprocessor
Display	Digital display
Refrigeration
Compressor	1pc
Cooling method	Forced air cooling
Defrost mode	Automatic
Refrigerant	R600a
Insulation thickness(mm)	L/R:48,B:50
Construction
External material	PCM
Inner material	Aumlnum plate with spraying
Shelves	3 (coated steel wired shelf)
Door lock with key	Yes
Lighting	LED
Access port	1pc. Ø 25 mm
Casters	2+2( leveling feet）
Data logging/Interval/Memory capacity	USB/Record every 10 minutes/1000,000data
Door with heater	Yes
Backup battery	Yes
Alarm
Temperature	High/Low temperature, High ambient temperature
Electrical	Power failure, Low battery
System	Sensor failure, Door ajar, Built-in datalogger USB Failure, Communication failure
Accessories
Standard	RS485, Remote alarm contact

HSP-YC75L Pharmacy Refrigerator
