Model: HSP-YC55EL
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YC55EL
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

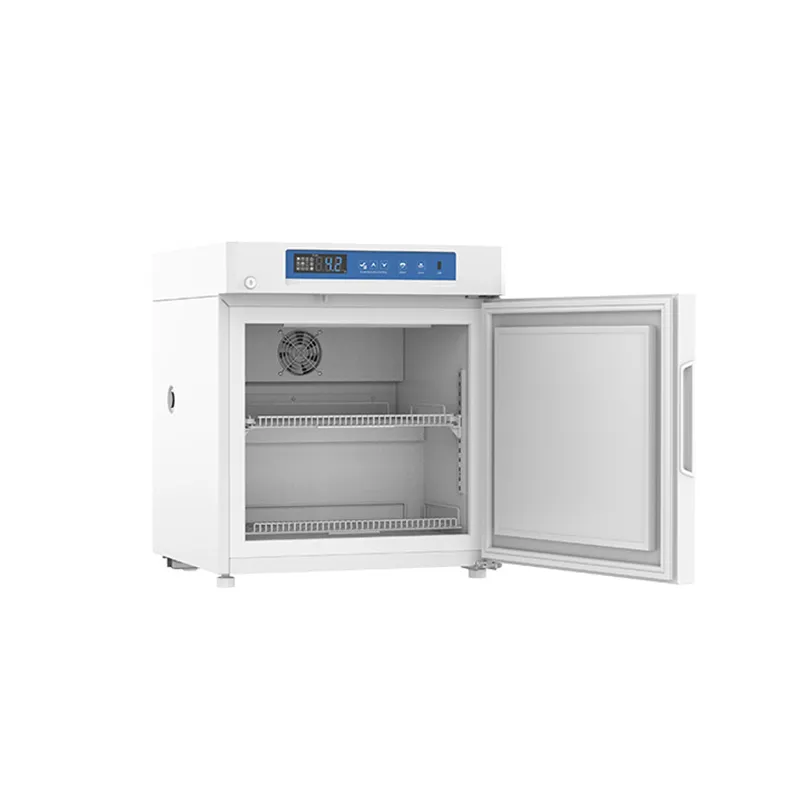

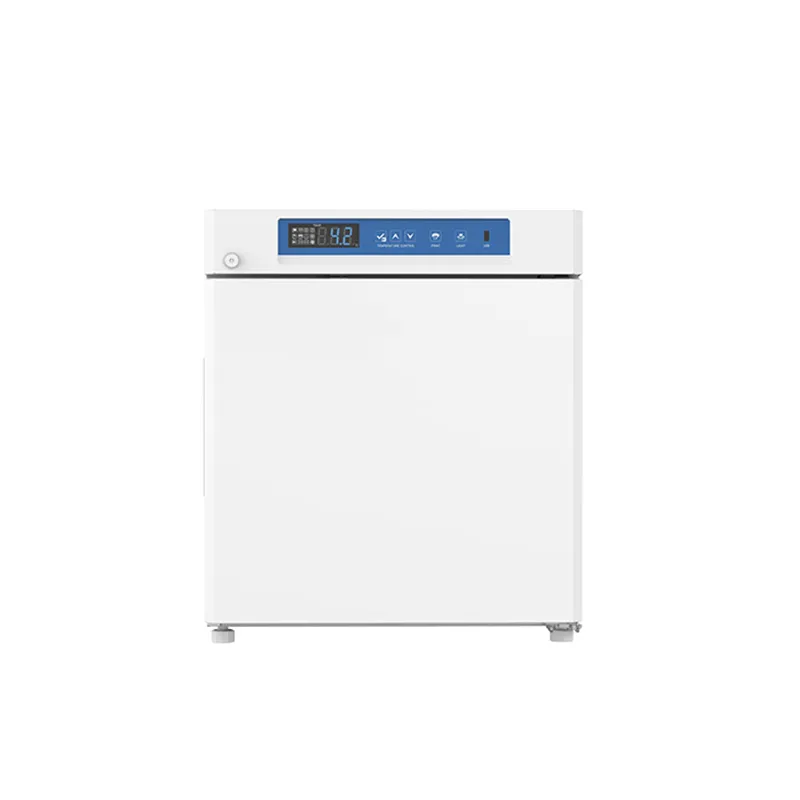

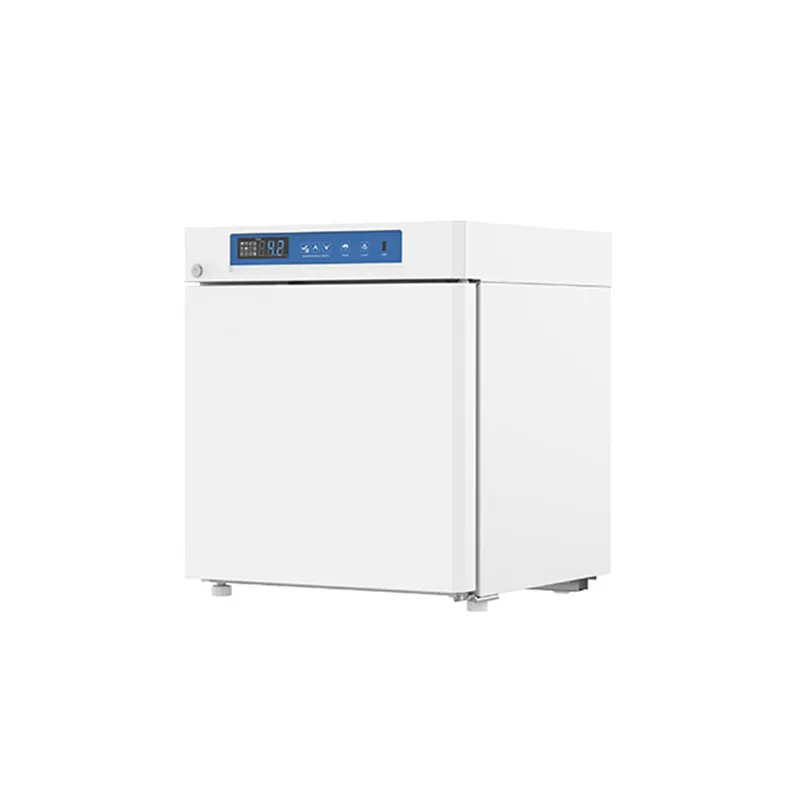

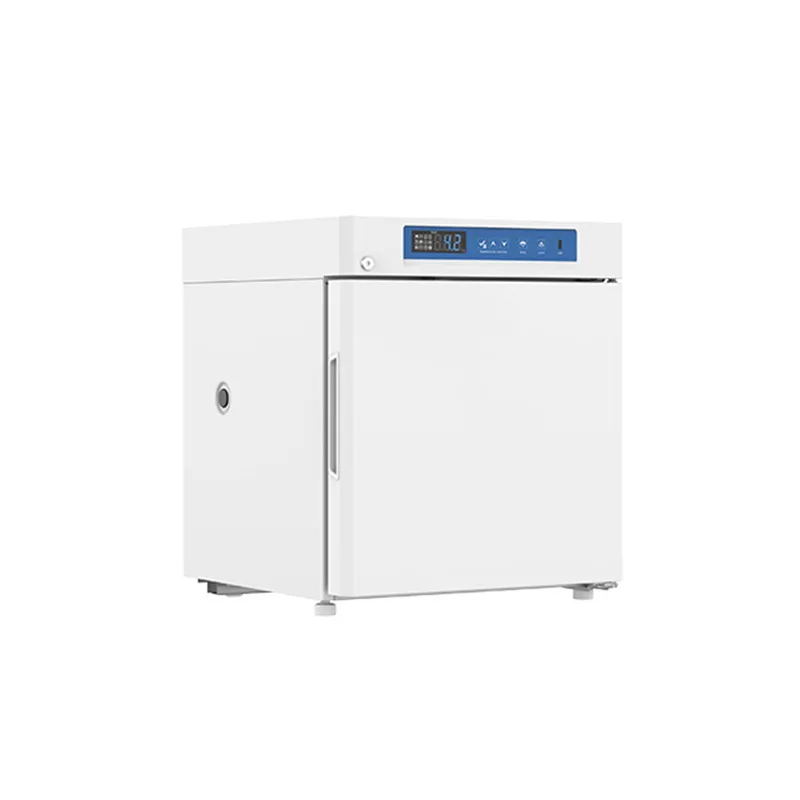

The HSP-YC55EL is a compact 2℃–8℃ benchtop or undercounter medical refrigerator designed for safe and reliable storage of vaccines, pharmaceuticals, biological samples and lab reagents in small spaces. Its precise temperature management and robust safety features provide consistent cold chain performance for pharmacies, clinics, laboratories, hospitals and pharmaceutical facilities.
Main Features
-Accurate 2℃–8℃ temperature control with high‑precision microprocessor and stable digital display (0.1℃ resolution) maintains reliable cold storage.
-Efficient air‑cooling system with automatic defrost and uniform temperature distribution.
-Audible and visual alarms for high/low temperature, power failure, sensor faults and door ajar to ensure product safety.
-Double layer foamed solid door with strong insulation for enhanced temperature retention.
-Built-in USB data logger for automated temperature recording and easy data export.
-Adjustable wire shelves customize storage layout to fit different products.
-Lockable front door to prevent unauthorized access.
-LED interior lighting for clear visibility and convenient operation.
-Eco‑friendly refrigerant and insulation for efficient energy‑saving operation.
Specification
| 2~8℃ Pharmacy Refrigerator | |
| Model | HSP-YC55EL |
| Capacity(L) | 55 |
| Internal size(W*D*H)mm | 444*440*404 |
| External size(W*D*H)mm | 542*565*632 |
| Package size(W*D*H)mm | 575*617*682 |
| NW/GW(Kgs) | 35/59(wood packing) |
| Performance | |
| Temperature range | 2~8℃ |
| Ambient temperature | 16-32℃ |
| Cooling performance | 5℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Forced air cooling |
| Defrost mode | Automatic |
| Refrigerant | R600a |
| Insulation thickness(mm) | L/R:48,B:50 |
| Construction | |
| External material | PCM |
| Inner material | Aumlnum plate with spraying/Stainless steel |
| Shelves | 2 (coated steel wired shelf) |
| Door lock with key | Yes |
| Lighting | LED |
| Access port | 1pc. Ø 25 mm |
| Casters | 2+2( leveling feet) |
| Data logging/Interval/Memory capacity | USB/Record every 10 minutes/12 months |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, Built-in datalogger |
| Standard accessories | |
| System | RS485, Remote alarm contact |
