Model: HSP-YC525L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YC525L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

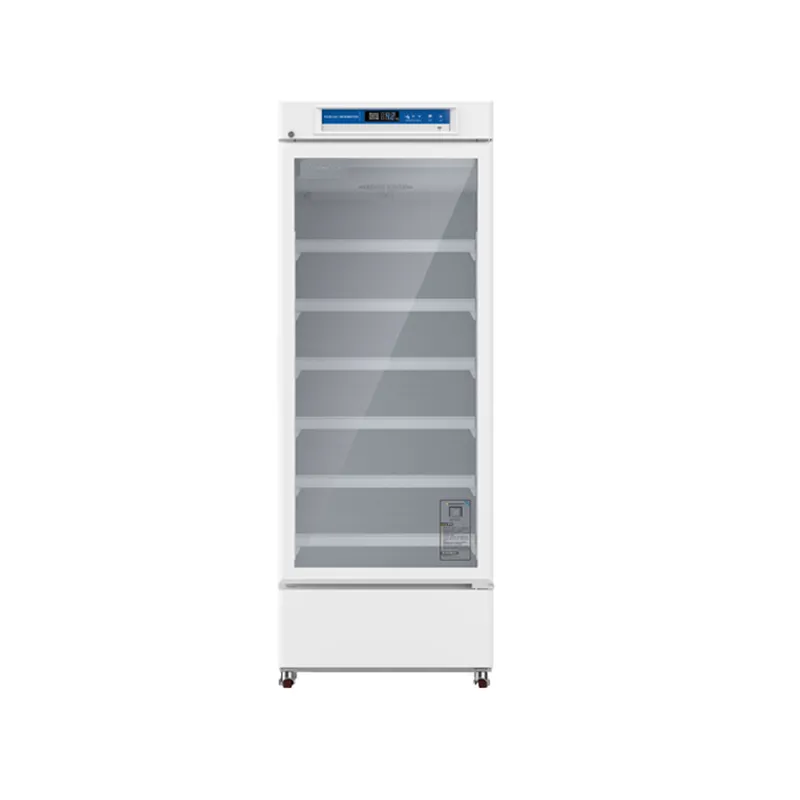

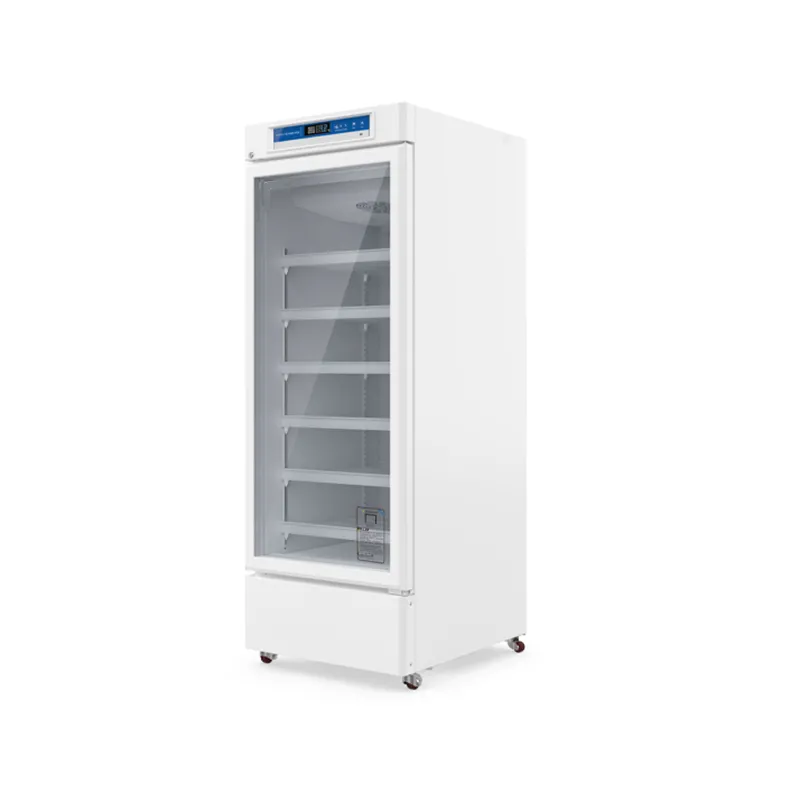

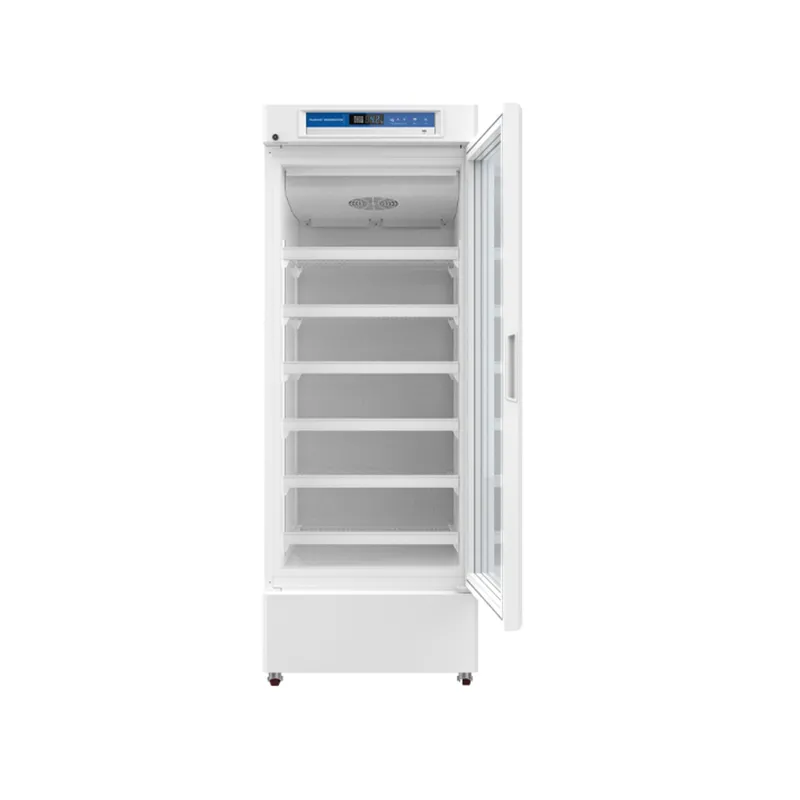

The HSP-YC525L is a reliable 2℃–8℃ medical refrigerator designed for secure storage of vaccines, pharmaceuticals, reagents, and other temperature-sensitive medical products. Featuring precise digital temperature control, uniform airflow, and intelligent alarms, it ensures consistent cold chain conditions and protects product integrity. Ideal for hospitals, pharmacies, clinics, laboratories, and research institutions.
Main Features
-Precise 2℃–8℃ temperature control with digital microprocessor and 0.1℃ resolution
-Uniform airflow system for rapid, frost-free cooling throughout the cabinet
-Advanced alarm system for high/low temperature, door ajar, power failure, and sensor faults
-Anti-condensation glass door with electric heating for clear visibility
-HSP-YC525L capacity with adjustable wire shelves for flexible, organized storage
-USB data logging for automated temperature record keeping
-LED interior lighting and test port for easy monitoring
-Energy-efficient, eco-friendly R290 refrigerant
Specification
| 2~8℃ Pharmacy Refrigerator | |
| Model | HSP-YC525L |
| Cabinet type | Upright |
| Capacity(L) | 525 |
| Internal size(W*D*H)mm | 610*685*1264 |
| External size(W*D*H)mm | 720*810*1961 |
| Package size(W*D*H)mm | 775*868*2130 |
| NW/GW(Kgs) | 141/178 |
| Performance | |
| Temperature range | 2~8℃ |
| Ambient temperature | 16~32℃ |
| Preset temperature | 5℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Refrigerant | R290 |
| Insulation thickness(mm) | L/R:55, B:55 |
| Construction | |
| PCM | PCM |
| Inner material | Aumlnum plate with spraying/Stainless steel (optional) |
| Shelves | 6 (coated steel wired shelf) |
| Door lock with key | Yes |
| Lighting | LED |
| Access port | 1pc. Ø 25 mm |
| Casters | 4 (2 casters with brake) |
| Data logging/Interval/Memory capacity | USB/Record every 10 minutes/100,000data |
| Door with heater | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature, Condenser overheating |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, Built-in USB datalogger Failure, Communication failure |
| Accessories | |
| Standard | RS485, Remote alarm contact, Backup battery |
