Model: HSP-YC400L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YC400L
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

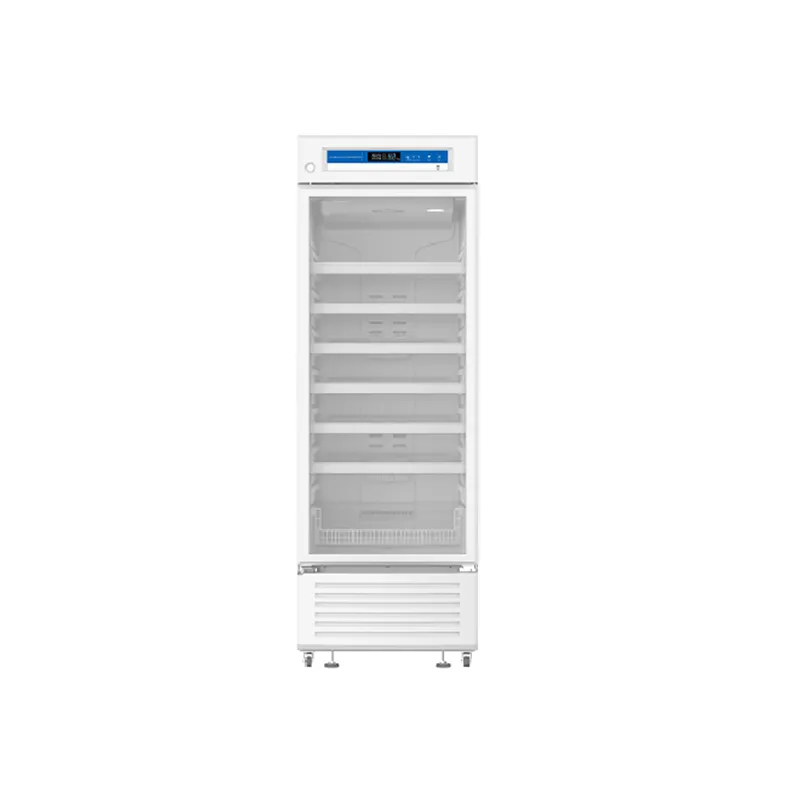

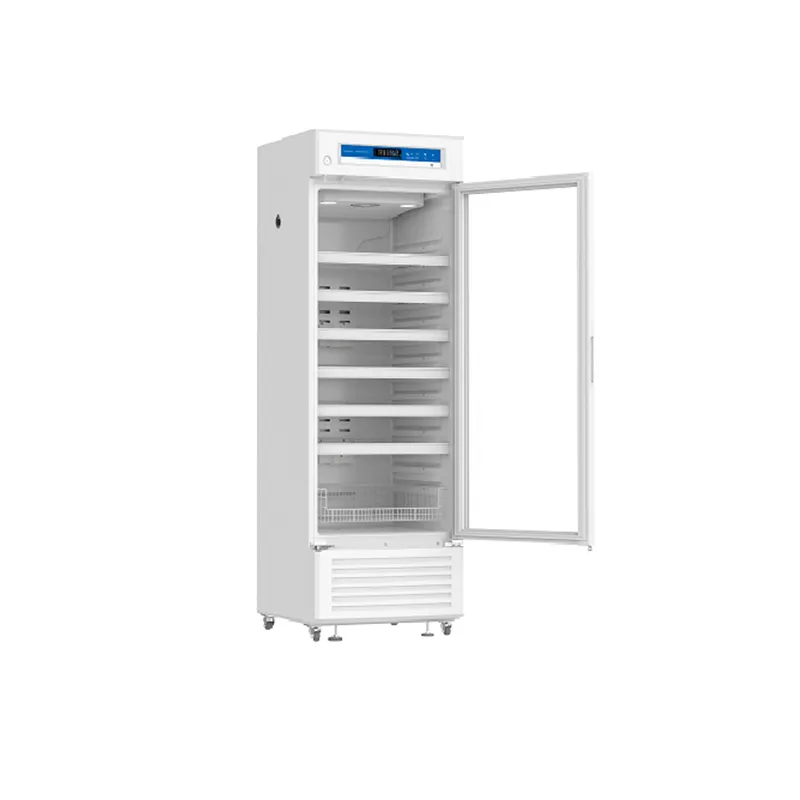

The HSP-YC400L Pharmacy & Medical Refrigerator is designed for reliable, stable storage of temperature-sensitive pharmaceuticals, vaccines, and laboratory materials. Featuring precise digital temperature control, uniform airflow, and intelligent alarm systems, it ensures that critical medical products are consistently maintained within a safe 2℃–8℃ range. Ideal for hospitals, pharmacies, clinics, and research laboratories.
Main Features
-Precise 2℃–8℃ temperature control with digital microprocessor and 0.1℃ display resolution
-Uniform cooling system with multi-duct airflow and frost-free operation
-Intelligent alarm system for high/low temperature, power failure, door ajar, and sensor faults
-Anti-condensation glass door with electric heating for clear visibility
-USB temperature data logging for traceable, long-term records
-400 L capacity with 6 adjustable PVC-coated steel shelves for organized storage
-Energy-efficient design using environmentally friendly R290 refrigerant
-LED interior lighting and convenient access for routine monitoring
Specification
| 2~8℃ Pharmacy Refrigerator | |
| Model | HSP-YC400L |
| Cabinet type | Upright |
| Capacity(L) | 400 |
| Internal size(W*D*H)mm | 604*520*1400 |
| External size(W*D*H)mm | 700*645*2010 |
| Package size(W*D*H)mm | 765*710*2074 |
| NW/GW(Kgs) | 116/127 |
| Performance | |
| Temperature range | 2~8℃ |
| Ambient temperature | 16~32℃ |
| Preset temperature | 5℃ |
| Climate class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling method | Air cooling |
| Defrost mode | Automatic |
| Refrigerant | R290 |
| Insulation thickness(mm) | L/R:48, B:50 |
| Construction | |
| External material | PCM |
| Inner material | Sprayed aumlnum plate /Stainless steel (optional) |
| Shelves | 6 (coated steel wired shelf) |
| Door lock with key | Yes |
| Lighting | LED |
| Access port | 1pc. Ø 25 mm |
| Casters | 4 (2 casters with brake) |
| Data logging/Interval/Memory capacity | USB/Record every 10 minutes/2 years |
| Door with heater | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature, Condenser overheating |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, Built-in USB datalogger Failure |
| Electrical | |
| Power Supply (V/HZ) | 220-240~50/60 |
| Power (W) | 458 |
| Power Consumption (KWh/24h) | 5.28 |
| Rated Current (A) | 2.23 |
| Accessories | |
| Standard | RS485, Remote alarm contact, Backup battery |
